Fig. 5 – Hoshizaki SELF-CONTAINED CRESCENT CUBER L1F015102 User Manual
Page 14

11

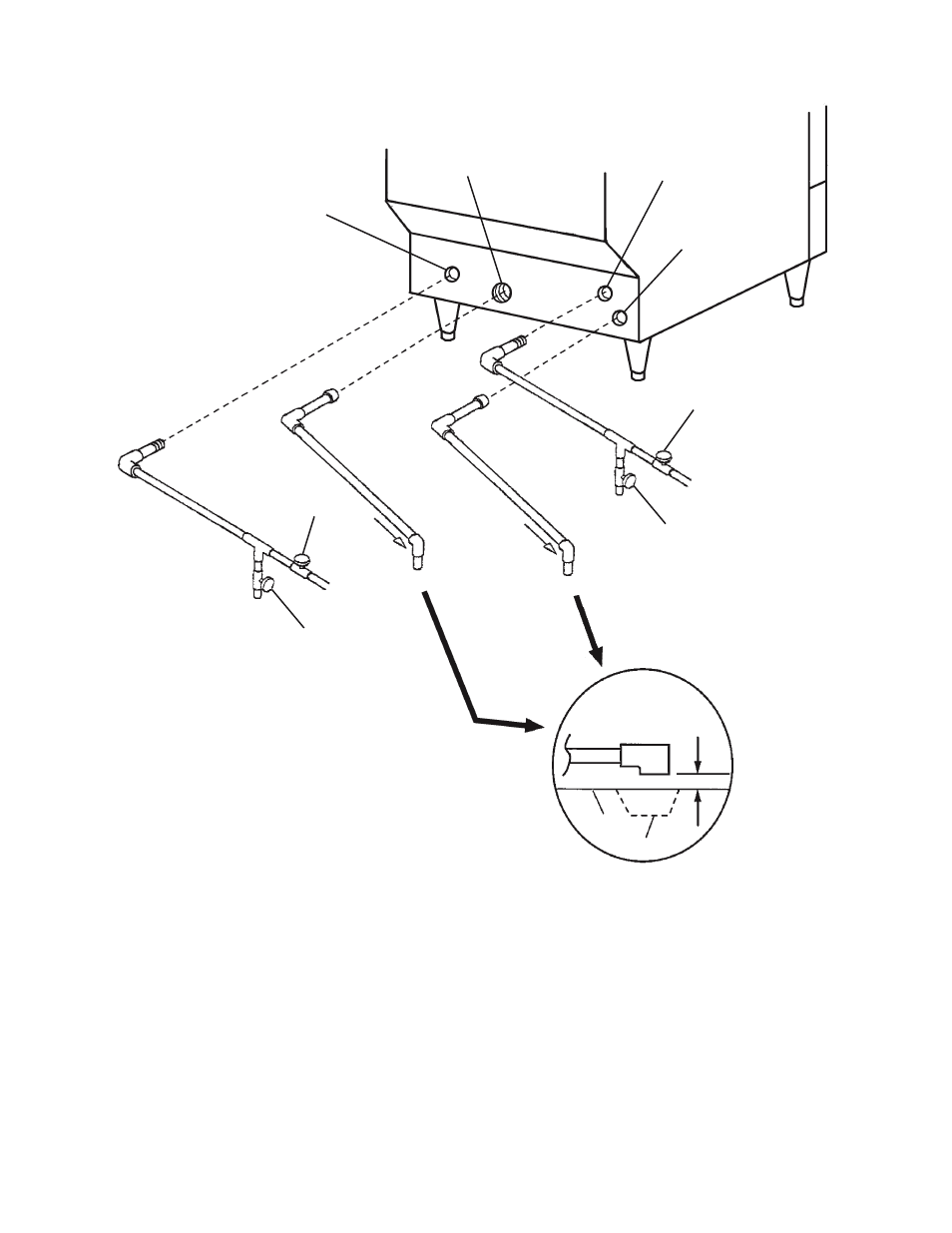

Water Supply Inlet
1/2” FPT
Drain Outlet
3/4” FPT
Fig. 5
KM-201BWH
KM-260BWH
Condenser Water
Outlet 1/2” FPT
Condenser Water
Inlet 1/2” FPT
Shut-off Valve
Drain Valve
Shut-off Valve
To approved
floor drain
Two-inch (5 cm)
air gap
Drain
Floor
Separate piping to approved drain.
Leave a two-inch (5 cm) vertical air
gap between the end of each pipe
and the drain.
Drain Valve
1/4” fall per foot
