Heat & Glo • Supreme-XTS, Grand-XTS • 349-901 Rev. G • 9/08
24
Log Set Assembly: LOGS-GXT
2 2
3 3
6 6 5 5
4 4
1 1

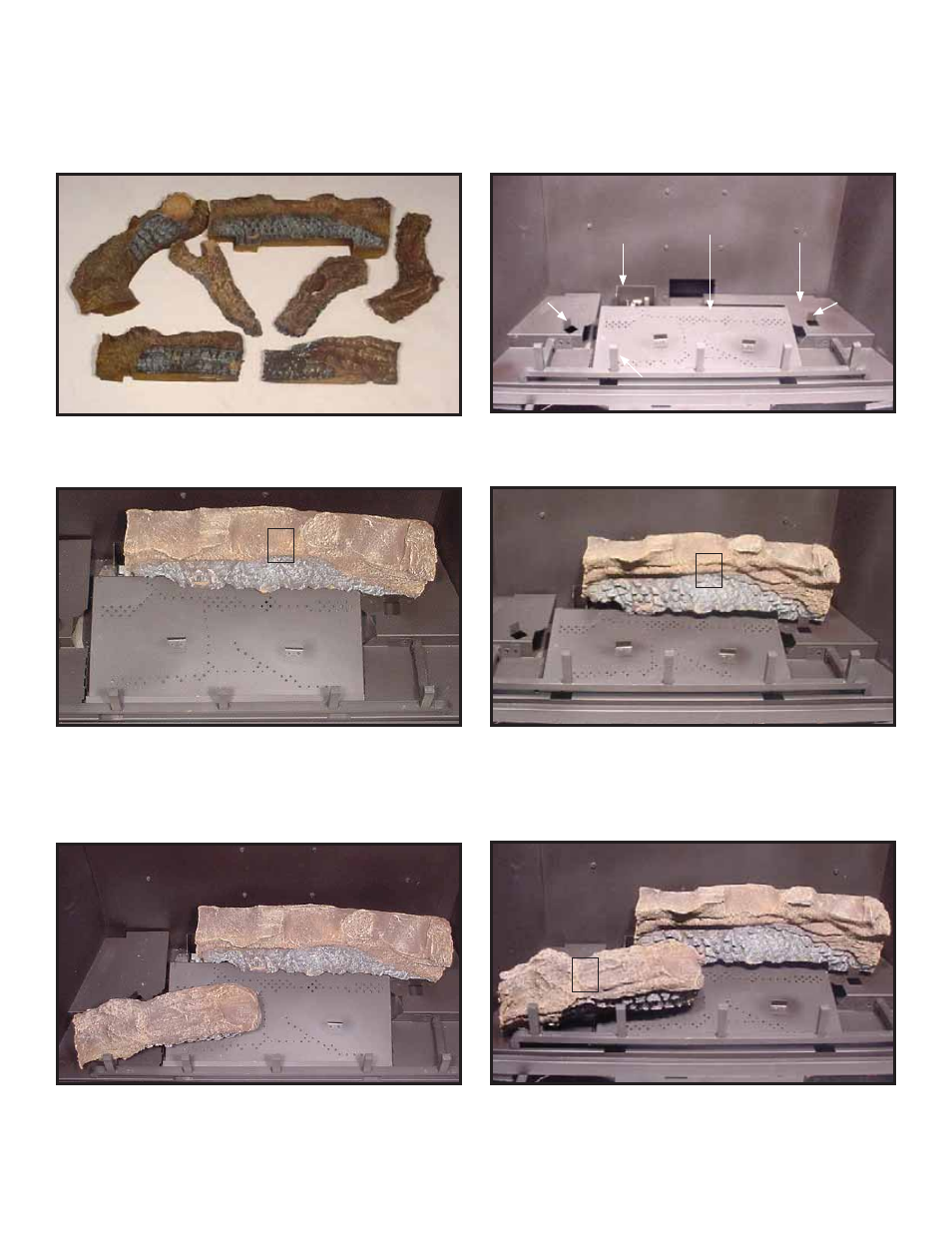

Carefully remove the logs from the packaging. CAUTION: Logs are fragile!
339-935 2/02
LOG #1 (SRV339-701): Place log #1 in the back on the insert. Locate the left end of the log over the center of the pilot and
the back side of the left end fl ush with the back of the pilot bracket. Pull the right end of the log forward until it touches the
tab in the base pan.
LOG #2 (SRV339-702): Position log #2 by locating its slot over the tab on the front left of the burner. The slot in the left
side of log #2 fi ts over the bar grate.
CAUTION: Logs are fragile! Carefully remove
the logs from the packaging.
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the following instructions.
PILOT PILOT
BRACKET BRACKET BASEPAN BASEPAN
BURNER BURNER
GRATE GRATE
7 7
TAB TAB TAB TAB
1 1
1 1
2 2
2 2
