17
Heat & Glo • Supreme-XTS, Grand-XTS • 349-901 Rev. G • 9/08
B. Junction Box Installation

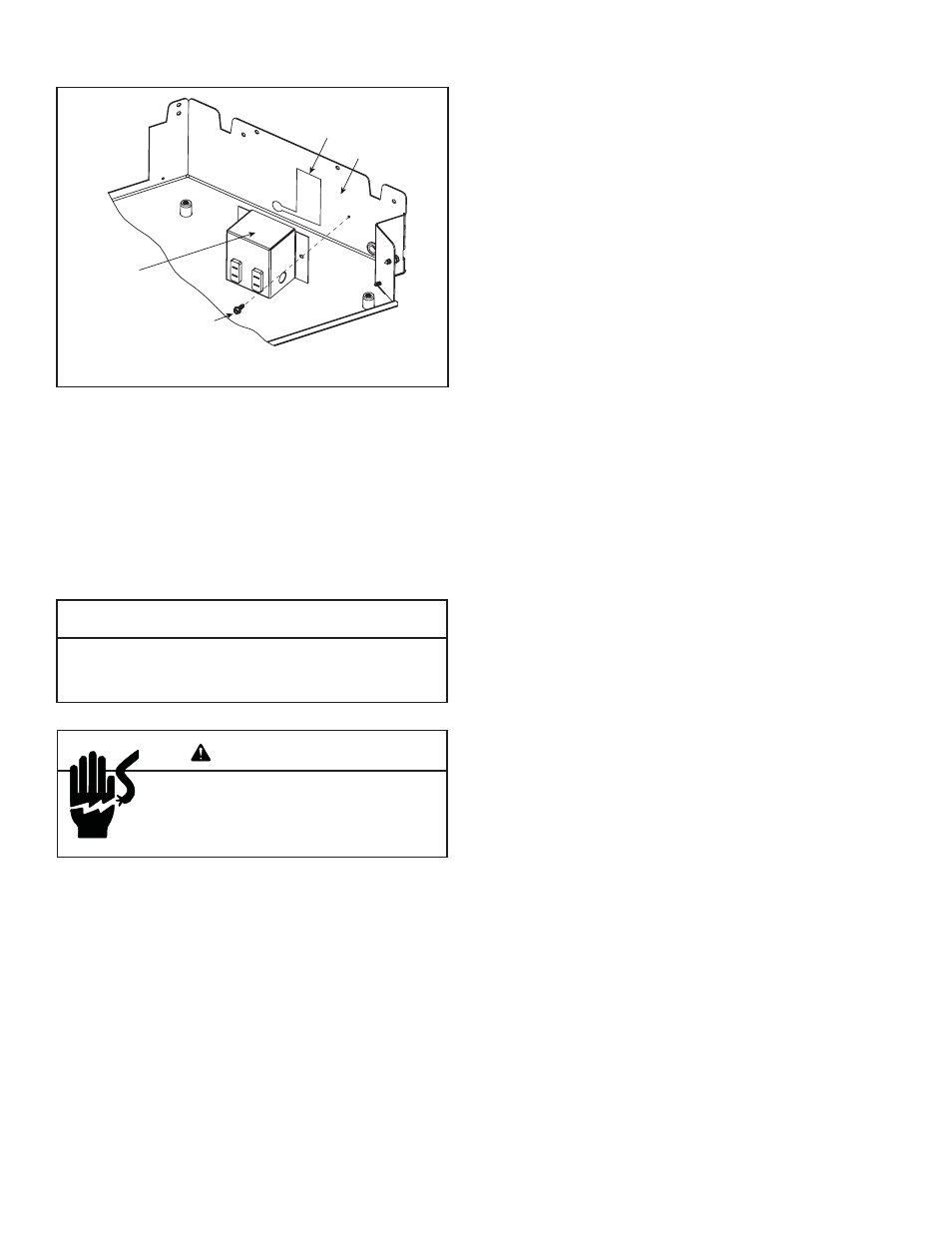

Figure 9.2 Junction box installation
JUNCTION
BOX
SIDEWALL
JUNCTION BOX ACCESS
SCREW
PROVIDED
Optional Accessories
Connecting the electrical junction box is required if using
a blower or remote.
• Plug the cord into a convenient outlet.
• An electrician may install an outlet box inside the
fi replace. Place the outlet in the lower, back corner of
the fi replace.
• Must use cord supplied.
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105º C rated
wire.
• Wire must have high temperature insulation.
WARNING
