Starting up the ice maker and dispenser
Using the digital display
Preparations before starting up the ice maker and dispenser
The ice maker can be connected either directly to a water supply line if fitted
with a filter (option A) or to a drinking water container if fitted with a water
pump (option B).
● Cut the water line to the right length to prevent it from kinking. The
recommended maximum length for the water line is 12 m. The pressure drop
resulting from an excessively long water line could adversely affect the ice
cube maker capacity.
● Keep the water line away from heat sources.
● The water supply line should be installed and checked by professionals.
● When calling for refrigerated water for the first time, keep pressure on the
dispenser lever for one minute several times until water flows out, in order to
allow the water tank inside the appliance to fill up. Be sure not to hold the
dispenser lever pressed for too long, otherwise the water valve may overheat.
Option A:
● Water supply line installation
The pressure of the cold water supplied to the ice maker should be within
1.5-8.5 bar.
● It is recommended to use drinking water for producing ice cubes since the
filter does not sterilise bacteria.
Option B:
● The water pump must be connected to its own outlet and properly
grounded.
● Removal or modification of the water pump and modification or repair
of the water supply line by unauthorised persons are not permissible.
● To prevent fire, do not store or use flammable products such as fuel near the
water pump.
● The water pump is to be used solely with room temperature water; it is
not suitable for use with chemicals, fruit juice or other grainy drinks,
coffee or other hot liquids.
● If the water pump will not be used for en extended period of time, pull
out its power plug.
● Periodically check the water tank to make sure that the water level is
sufficient.
● Do not push, shake or knock the water pump.
● Place the water pump and drinking water container on a sturdy and level
surface.
● After opening the small lid of the drinking water container, protect the
opening with a dust cover. Guide one end of a hose to the bottom of the
container and connect the other end to the water pump inlet (indicated by an
INLET symbol). Connect one end of another hose to the water pump outlet
(indicated by an OUTLET symbol) and the other end to the water valve inlet
under the back of the refrigerator.
It has been scientifically proven that a Superfrost type device is necessary to

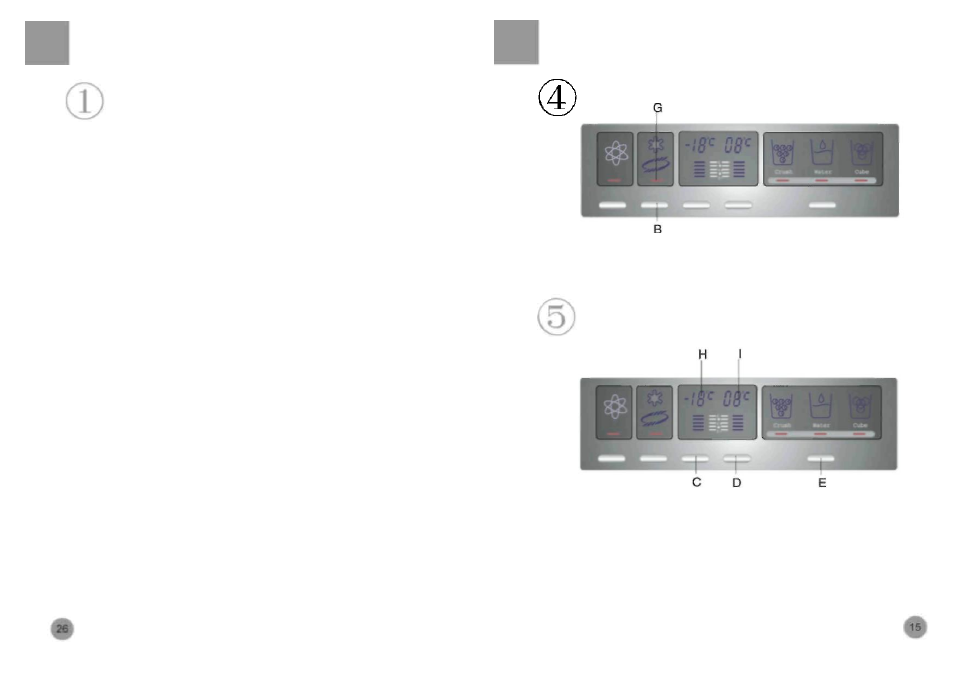

freeze foods quickly and thoroughly. Press key B, upon which indicator G lights
up and the Superfrost action is turned on. Press the key again to turn off the
Superfrost action, upon which indicator G goes off. (In Intelligent mode, it is not
necessary to turn on Superfrost.)
Temperature adjustments
● At start-up, the Intelligent operating mode is selected. Press the Intelligent
mode key to cancel the Intelligent operating mode.
● Temperature adjustment (requires the Intelligent mode to be cancelled)
Refrigerator temperature adjustment: Press key D, upon which indicator I starts
blinking. Each time key D is pressed, the temperature setting is increased by one
of level from 1 to 5 (3 °C). If you keep pressing key D, the cycle starts over again
from level 1 (7°C).
Freezer temperature adjustment: Press key C, upon which indicator H starts
blinking. Each time key C is pressed, the temperature setting is increased by one
level from 1 to 5 (-22 °C). If you keep pressing key C, the cycle starts over again
from level 1 (-15°C).
Ice/water selection: Press key E.
Help yourself to ice cubes/crushed ice/refrigerated water. Your selection becomes
available when the appropriate indicator lights up.
Superfrost
