ASSEMBLY STEP
WATER BOTTLE CAGE
PRE-ATTACHED SCREWS

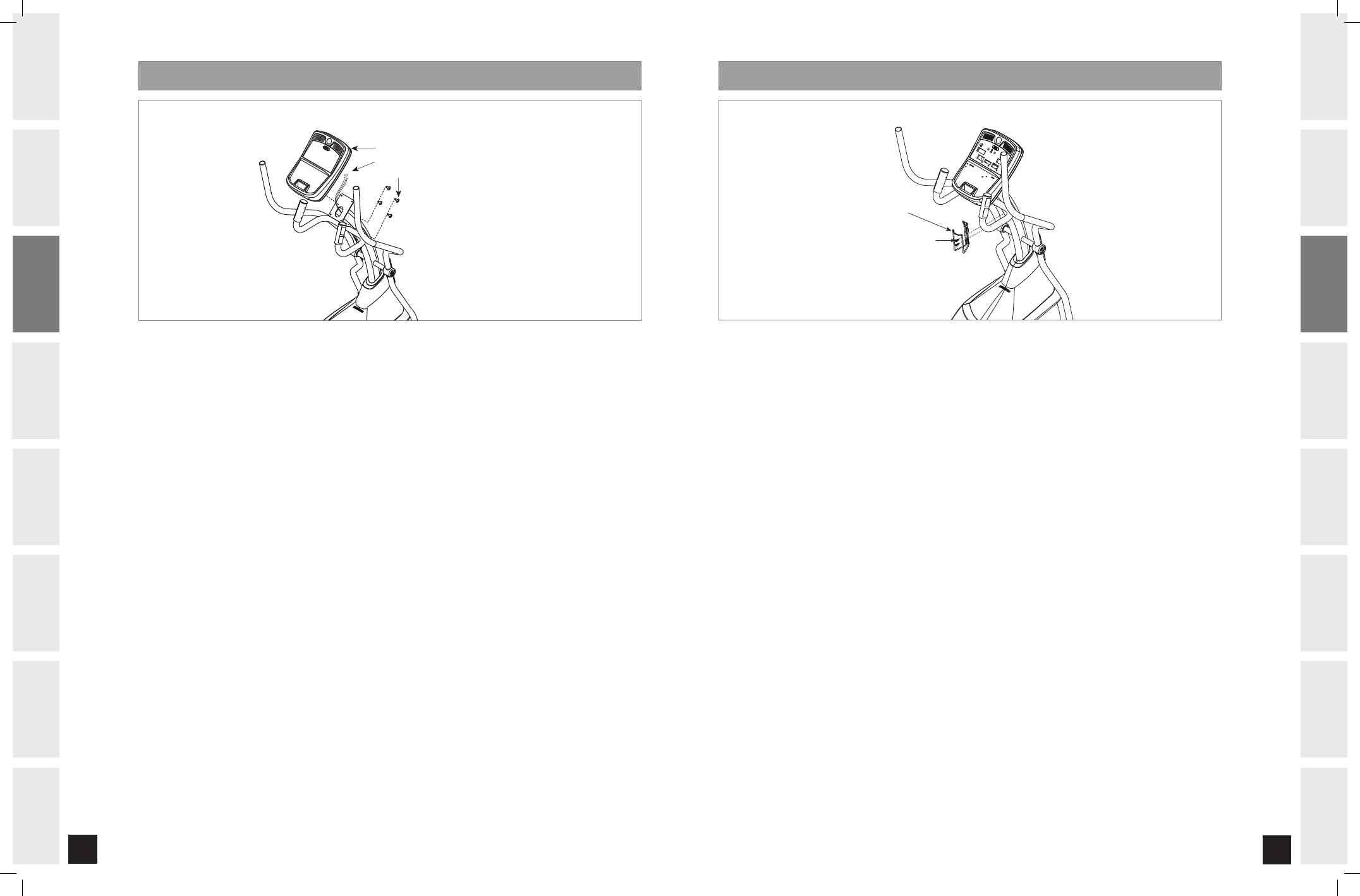

ASSEMBLY STEP 8
CONSOLE WIRES
CONSOLE
PRE-ATTACHED SCREWS
NOTE: There is NO hardware bag for this step.
A) Attach WATER BOTTLE CAGE onto CONSOLE MAST using PRE-ATTACHED SCREWS.
NOTE: There is NO hardware bag for this step.
A) Attach CONSOLE MAST WIRES to the CONSOLE WIRES.
B) Carefully tuck the CONSOLE MAST WIRES into the CONSOLE MAST.
C) Attach CONSOLE onto CONSOLE MAST using the 4 PRE-ATTACHED SCREWS.
NOTE: Be careful not to pinch any wires while assembling the console.
