Framing & Clearances
66 in.
(1676 mm)
42 in.
(1067 mm)
20 in. (508 mm)
(hearth
extension)
64 in.
(1626 mm)
12 in. (305 mm)
min. to
perpendicular
wall.

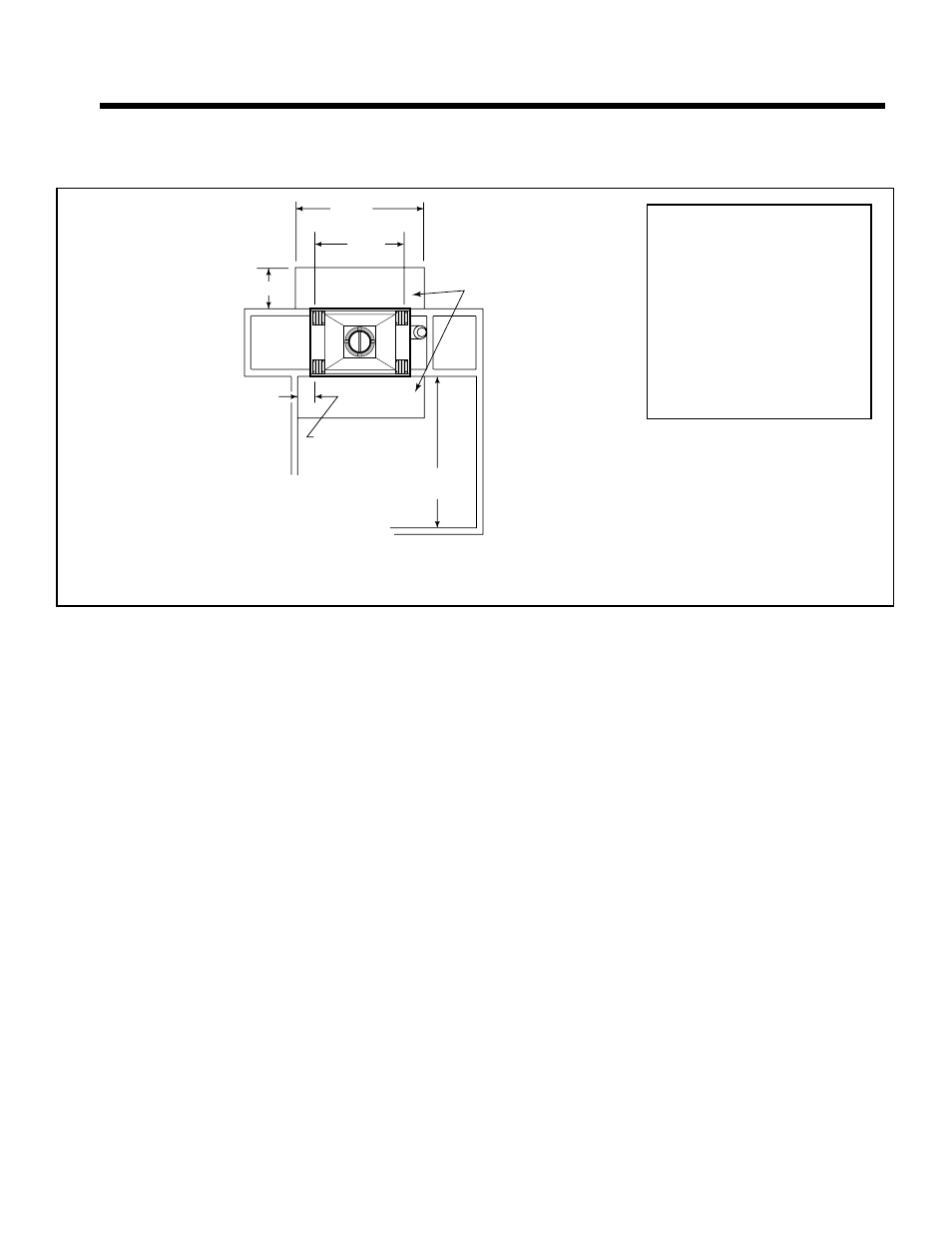

Figure 6.1 Fireplace Locations (Framing dimensions shown)
A. Select Fireplace Location
Note: 1/2 in. (13 mm) distance
f r o m f i r e p l a c e t o
combustible materials.
Note: In addition to these
framing dimensions, also
reference the following
sections:
• Clearances
• Mantel Projections
• Fireplace Dimensions
