19

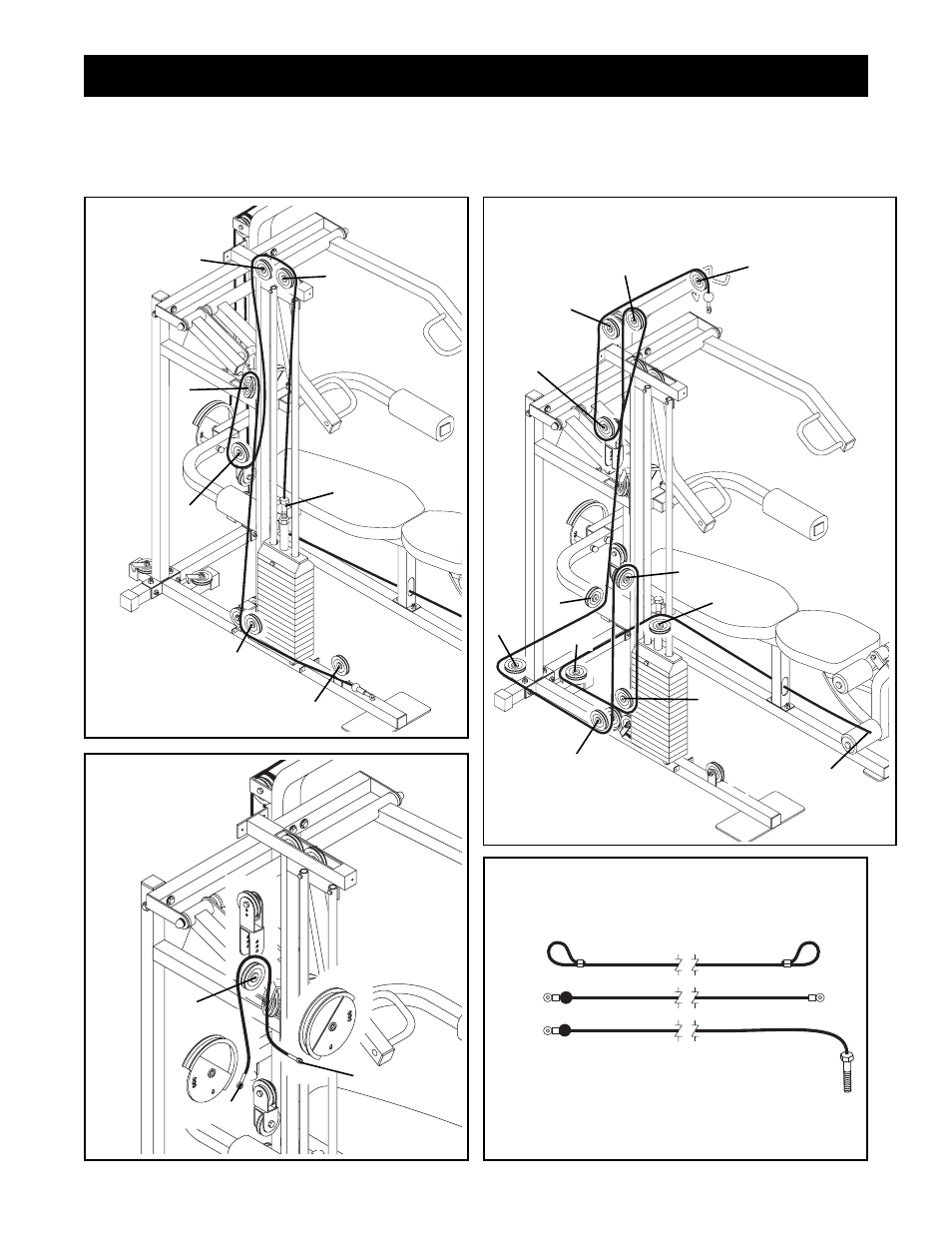

Cable Diagram
The Cable Diagrams below show the proper routing of the Butterfly Cable (92), the High Cable (73) and the Low
Cable (72). The numbers show the correct route for each Cable. Make sure the Cables are routed correctly,
that the Pulleys move smoothly and that the Cable Traps do not touch or bind the Cables. Incorrect
cable routing can damage the weight system.
Low Cable (72)
5
7
4
3
6
1
2
High Cable (73)
1
2
3
9
5
4
6
7
10
8
1
3
2
Butterfly Cable (92)
Cable ID Chart
92
73
72
11
12
