TOOLS INCLUDED PARTS INCLUDED
c
Phillips Screwdriver
c
5 mm T Wrench
c
5 mm L Wrench
c
6 mm L Wrench
c
13/15 mm Flat Wrench
c
1 Console
c
1 Console Mast
c
1 Water Bottle Holder
c
1 Main Frame
c
1 Front Stabilizer Tube
c
1 Base Rail
c
4 Base Rail Bracket Caps
c
2 Footpads
c
1 Audio Adaptor Cable
c
3 iPod ® Dock Inserts
c
2 Crank Caps
c
1 iPod ® Docking Station Plug
c
2 Upper Hadlebars
c
2 Lower Handlebars
c
2 Swing Arm/Pedal Arm Sets
c
4 Swing Arm Caps
c
2 Link Arms
c
2 Elbow Cover Sets
c
2 Rear Uprights
c
2 Top Hand Rails
c
1 AC Adaptor Cable
c
1 Universal MP3 Player Dock Insert
c
10 Hardware Bags
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.

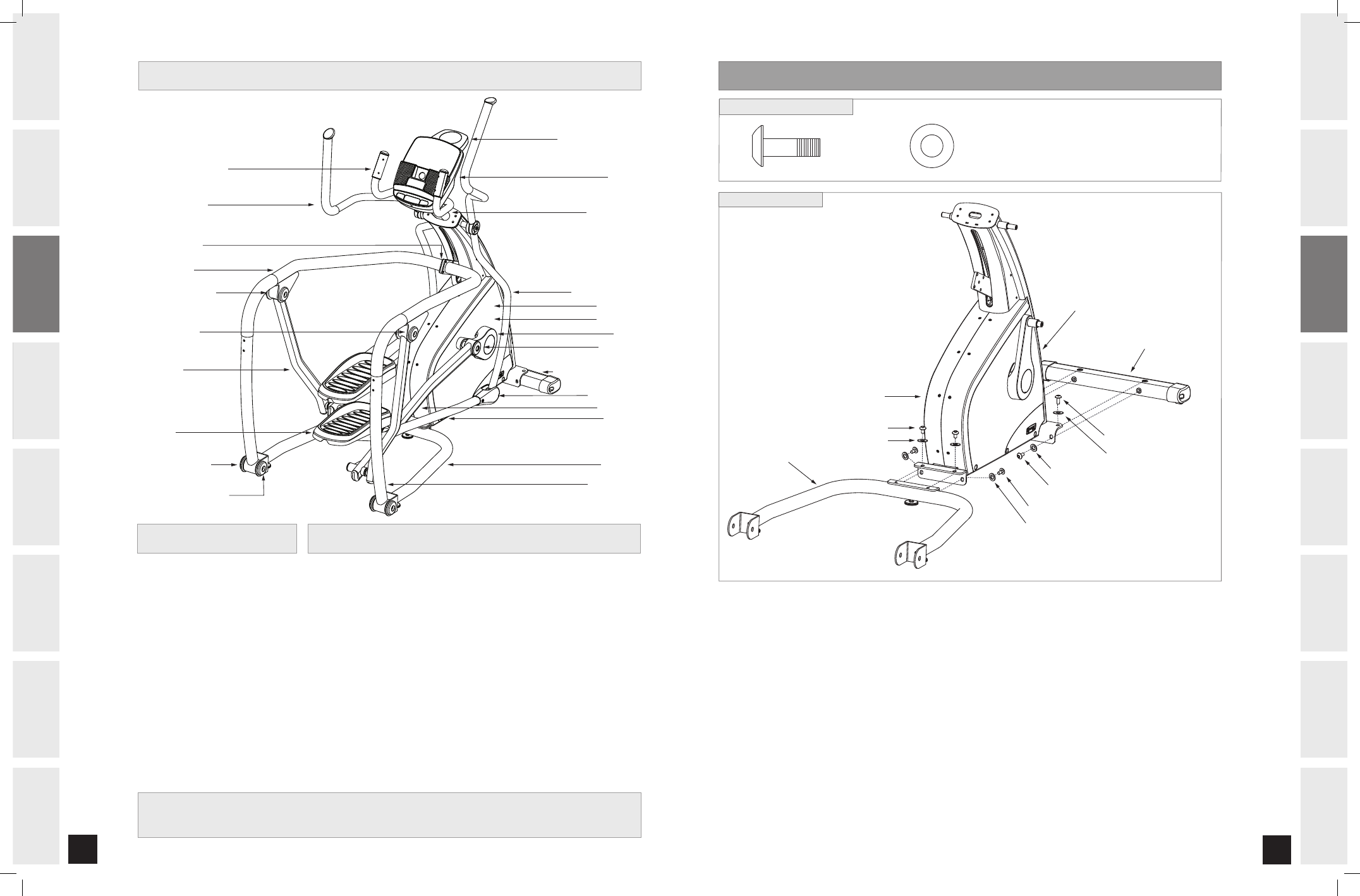

CONSOLE
WATER BOTTLE HOLDER
FRONT STABILIZER TUBE
UPPER HANDLEBAR
SWING ARM
BASE RAIL BRACKET BASE RAIL
CONSOLE MAST
PEDAL ARM
CRANK
HEART RATE HAND GRIPS
LOWER HANDLEBAR
CRANK CAP
LINK ARM
ELBOW COVER
FOOT PAD
BASE RAIL BRACKET CAPS
SWING ARM BRACKET
SWING ARM CAP
TOP HAND RAIL
INCLINE BRACKET
MAIN FRAME
SIDE COVER
REAR UPRIGHT
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BOLTS (A)
WASHERS (B)
BASE RAIL
FRONT STABILIZER TUBE
MAIN FRAME
MAIN FRAME
WASHER (B)
20 mm
Qty: 8
BOLT (A)
20 mm
Qty: 8
WASHER (B)
20 mm
Qty: 8
BOLT (A)
20 mm
Qty: 8
HARDWARE BAG 1 CONTENTS:
ASSEMBLY STEP 1:
Open HARDWARE BAG 1.
Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 4 BOLTS (A) and 4 WASHERS (B).
Attach the BASE RAIL to the MAIN FRAME using 4 BOLTS (A) and 4 WASHERS (B).
A
B
C
ASSEMBLY STEP 1 DIAGRAM AND PARTS LIST
