Hitachi DVRF7U - Manual (Page 19)

C
onnections
English - 19

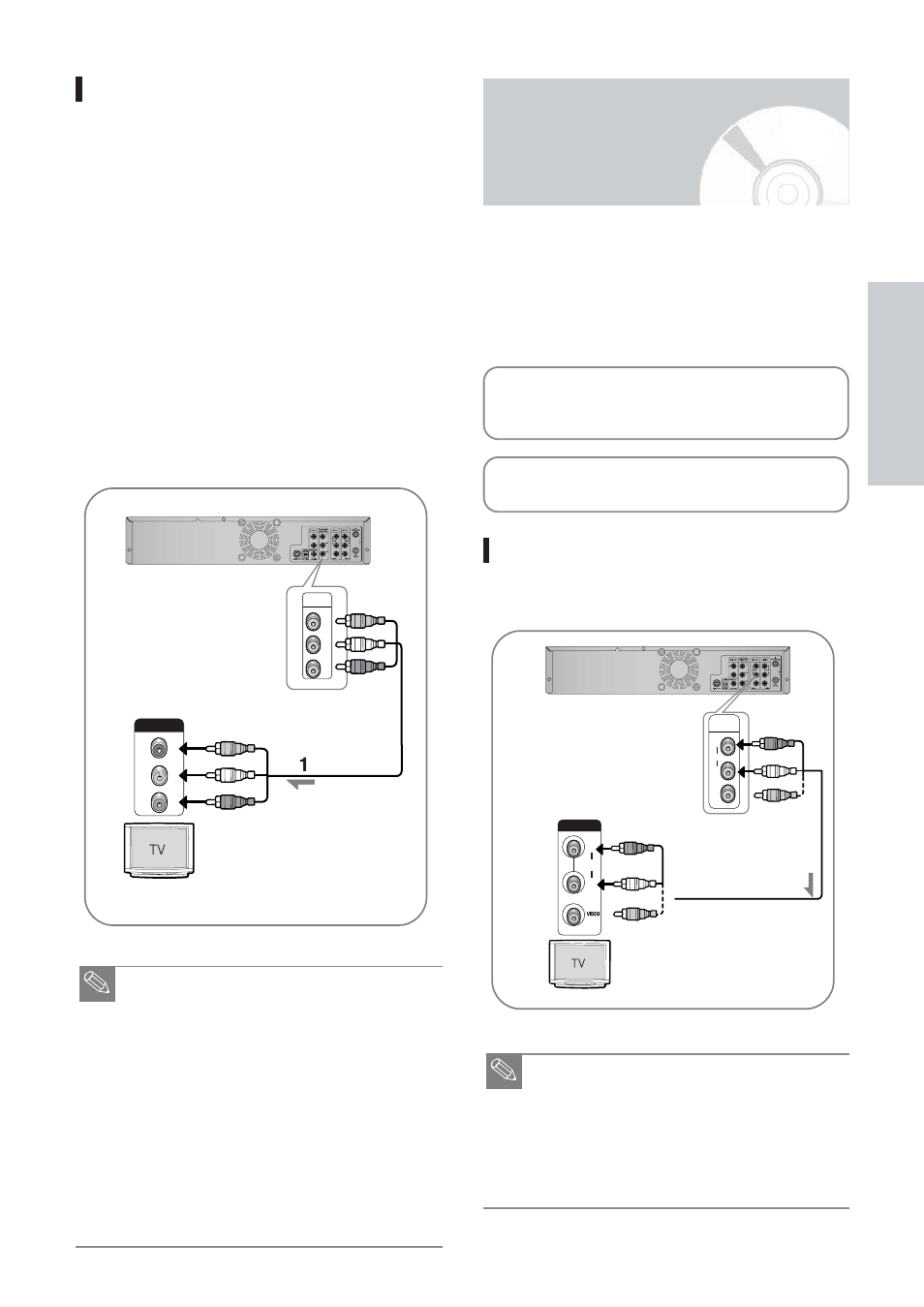

Method 4: Connecting to Component
video input jacks (Y, C
B /P B , C R /P R ) in
525p/480p mode
Your TV must support progressive scan input to allow you
to watch 525p/480p video output.
1. Connect Component video cables (not supplied)
between the COMPONENT VIDEO OUT jacks on DVD
Recorder-VCR and COMPONENT VIDEO IN jacks on
the TV (or AV amplifier).
2. Press the Progressive button on the front panel. The
message “Press “Yes” to confirm Progressive scan
mode. Otherwise press “No”.” will be displayed. If you
want 525P/480P mode, select Yes. If “480P” is displayed
on the front panel display, now your DVD Recorder-
VCR is operated on 525P/480P Mode. Make sure that
the disc has stopped completely before changing the
mode.
■ Make sure that the color coded connections match.
That is, the Y, P B and P R component output jacks of
your DVD Recorder-VCR should be connected to
the exact corresponding component input jacks on
your TV. Otherwise, red or blue images will be dis-
played on the TV screen.
■ Once 525p/480p video output mode is selected,
Video, S-Video and 525i/480i outputs are disabled.
■ Make sure that the left and right audio output jacks
of your DVD Recorder-VCR are connected to the
left and right audio input jacks of your TV, respec-
tively (page 19).
Note
COMPONENT
Pb
Pr
Y
COMPONENT
VIDEO OUT
Y
C B /P B
C R /P R
There are several ways to connect your DVD Recorder-
VCR. Select the audio connections that best suits you.
• Method 1: Connecting to your TV
• Method 2: Connecting to a stereo amplifier with analog
input jacks.
• Method 3: Connecting to an AV amplifier with a digital
input jack.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of
Digital Theater Systems, Inc.
Method 1: Connecting to your TV
This connection will use your TV’s speakers.
■ The VCR video and audio are also output from the
following jacks: During DVD recording, the video
and audio that the DVD recorder is recording are
output:
• Audio output R/L jacks
• S-video output jack
• Component video output jacks
Note
INPUT
AUDIO AUDIO
L
R
red
white
R
AUDIO
VIDEO
L
LINE OUT
L
red
white
Step 4: Connecting
the Audio Cable
