Monitoring Products
92 Embedded Web Server User Guide
■ Block Configuration — Indicates the blocked or unblocked configuration of
the port:
— Blocked — Devices communicating with the port are prevented from
logging into the product or communicating with other devices attached to
product ports.
— Unblocked — Devices communicating with the port can log in to the
product and communicate with devices attached to any other unblocked
port in the same zone.
■ State — See “ Port Operational States ” in the next section for an explanation
of the states.
■ Type — The type of port. The valid options vary by product.

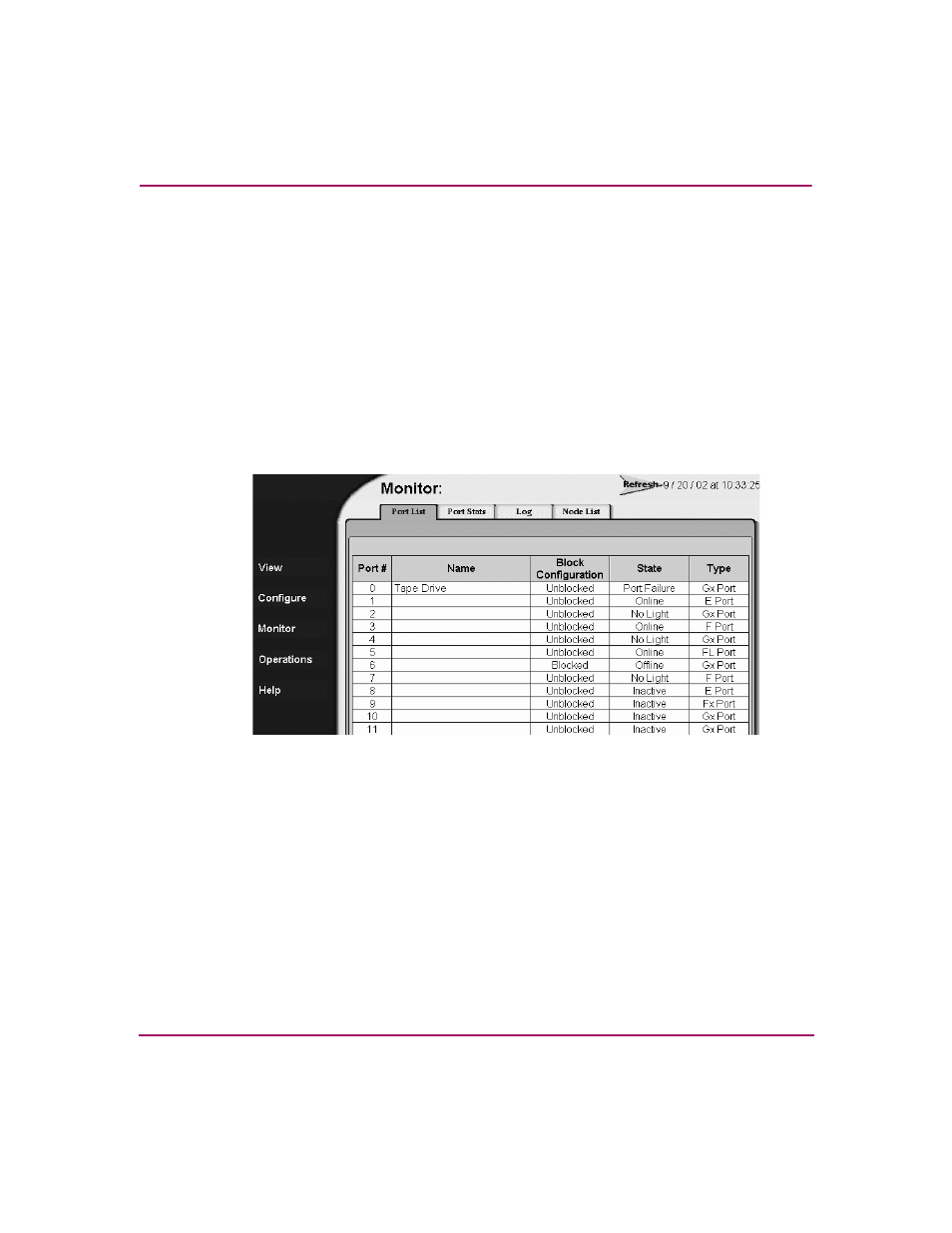

Figure 30: Port List tab view
Port Operational States
The State column of the Port List tab view displays one of the following
operational states:
■ Beaconing — The port is beaconing, which means that the beaconing light
is flashing on the physical hardware. (A port in a failed state cannot beacon.)
■ Inactive — The switch port is in an inactive state. Reasons for this state
display in the Reason field of the Port Properties page. (See “ Viewing Port
Properties ” on page 75 for more information.)
