Viewing Product and Fabric Data
75 Embedded Web Server User Guide
Viewing Port Properties
To view the properties of a port on a product, perform the following procedure:
1. Choose View from the navigation panel.
2. Choose the Port Properties tab. The Port Properties tab view displays
( Figure 24 ) showing the properties for only one port.

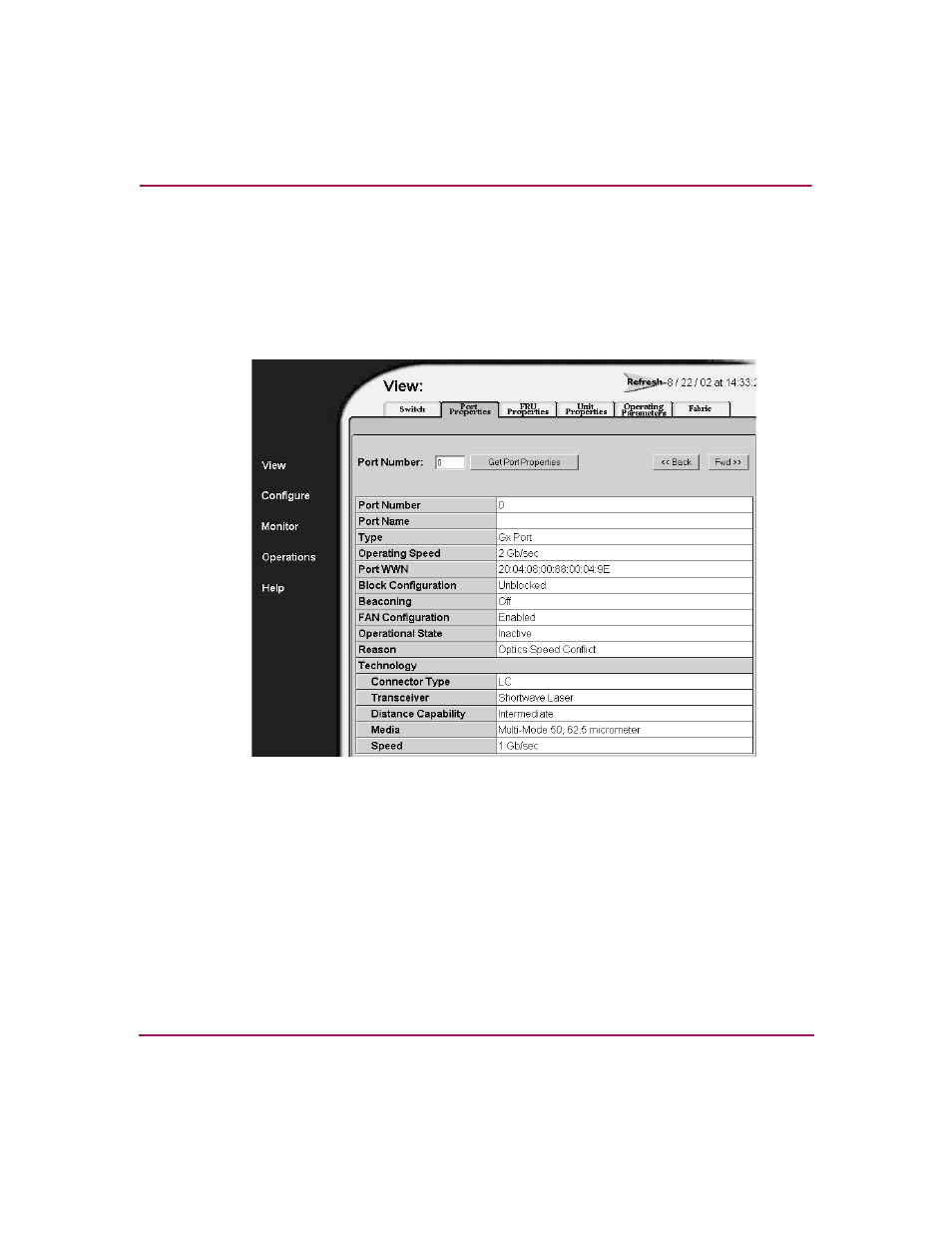

Figure 24: Port Properties tab view
3. To display properties for a specific port, insert the port’s number in the Port
Number field and click the Get Port Properties button. (You can also use the
< and Fwd>> buttons to view port information incrementally, one at a
time.)
The Port Properties page provides the following information:
■ Port Number — The physical port number.
■ Port Name — User-defined port name or description.
