AII 36587 (0705) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.

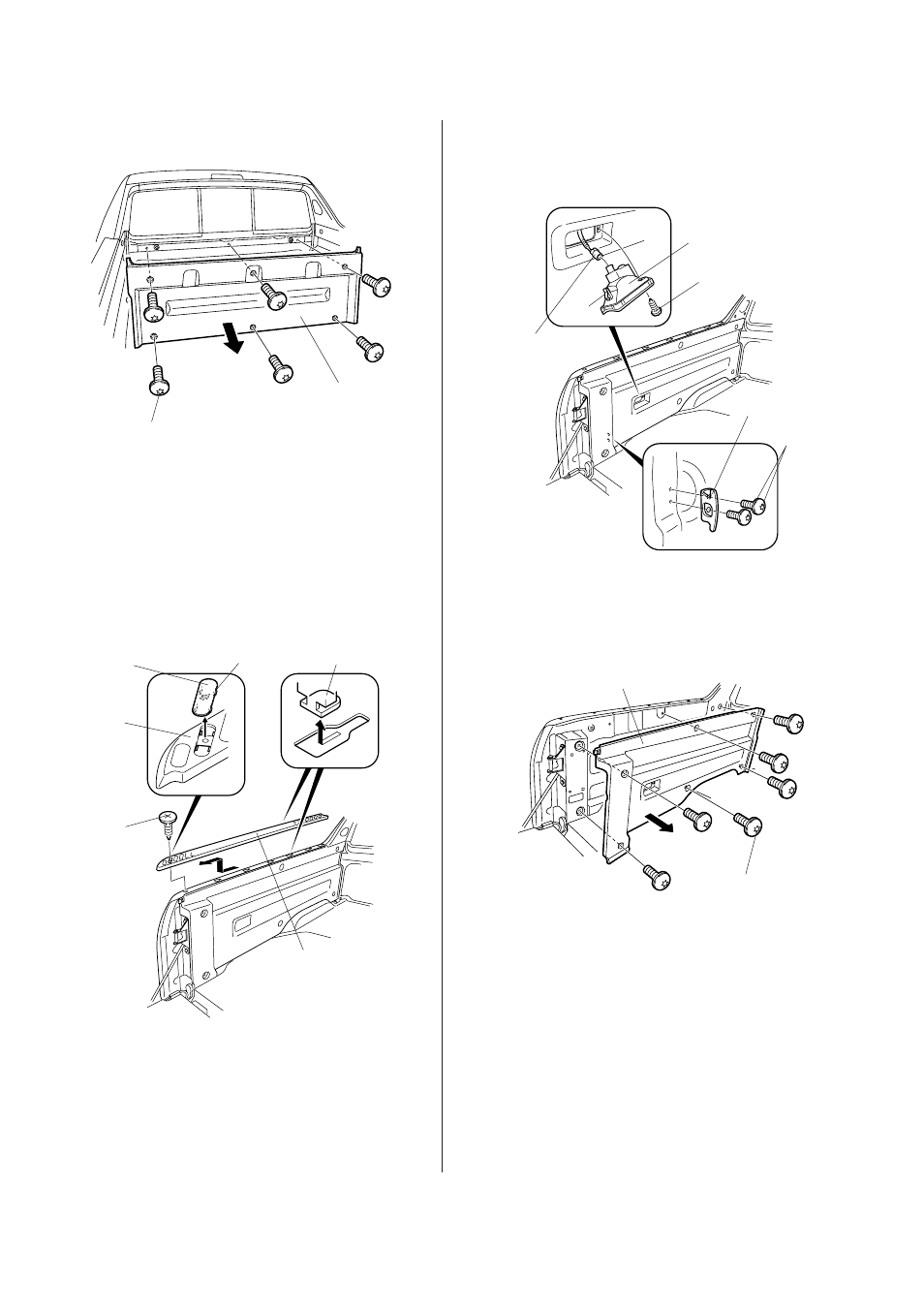

24. Remove the left bed rail trim:
• Remove the screw cover (four retaining tabs).
• Remove the self-tapping screw.
• Pull the left bed rail trim back to release the
six clips, and remove the left bed rail trim.
25. Remove the left lower bed light (one self-tapping
screw, pull the light out towards you and unplug
the vehicle connector).
23. Remove the front bed panel (six TORX bolts).
27. Remove the left side bed panel (six TORX bolts).
26. Remove the left rear anchor (two TORX bolts).
3929032H
FRONT BED
PANEL
6 T40 TORX
BOLTS
3926071H
SCREW
COVER
4 RETAINING
TABS
LEFT BED
RAIL TRIM
6 CLIPS
SELF-
TAPPING
SCREW
LEFT BED
RAIL TRIM
3926021H
6 T40 TORX
BOLTS
LEFT SIDE
BED PANEL
3926062H
SELF-TAPPING
SCREW
LEFT LOWER
BED LIGHT
CLIP
VEHICLE
CONNECTOR
T50 TORX
BOLT
LEFT REAR
ANCHOR
