HONDA 08B21-SJC-102 User Manual

Page 2

2 of 17

AII 36587 (0705)

2 EPT sealers

4 Cushion tapes

2 Socket bolts, 4 x 10 mm

3 Washer screws, 4 x 12 mm

2 Washer screws, 4 x 6 mm

Rear camera

TOOLS AND SUPPLIES REQUIRED

Phillips screwdriver

Flat-tip screwdriver

10 mm Combination wrench

Ratchet

10, 12 mm and 14 mm Socket

Torque wrench

File

Isopropyl alcohol

Shop towel

Tape measure

Drill

3 mm, 8 mm, and 10 mm Drill bits

Utility knife

T40, and T50 Torx bit

KTC trim tool

Scissors

Tape

Electrical tape

Wire

3 mm Hex wrench

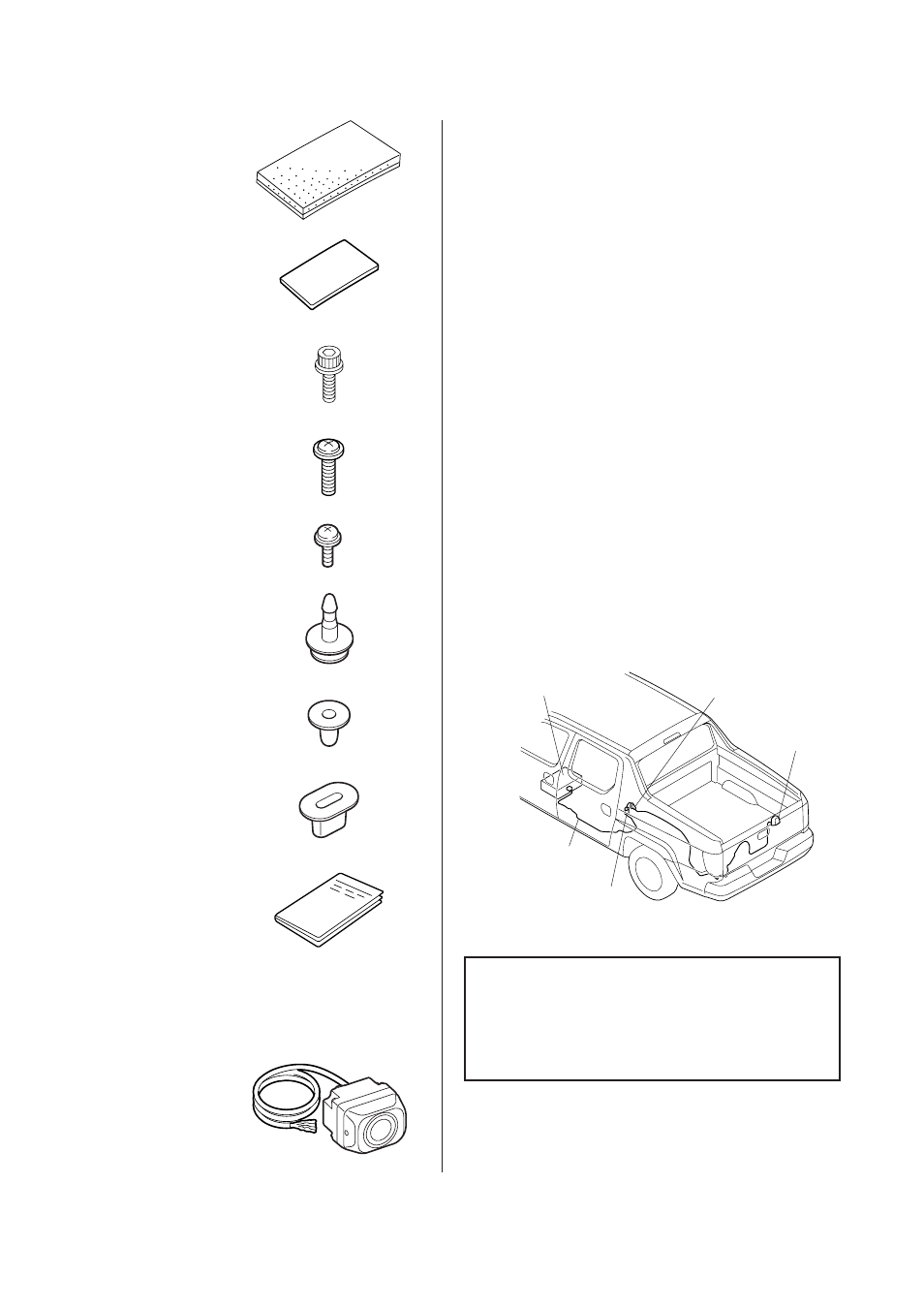

Illustration of the Rear Camera Installed on the
Vehicle

INSTALLATION

Customer Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures
should not be attempted by “do-it-yourselfers.”

Make sure you have the anti-theft code for the
radio, then write down radio station presets.

Disconnect the negative cable from the battery.

7 Clips

Round grommet

6 Oval grommets

Accessory user’s information manual

Rear Camera Kit (sold separately)
P/N: 08A57-SJC-100

4712100K

NAVI CONTROL UNIT

REAR CAMERA
SUBHARNESS

6-PIN CONNECTOR

REAR
CAMERA

GROMMET
