HONDA 08B21-SJC-102 User Manual

Page 11

AII 36587 (0705)

11 of 17

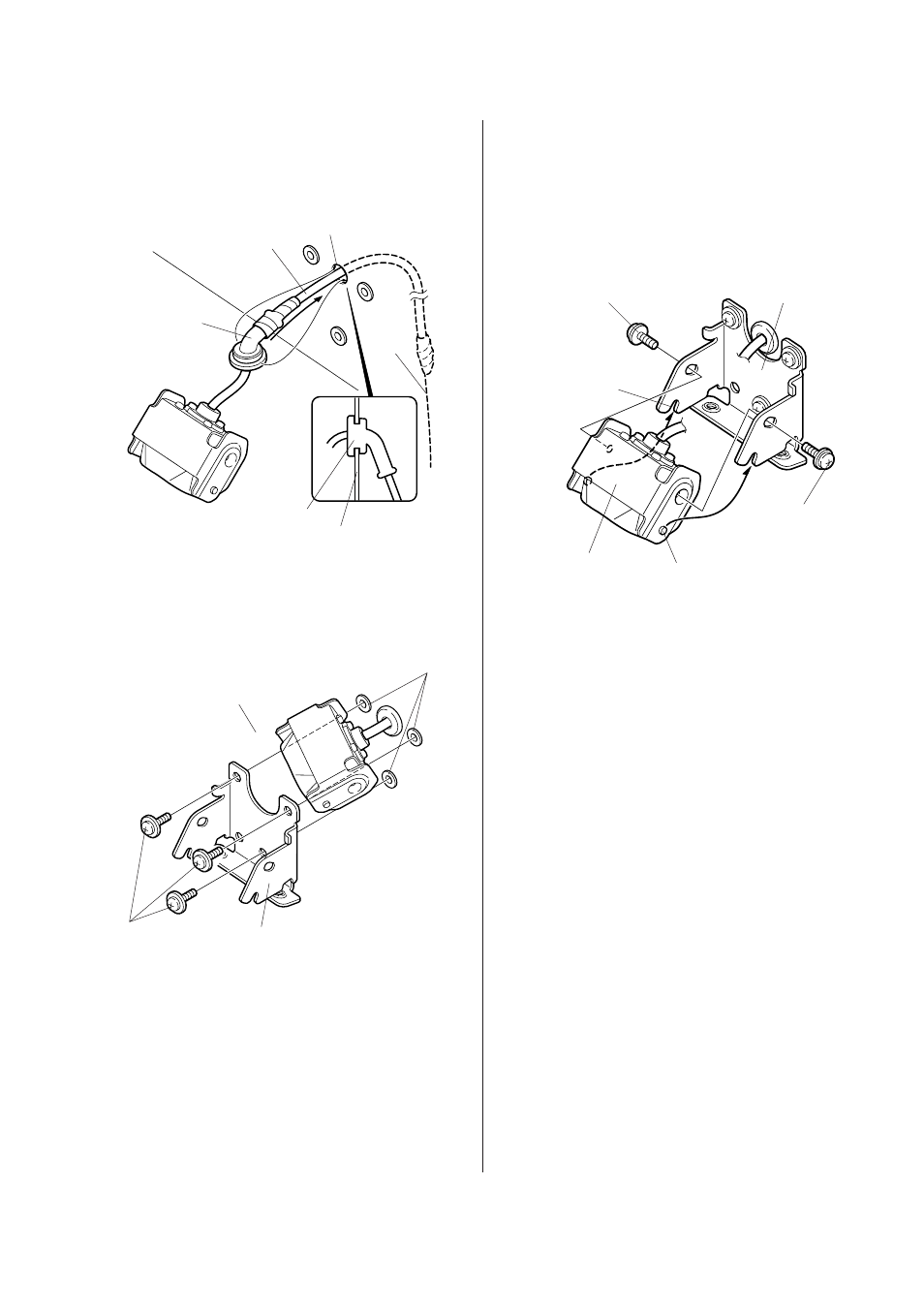

36. Route the rear camera harness through the 10 mm

hole in the tailgate, and seat the grommet into the
10 mm hole.

38. Align the two locating tabs on the rear camera

subbracket with the slots in the rear camera
bracket, and install two 4 x 6 mm washer-screws.

NOTE: Make sure the flat surface of the rear camera
subbracket is facing up: otherwise, the camera view
will be upside down.

37. Install the rear camera bracket to the three blind

nuts with three 4 x 12 mm washer-screws.

4708041K

BLIND
NUT

4 x 12 mm
WASHER
SCREWS

TAILGATE PANEL

REAR CAMERA
BRACKET

4708081K

4 x 6 mm
WASHER
SCREW

REAR CAMERA
SUBBRACKET
(Flat surface
facing up.)

REAR CAMERA
BRACKET

4 x 6 mm
WASHER
SCREW

2 SLOTS

2 LOCATING
TABS

4708071K

REAR CAMERA
HARNESS

10 mm
HOLE

GROMMET

WIRE

VEHICLE PANEL
