AII 36587 (0705)

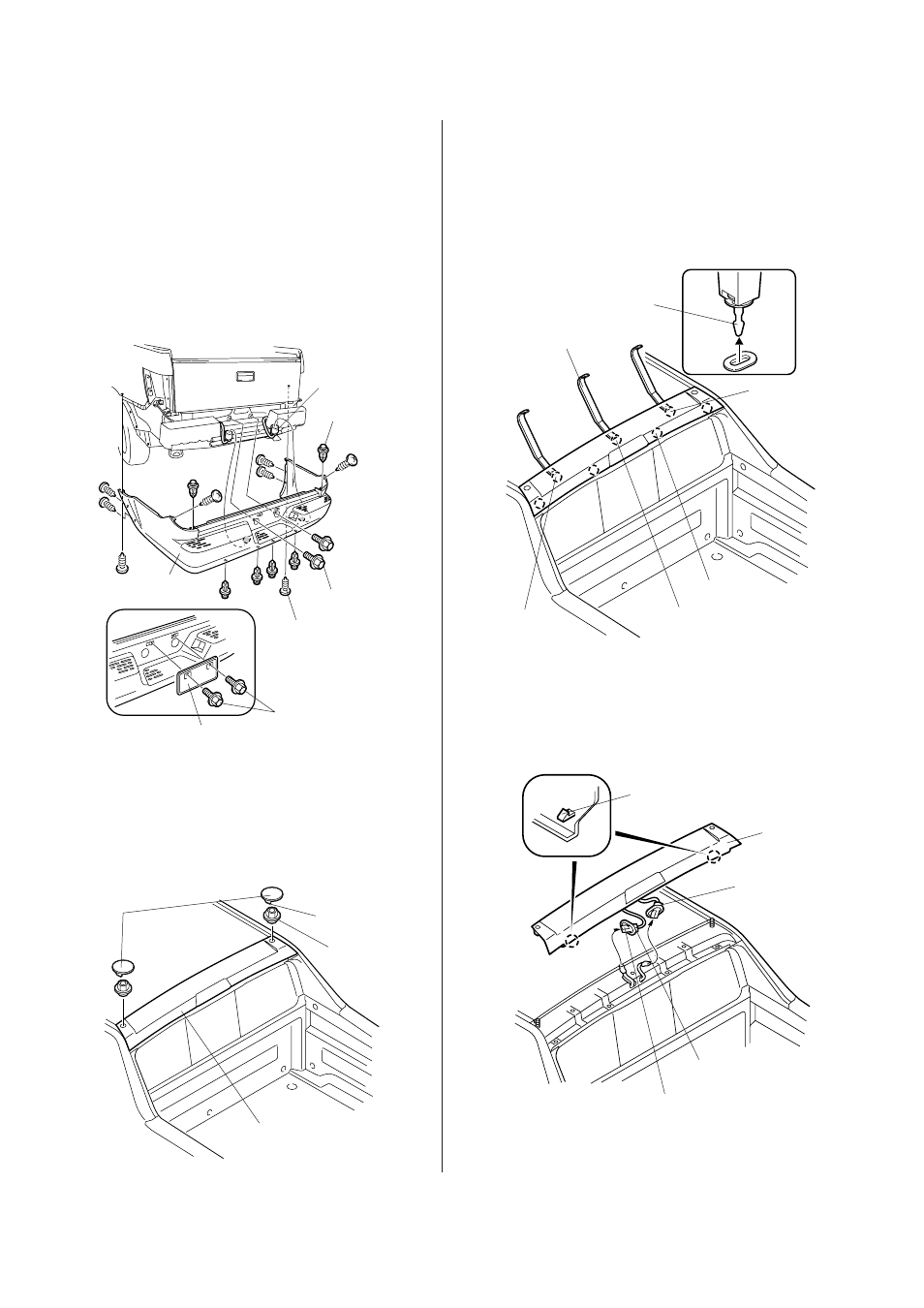

17. Remove the rear bumper:

•

Remove the license plate (two bolts).

•

Remove two bolts, six self-tapping screws and
six clips from the rear bumper.

•

Pull the rear bumper toward you. Unplug the
two vehicle connectors, and remove the rear
bumper.

•

Set the rear bumper on the blanket.

18. Remove the rear roof trim:

•

Remove the roof trim nut covers (two retaining
tabs for each cover).

•

Remove the two nuts.

•

Using a KTC trim tool, carefully pry up the
front of the trim to release the three front clips.
Start with the left clip and work towards the
right clip.

•

Gently left the front of the trim to release the
four rear clips.

•

Remove the antenna grommet from the roof,
unplug the vehicle connector, and remove the
rear roof trim.

4D19051H

ROOF TRIM
NUT COVER

2 RETAINING
TABS

2 NUTS

REAR ROOF TRIM

4804024H

REAR
ROOF TRIM

ANTENNA
GROMMET

2 HOOKS

2 VEHICLE
CONNECTORS

HIGH-MOUNT
BRAKE LIGHT
GROMMET

4D19062H

LEFT CLIP
(Start here.)

CENTER CLIP
(Second.)

RIGHT CLIP
(Finish here.)

7 CLIPS

KTC TRIM TOOL

4 CLIPS

3003063H

2 BOLTS

8 SELF-
TAPPING
SCREWS

6 CLIPS

REAR
BUMPER

BOLTS

LICENSE PLATE

2 VEHICLE
CONNECTORS
