HYUNDAI Plasma Display
GENERAL INFORMA
TION
14

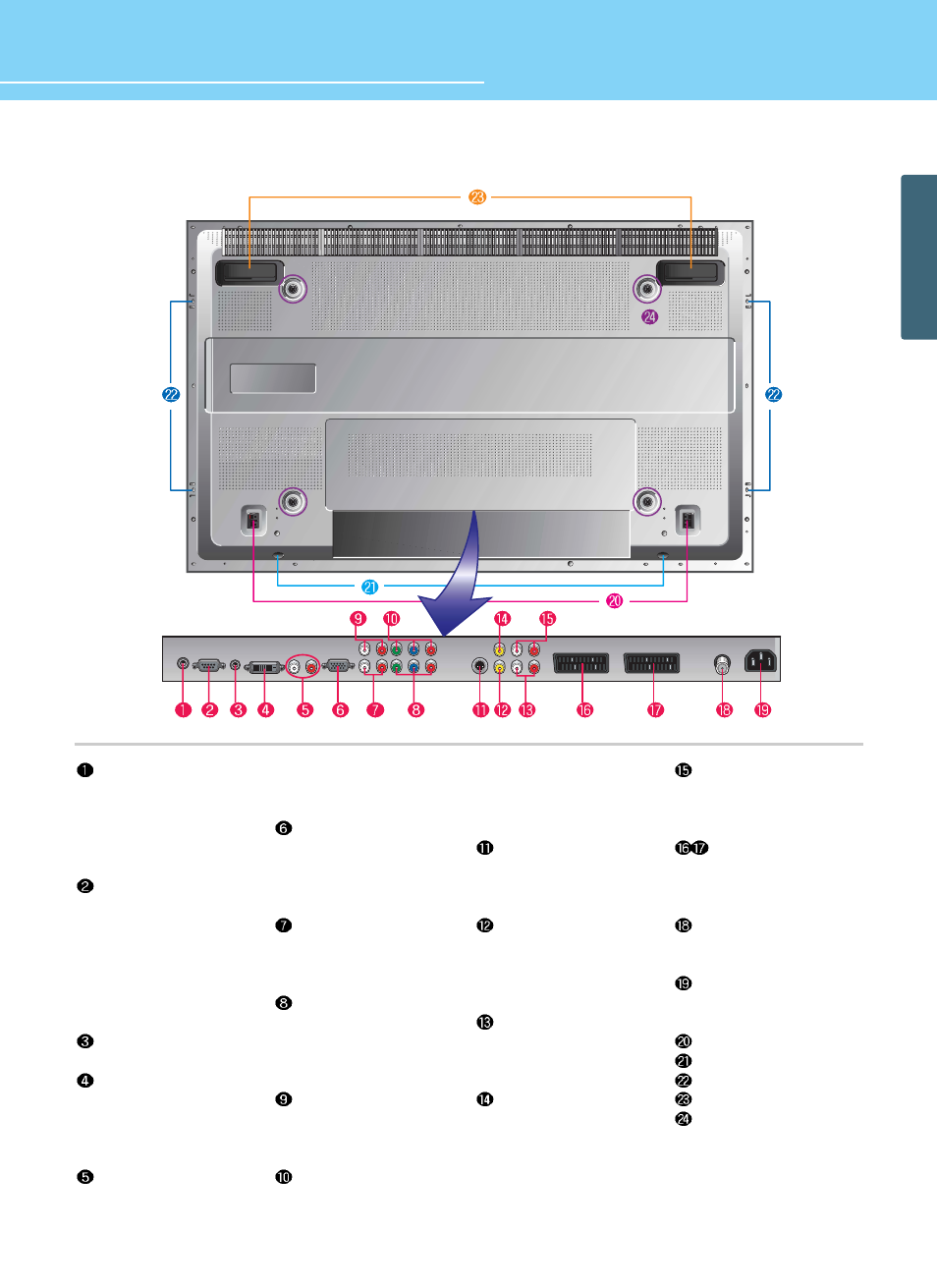

Rear View
Sub woofer output
If you wish to reproduce
the lower bass frequencies,
please connect the cable to
your Subwoofer speaker
with *AMP.
RS-232 input terminal
Connect to the RS-232
terminal of a PC for the
service check.
*For the control method
using this terminal, consult
an authorized PDP monitor
dealer.
Phone Jack(RS-232 Output)
Extend an RS-232 input.
DVI input terminal
Connect to the DTV receiver
with DVI terminal or to
external devices such as a
PC.
PC/DVI Audio input
terminal
Connect to the audio output
terminal of a PC.
D-SUB input terminal
Connect to the DTV
Receiver with D-Sub
terminal or to RGB output
terminal of a PC.
Audio input terminal for
DVD
Connect to the audio output
terminal of DVD player.
Component input terminal
for DVD or DTV
Connect to the Component
output terminal of DVD
player/DTV receiver.
Audio input terminal for
DTV Component
Connect to the audio output
terminal of DTV receiver.
Component input terminal
for DTV
Connect to the Component
output terminal of DTV
receiver.
S-video input terminal
Use this for the better video
quality than video input
terminal.
Video Composite input
terminal for VCR
Connect to the Composite
Video output terminal of
VCR or DVD player.
Audio input terminal for
VCR
Connect this when S-video
or Composite Video inputs.
Video output
This allows you to view the
current program from
another external source at
the same time.
Audio output
This allows you to hear the
sound for the current
program.
SCART input terminal
Use this for composite-
video input and audio-
inputs using scart cable.
ANT. input
This allows you to connect
your antenna.
Power input terminal
Power cord is connected
here.
Speaker terminal
Stand assembly
Speaker assembly
Carrying handles
Screw hole for fixing on a
wall
