SERVICING YOUR TILLER
HONDA F220 (E) 00X31-V14-6120 -
4. Reinstall the oil filler cap and tighten the oil level check bolt securely.
5. (AC type only) Installation
a. Remove the fuel tank cap. Verify the choke lever is in the CLOSED
position and reinstall the fan cover by inserting the choke rod into the
choke valve hole.
• The choke lever will not operate if the choke rod is not inserted
correctly into the choke valve hole as shown below.

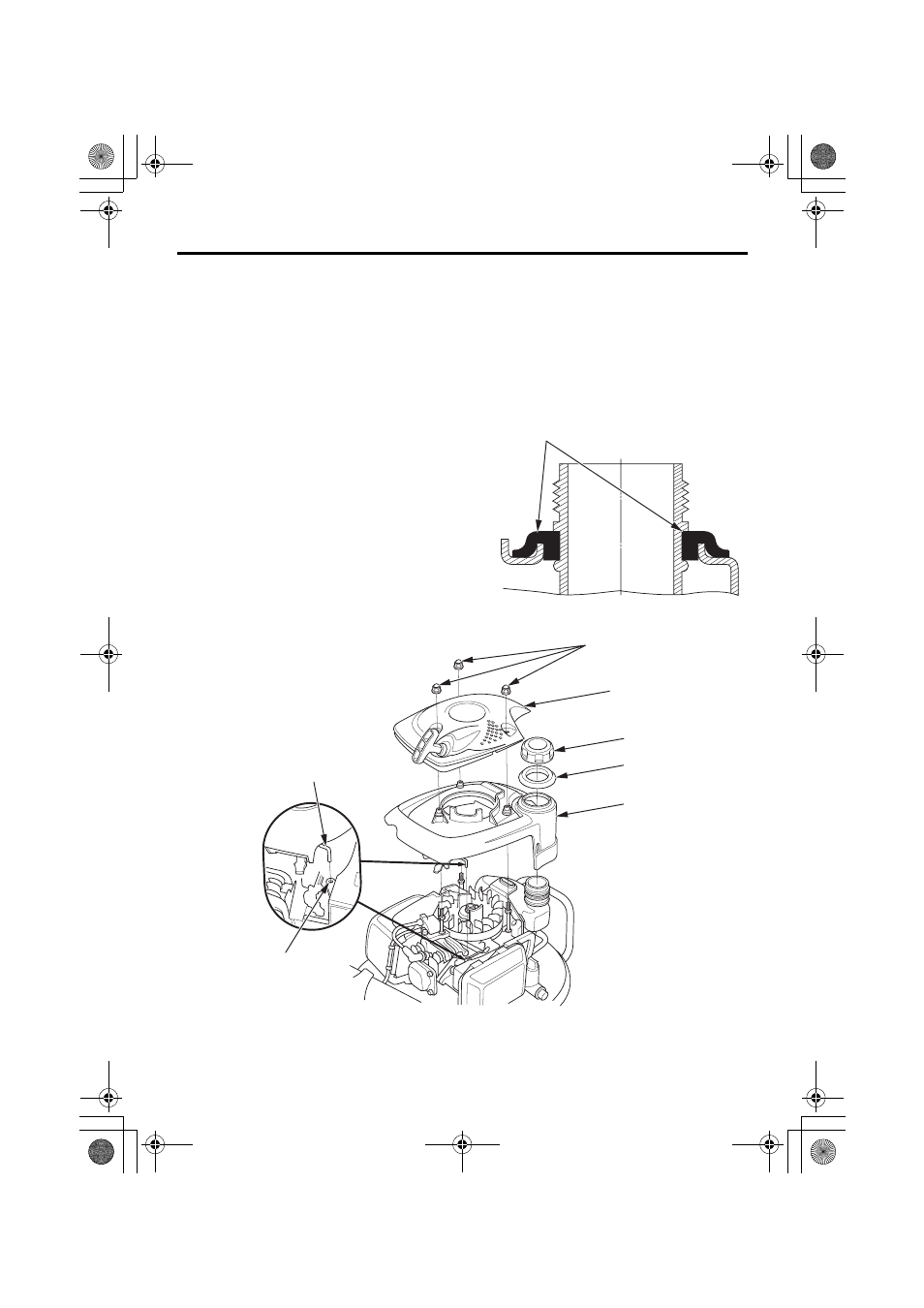

b. Reinstall the neck seal, and
fuel tank cap as shown.
c. Reinstall the recoil cover and tighten the recoil cover cap nuts securely.
NECK SEAL
CAP NUT (3)
RECOIL COVER
FUEL TANK CAP
NECK SEAL
FAN COVER
CHOKE ROD
CHOKE VALVE
HOLE
