Check the clutch cable operation every 25 operating hours and
adjust if necessary.
Adjustment is carried out as follows:
- Set the mower at the minimum height of cut position
and remove the transmission casing.
- Use the left hand to hold the engine stop lever
against the handlebar but do not start the engine. Use
the right hand to push the ground drive clutch lever for-
wards until it locks into the engaged position. Push
the mower in a forward direction until the front wheels
lock.

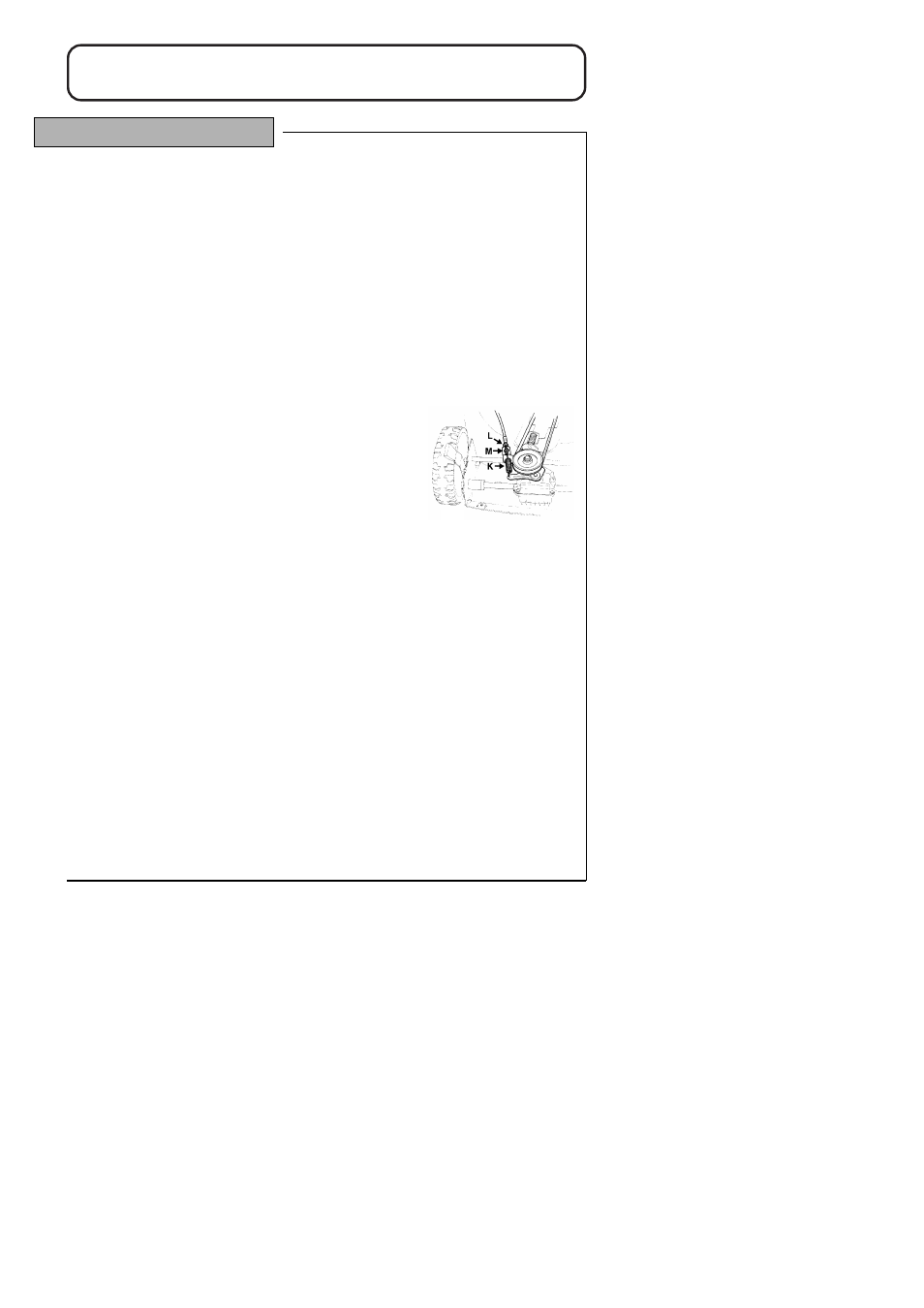

In this position the tension spring (K) should have
extended by approximately 9mm from the original
position with the controls released.
- If the adjustment is incorrect, slacken the lock nuts
(M) and rotate the cable adjuster (L) as necessary.
Retighten the lock nuts.
- After adjustment check to ensure that there is a small
amount of free play in the clutch control mechanism
with the controls released.
- Replace the transmission casing.
MAINTENANCE
401001EB100398A
1.29 1.29
CLUTCH CABLE ADJUSTMENT
