Heat & Glo • ESC-42ST • 2146-900 Rev. Q • 4/13 55
K. Ember/Mineral Wool Placement
WARNING! Risk of Explosion! DO NOT place embers
directly over burner ports. Improperly placed embers inter-
fere with proper burner operation. See instructions.
Ember material is shipped with this gas appliance. To place
the ember material:
• Place dime-size pieces of Glowing Embers® just in
front of the port trail, but not on or in between the ports
See Figure 14.23. Embers are to be placed adjacent
to burner port holes. Care should be taken so that the
ports are not covered. Failure to follow this procedure
will likely cause lighting and sooting problems.
• Embers CANNOT be placed directly over ports. Care
should be taken not to cover the lighting trail of ports
(from back to front).

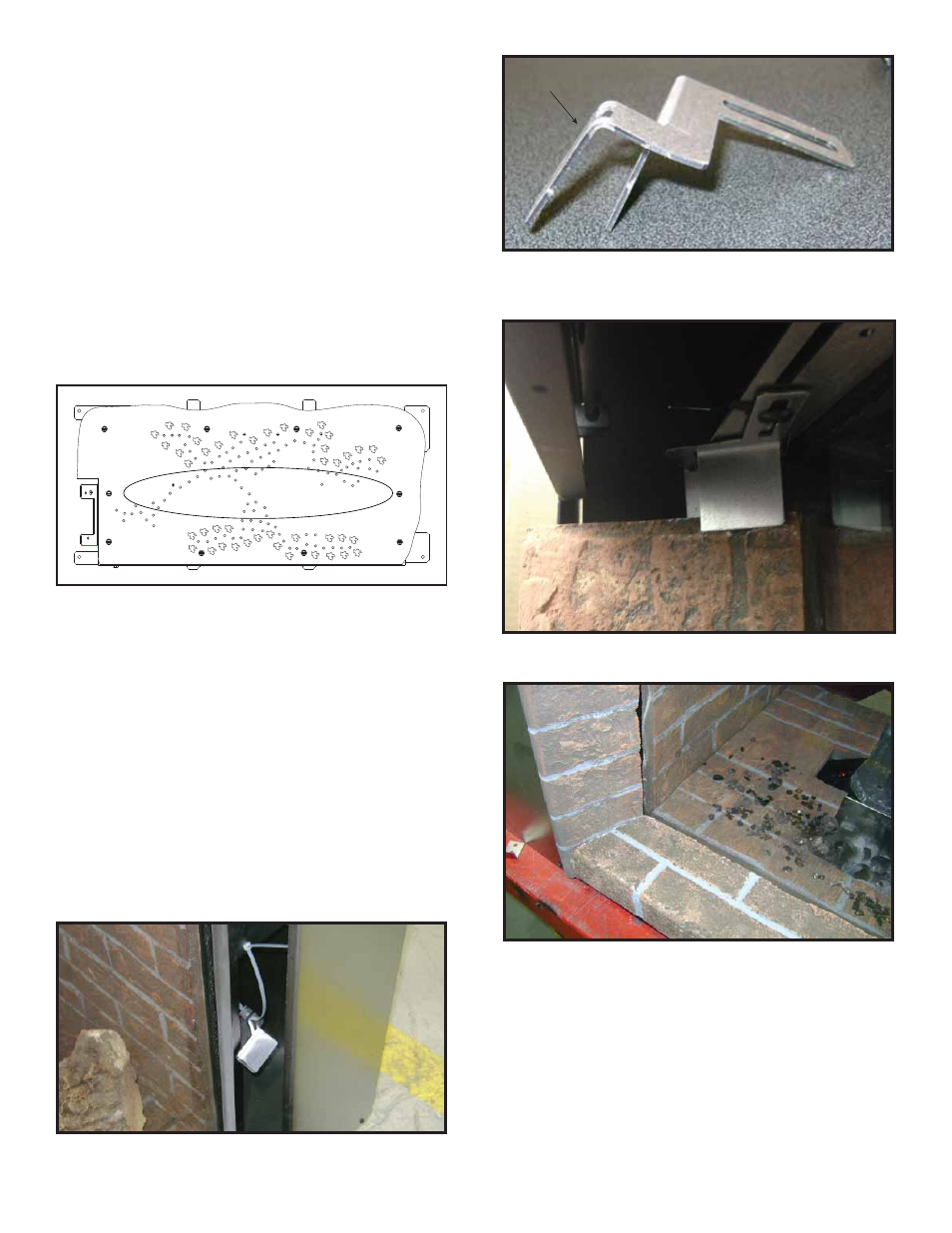

Figure 14.23 Ember Placement
L. Install Outer Refractory Panels
1. Install glass assembly. Refer to Section 14.A for glass
installation.
2. The refractory brackets are shipped wire-tied to the
right side support opposite the valve. See Figure 14.24.
Bend the back support of the refractory tab down. See
Figure 14.25. Install the two refractory brackets to the
glass frame and secure, but do not tighten. One screw
per bracket is required. See Figure 14.26.
3. Install both outer refractory panels and install refrac-
tory bracket to secure refractory panels in place. See
Figure 14.26.
4. Install Outer Hearth. See Figure 14.27.
Figure 14.26 Side Refractory Brackets
Figure 14.27 Outer Hearth Installation
Figure 14.24 Shipping Location of Refractory Brackets
NO EMBERS IN THIS AREA
BACK SUPPORT
TAB
Figure 14.25 Back Support Tab Bent Into Position

