Reference Materials

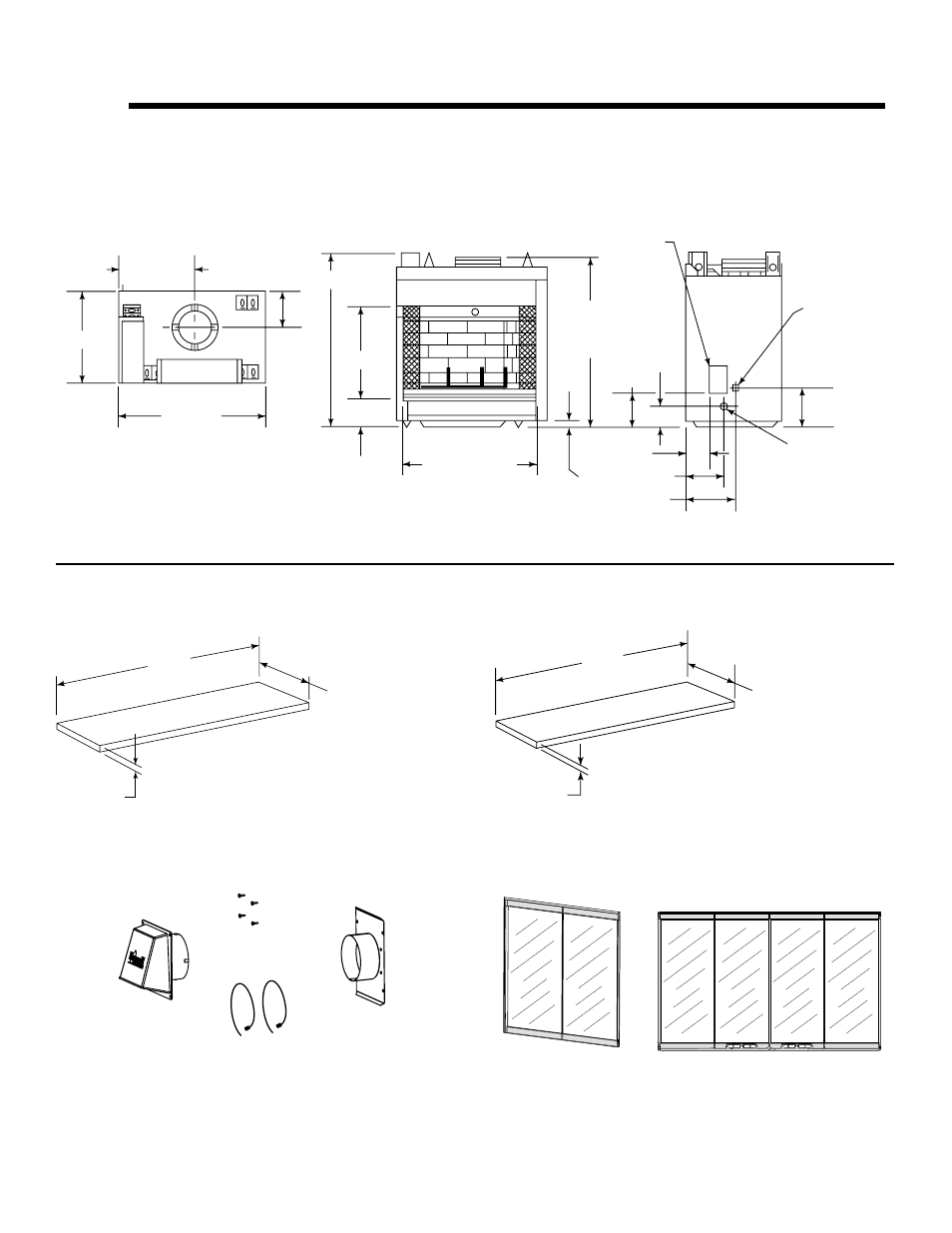

A. Fireplace Dimensions
17-1/4 in.
22-1/2 in.
36-5/8 in.
9 in.
22-1/2 in.
1/2 in.
38-1/2 in.
effective
height
3-1/2 in.
6-3/4 in.
5-1/4 in.
8-1/2 in.
5-7/8 in.
8 in.
1-1/2 in. SQ.
GAS
OPENING
4-3/4 in. x 6-5/8 in. O.A.
KNOCKOUT
1-1/2 in. DIA.
ELECTRICAL
KNOCKOUT
13-3/4 in.
42-1/4 in.
34 in. opening
B. Optional Components
16 in.
(406 mm)
52 in.
(1321 mm)
1/2 in.
(13 mm)
20 in.
(508 mm)
66 in.
(1676 mm)
1/2 in.
(13 mm)
HX3 Hearth Extension
HX4 Hearth Extension
Bi-fold Glass Doors
with End Panel
DM1436 Series
Inlet
Assembly
Tube
Assembly
2 Wire Ties
Fastener Pack
AK14
Outside Air Kit
Heatilator • CL36D, CR36D • 12538 • Rev T • 09/08
See your Heatilator dealer for a complete listing of optional components.
