8
41081-01 • 08/04/09 • Hunter Fan Company
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Make sure the power to the outlet box and associated wall switch
location is still OFF.
To connect the wires, hold the bare metal leads together and place a
wire connector over them, then twist clockwise until tight.

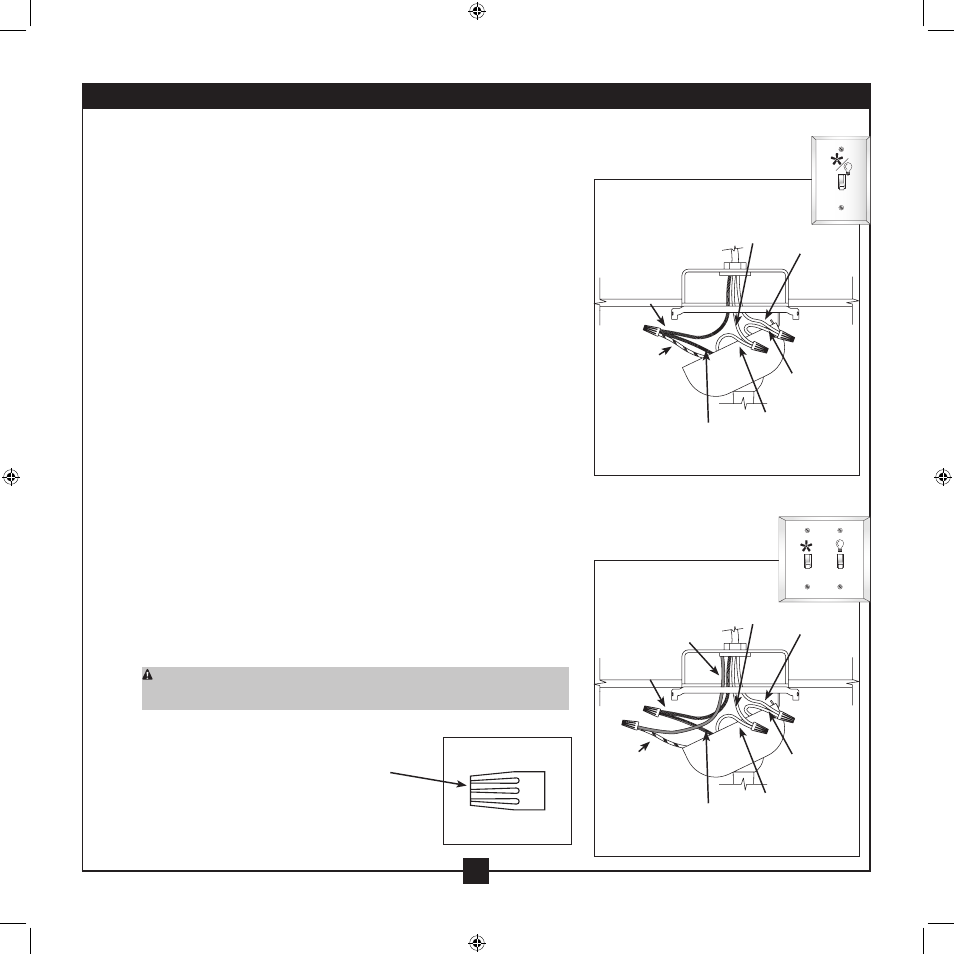

Single Switch Wiring:
If you want to, you can control both fan and light with one switch.
To do so connect the wires as follows:
• The bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground
wire from the fan
• The white wire from the ceiling to the white wire from the fan
• The black wire from the ceiling to the black and the black/
white wire from the fan
Dual Switch Wiring:
• The bare or green ground wire from the ceiling to the green
ground wire from the pipe ball assembly
• The white wire from the ceiling to the white wire from the fan
• The black wire from the ceiling to the black wire from the fan
• The black/white wire from the fan to the wire for the wall
switch
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Push all wires and wire connectors into the outlet box.
Wire Connector
Single Switch Wiring
Ground/Green
Black/
White
Black
White
4 • Wiring the Fan
Black
Ground/Green
White
Dual Switch Wiring
Ground/Green
Black/
White
Black
White
Black
Ground/Green
White
Wall Switch
