3 • Assembling and Hanging the Fan
3-1. Remove the blade mounting screws and rubber shipping bumpers
from the motor.
3-2. Assemble the blade ramp, blade, and blade bracket as shown.
Note: The blades are two-sided. Select which side you would like to
see and install it face-down.
3-3. Align the holes in the ramp, blade, and blade bracket with the
holes in the top of the fan.
3-4. Use the 1 1/4” long mounting screws to attach the taller end of
the blade assembly to the fan, and the 7/8” short mounting screws
to attach the shorter end of the blade assembly to the fan. Tighten
all screws securely.
3-5. Leaving the backing on one side of the dots, place the adhesive
dots onto the back of the decorative decal (the side without
printing).
Note: If you have a textured ceiling, you may need to smooth a
surface for the dots to adhere, or purchase a thicker adhesive.
3-6. Rest the decorative decal over the motor shaft, with the printed
side down.

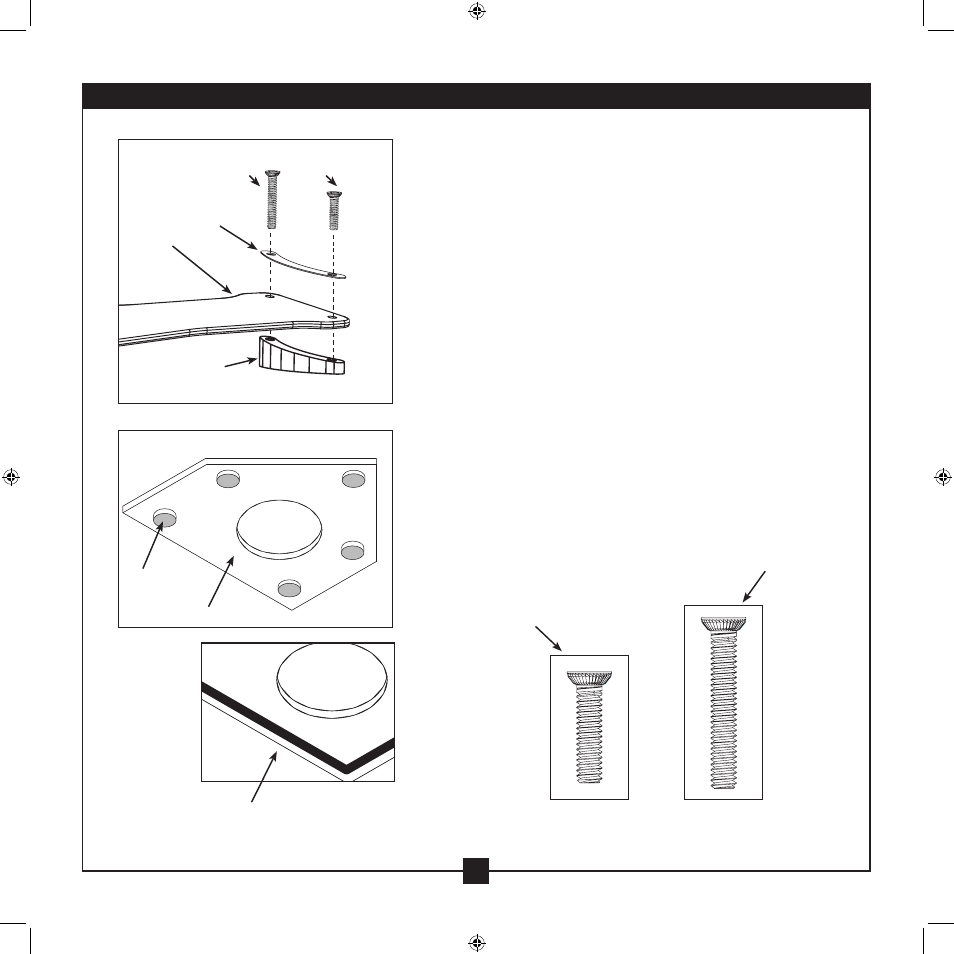

Blade Bracket
Blade
Step 3-5
Adhesive
Dot with
Backing
Ramp
Decal
Step 3-2 Long
Mounting
Screw
Short
Mounting
Screw
Long
Mounting
Screw
(1 1/4”)
Short Mounting
Screw (7/8”)
Printed Side (do not
install adhesive dots on
this side)
