SKU 98089 For technical questions, please call 1-800-444-3353 PAGE 18

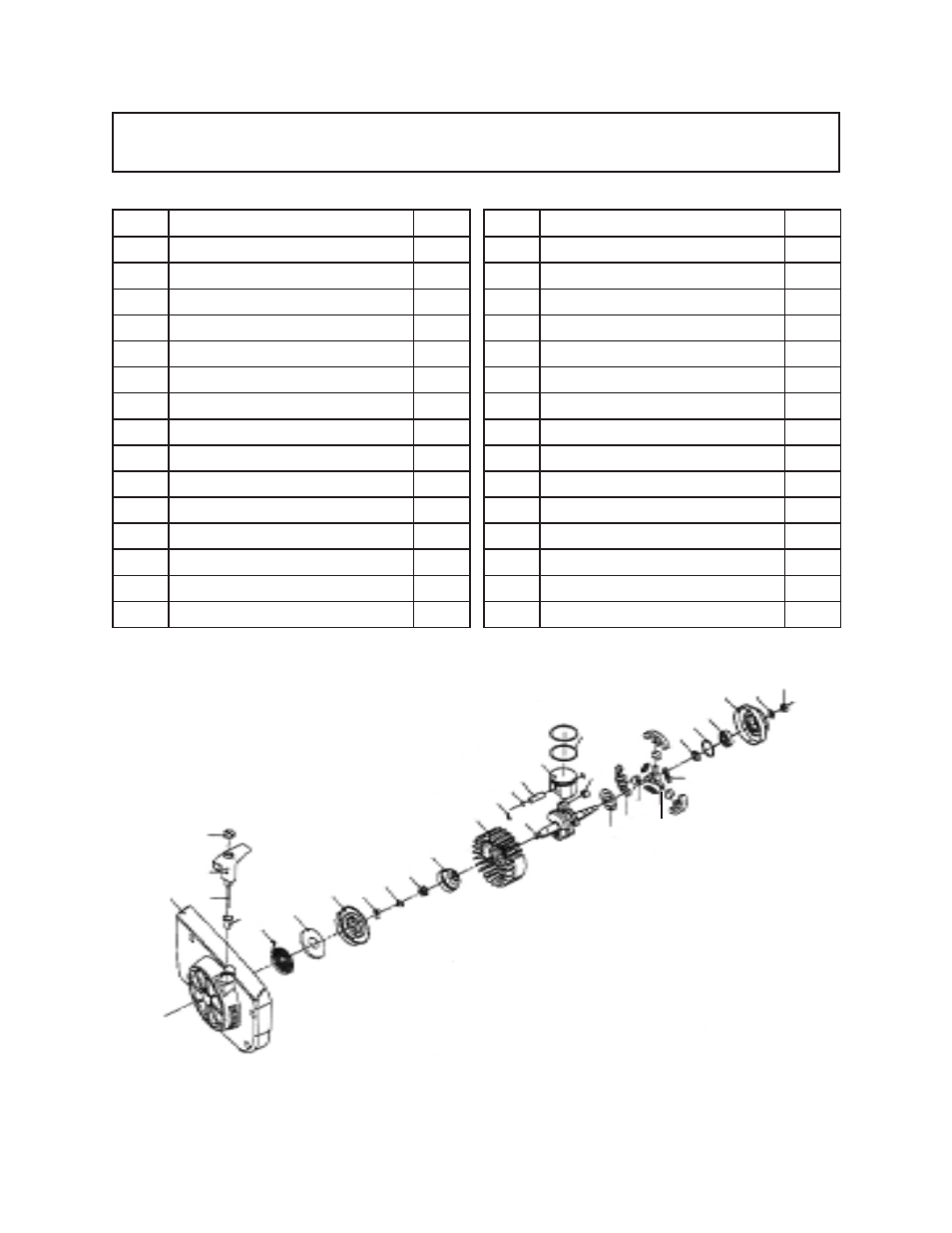

PaRTS liST/aSSemBlY DiaGRam
CRanKSHaFT & PiSTOn aSSemBlY
nOTe:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
1a
2a
3a
4a
5a
30a 6a
7a 8a 9a
10a
11a
12a
13a
31a
14a
15a
16a
17a
18a
19a
20a
21a
22a
23a
24a
25a
26a
27a 28a
29a
Part Description Q’ty.
1A Flywheel/Starter Cover 1
2A Screw Plug 1
3A Starter Grip 1
4A Starter Rope 1
5A Rewind Spring 1
6A Spring Cover 1
7A Rope Rotor 1
8A Pawl 1
9A Spring Clip 1
10A Collar Nut 1
11A Starter Cup 1
12A Flywheel 1
13A Crankshaft 1
14A Locking Clip 2
15A Piston Pin 1
Part Description Q’ty.
16A Piston 1
17A Piston Ring 2
18A Needle Cage 1
19A Washer 1
20A Clutch Shoe 3
21A Retainer 3
22A Clutch 1
23A Tension Spring 3
24A Ring 1
25A Retainer Ring (30) 1
26A Bearing (6200) 1
27A V-Belt Pulley 1
28A Washer 1
29A Collar Nut (M8 x 1) 1
30A Rope Bushing 1
