CHAPTER 2
Setup and Configuration
Roadster Orbital Head System User Manual 9
System Setup
Mounting
The Roadster Orbital Head system ships with a mounting bracket adapted to the Christie
Roadster S+12 or S+16 high output video projectors. The Orbital Head must be able to rotate
freely. Choose from the recommended lens options to avoid impeding Orbital Head
movement, (see Projector Lens Options on page 4).
Mounting the Orbital Head
To mount the Orbital Head to the projector:

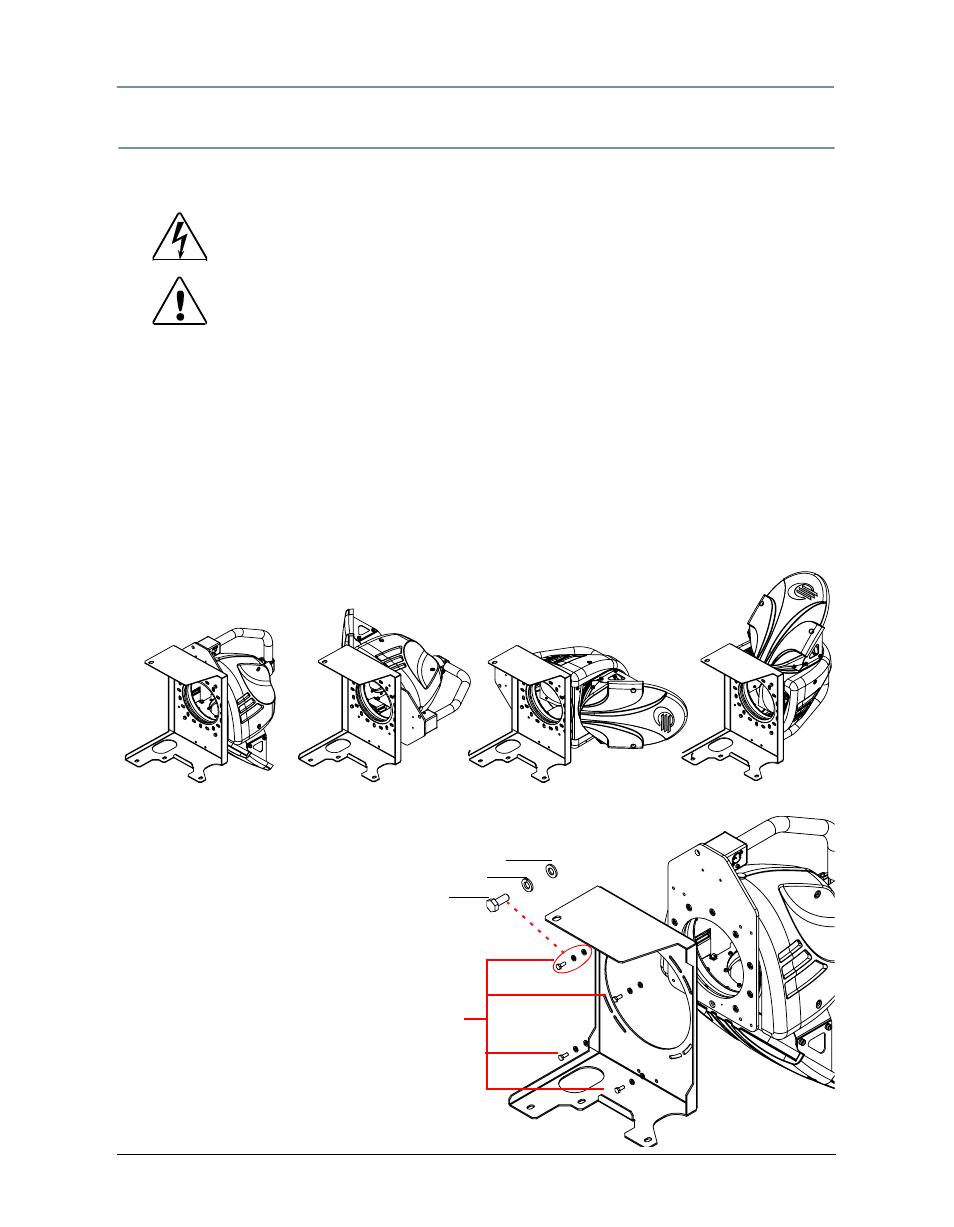

1. Choose from the four available orientation options:
2. Mount the bracket to the
Orbital head using four M6 x
16 mm hex bolts with lock
washers and flat washers (A).
Warnings: Equipment suitable for dry locations only. Do not
expose this equipment to rain or moisture.
Caution: If mirror surface needs to be cleaned during setup
procedure, use only a mild glass cleaner (containing
no ammonia) and a soft, lint-free cotton cloth to
avoid scratching mirror surface.
Standard 90 Degrees 270 Degrees 180 Degrees
A
Bolt
Lock washer
Flat washer
