CHAPTER 1
Product Overview
4 Roadster Orbital Head System User Manual
Power Hub

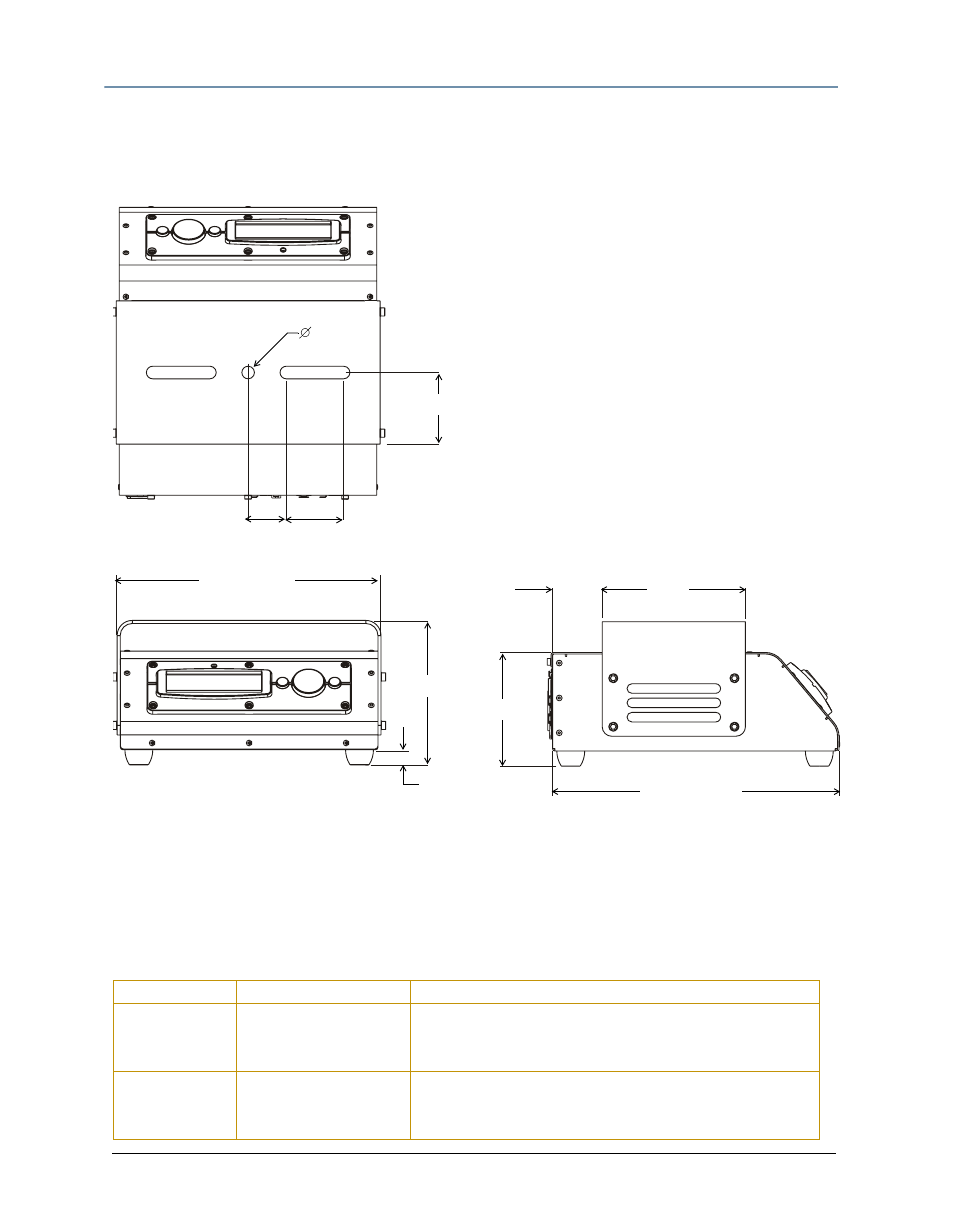

Dimensions: 276 mm x 301mm x 120mm (10.9in x 11.8in x 4.7in).
Weight: 2.3 kg (5 lbs)
Roadcase
Dimensions (including casters): 1150 mm x 622 mm x 660 mm (45 in x 24.5 in x 26 in)
Weight (with components loaded): 71.7 kg (158 lbs)
Projector Lens Options
Christie Digital Roadster S-12K or S16K with one of the following lens options:
Christie Part # Lens Description
38-809091-01 2.5-4.5:1 Zoom Lens When used with the SXGA+ products, this lens has
a 2.5-4.5:1 throw ratio. If used with the DW3K or
DW6K, the lens will provide a 2.8-5.0:1 throw ratio.
38-809092-01 4.5-7.3:1 Zoom Lens When used with the SXGA+ products, this lens has
a 4.5-7.3:1 throw ratio. If used with the DW3K or
DW6K, the lens will provide a 5.0-8.0:1 throw ratio.
75 mm
(3 in)
60 mm
(2.4 in)
40 mm
(1.6 in)
276.4 mm (10.9 in)
15.5 mm (.6 in)
13.2 mm
(.5 in)
151 mm
(5.9 in)
300.7 mm (11.8 in)
150 mm
(5.9 in)
52 mm
(2.1 in)
119 mm
(4.7 in)
