fig 13
Component List: 1 Tent Body, 6 Wall Poles, 3 Roof Poles, 2 Brim Rods,
1 Fly with Guy Ropes, 1 Carry Bag, 1 Stake Bag/Stakes, 1 Pole Bag
2. Assemble the shock
corded poles and divide
according to size and shape.
Take care; make sure that
each pole section is fully
seated into the next. Do not
allow the sections to snap
together as this can damage
the ends. See fig 2.
1. Remove from the carry bag and separate all the components. Unroll and unfold the
tent fabric with the top side up, on a clean, dry space and open the doors. If windy,
stake down the windward corner. This is a large tent, you will need two people for
set-up. See fig 1.
4. Raise the tent. Start on one end and insert
black wall poles into the corner elbows. At
the bottom of each pole, insert the pin/ring
(attached to the corner web) into the
bottom of each pole. Repeat on the other
end. Next, install the tan poles at the
center. With the tans, it works best to insert
the ring/pin first and then fit the pole into
the elbow. See fig 6, 7 & 8.
Repeat on the other side until the tent is at
full height and freestanding.
5. Attach all clips to the wall poles. See fig 9.
6. Stake the tent down through the web loops.
Stake opposite corners while applying tension to
smooth the floor wrinkles. Next, align the center
poles and stake down. Do this before you add the
fly
. See fig 10 & 11.
Take Down: Pull up all stakes. Release the fly’s hook & loop straps and J-hooks.
Remove fly. Remove clips from wall poles and pull poles off of the pins.
Remove roof poles. Collapse all poles and stow. Fold the tent onto itself then
fold the fly and lay it on tent. Roll up both towards an open door and stow.
Options: Floor Saver- med. square, Gear Lofts- A & F, and a 120v Rope Light
7. Attach the fly to the tent. Turn the fly right side up and orient
it along the length of the tent. Grasp two corners of the of the
fly and drag them up and over the roof to completely cover the
tent. (This is much easier with two people.) The brim rod
sleeves should hang out over the tent ends. At the wall poles,
reach under the fly and attach the hook & loop straps to the
poles just below the elbow and down the length of the poles,
securing the fly in place. See fig 12.
8. Attach the brim rods. At
one end of the tent, reach
under the fly and slide an
assembled brim rod
through the sleeve. See fig
13. Locate the grommets at
the corner of the tent and
insert the tips of the brim
rods into these grommets.
Repeat at other end. See
fig 14.

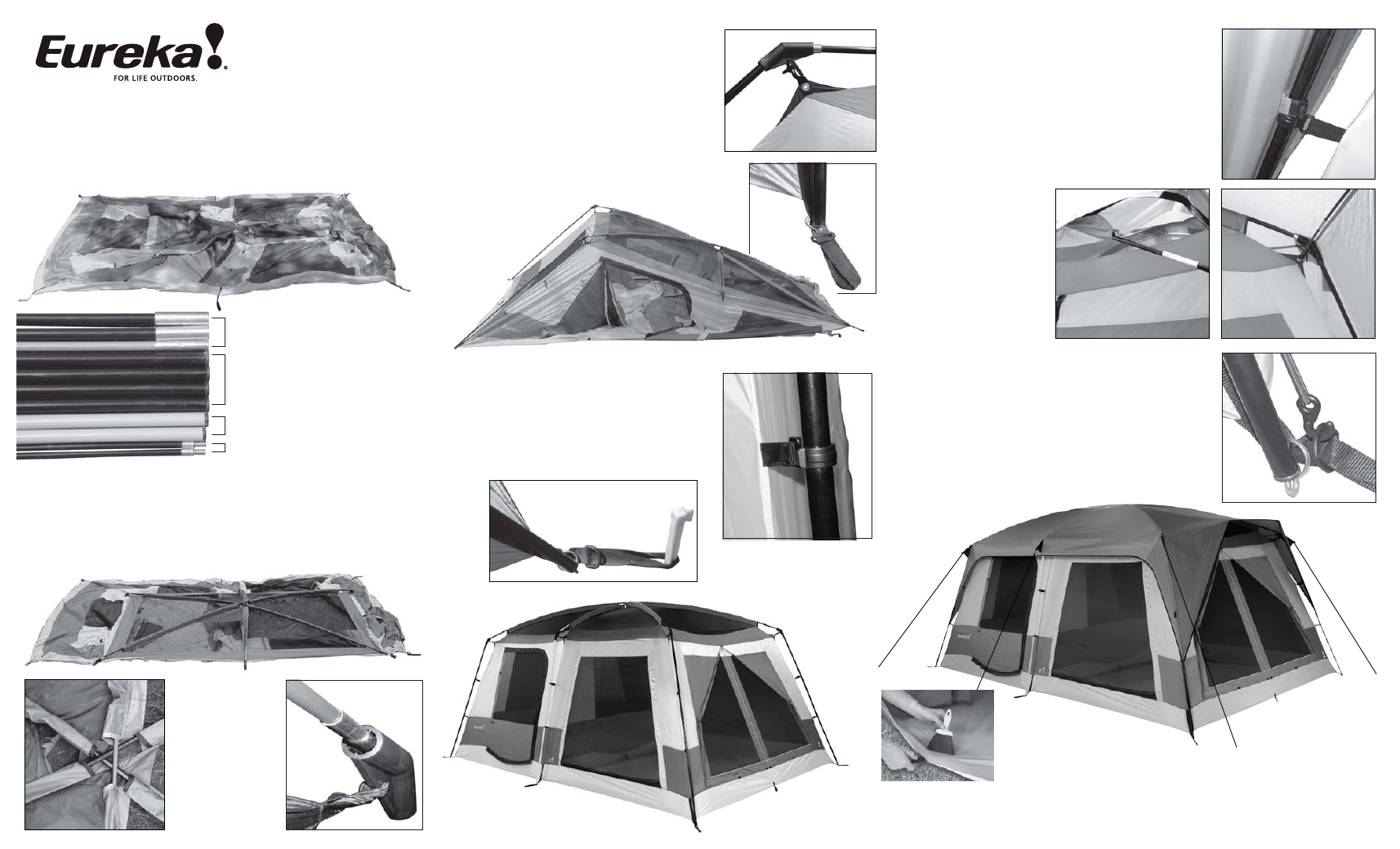

Assembly Instructions for
Copper Canyon 1610
C
B
A
E
F
D
fig 2
fig 1
fig 3
fig 5
fig 6
fig 11
fig 12
fig 15
fig 14
fig 16
fig 17
fig 7 fig 8
fig 9 fig 10
3. Insert the roof poles. Slide both black roof poles into their sleeves sewn on the tent
body. They should run from corner to corner crossing in the center. The sleeves are color
coded with black trim. Fit one end of each into a nylon elbow attached to the roof corners
at A and B. Move to the opposite side, arch the poles and again fit into the nylon elbows
at C and D. Insert the gray roof pole, front to back, into the remaining sleeves and over
the two black poles. Fit the gray poles into the elbows at E and F. See fig 3, 4 & 5.
REV. B 4.09
NOTE: One arm of
each center elbow
has interior ribs.
The gray roof poles
insert into the
ribbed arms. Wall
poles insert into
the plain arms.
fig 4
9. Attach the shock corded J-hooks from the fly to the nylon
rings on the webs at the bottom of the poles. See fig 15.
10. Guy out the tent. This tent has very large straight walls that
act differently in high winds. There are pre-attached guy out
ropes in the pockets on the fly at the top of each pole. Stake
out the ropes and adjust tension with the sliders. Additional guy
out instructions on the back side of this sheet. See fig 16.
11. Tent door has “Sweep Out” feature. Stake the web loop
(inside the door) to the ground to easily whisk dirt out of the
tent. See fig 17.
Brim Rods
Center
Wall poles
Corner
Wall poles
