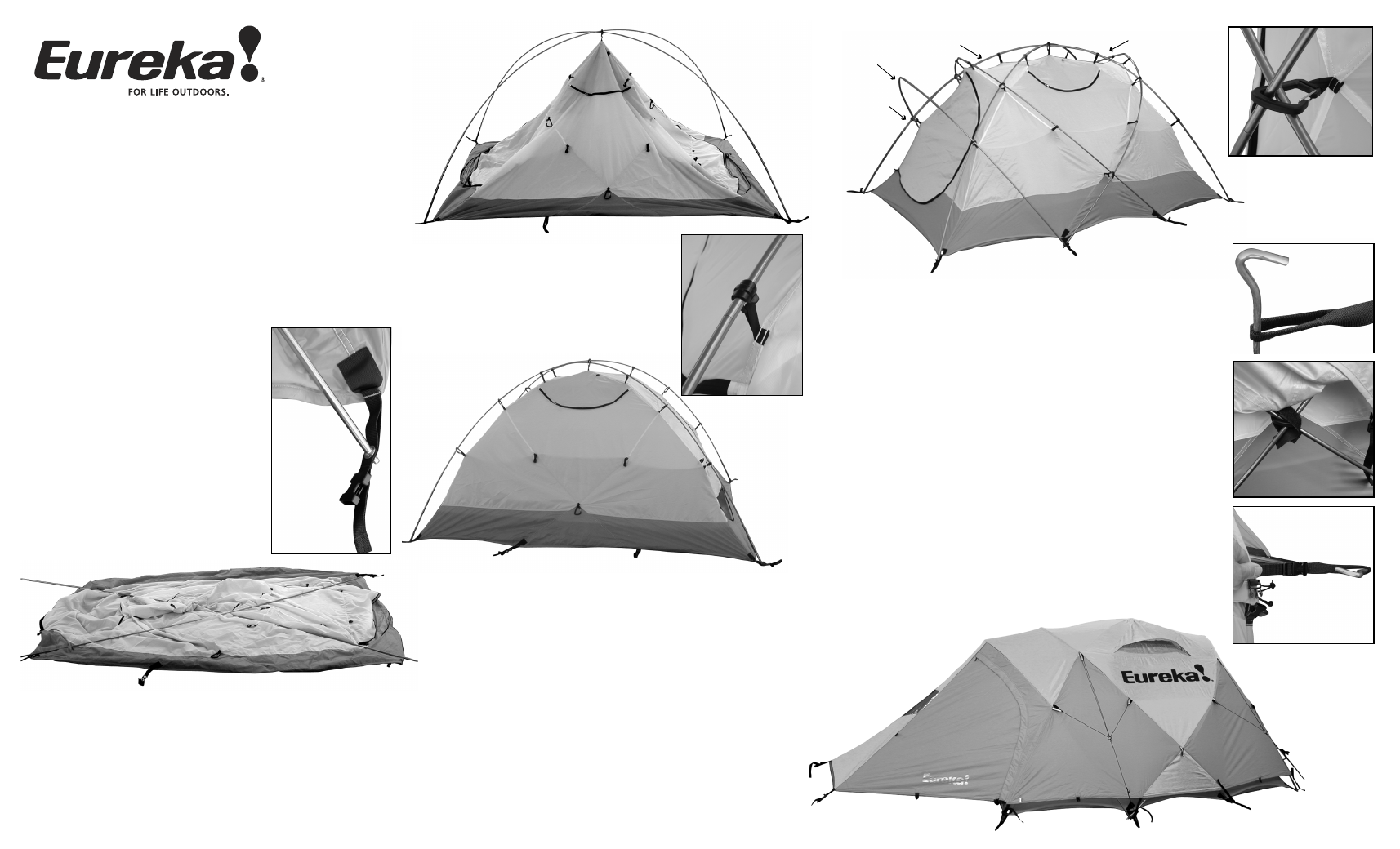

ASSEMBLY INSTRUCTIONS
FOR THE HIGH CAMP TENT
Component List:
1 Tent Body w/attached guy ropes 1 Brim Rod 4 Tent Poles
1 Carry Bag 1 Pole Bag 1 Bag w/ Stakes
Assembly:
1 Unpack the carry bag and separate the
components. Unfold the tent body and lay it out
with the floor on the ground and a grommeted web
in each corner. Pull the tent into a rough rectangle.
Do not stake down the tent just yet; but in windy
conditions, stake down one corner that faces into
the wind.
2 Assemble the shock corded Gold tent poles and
Orange brim rod. Carefully seat
each section. Try to keep the poles
from snapping together as this can
damage the ends. Divide the Gold
poles according to size and shape.
Set the Orange rod aside.
3 Insert the tent poles into the web
grommets.
• Near each side of the door, insert
a long Gold pole into the web
grommet. See fig.1.
Then arrange the poles diagonally
across the tent from A to B and C
to D. See fig.2.
6 Install all remaining poles, clips and carabineers.
• Slide a Gold pole through the two carabineers at the
top of the door. Seat the post into the grommet on the
side web at E. On the direct opposite side at F, grasp
the end of the pole and push it up to form an arc.
Insert the post into the web grommet at F and attach
the clips.
• Continue with the next Gold pole from G to H.
Note: Seat the posts into the first grommet on the side
webs. Whenever poles cross,capture both with the
carabineers. See fig.6.
• Slide the Orange pole through the two carabiners in
front of the door. Seat the post into the outside
grommet on the side web at G. On the opposite side I
grasp the end of the pole and push it up to form an
arc. Insert the post into the web grommet. See fig.7.
8 Attach the fly to the tent.
• Spread the fly on the ground. Find the corner with reflective
web and attach it to that corner of the tent with matching
reflective web. Drape the fly, right side up, on top of the
tent so that the vestibule covers the door.
• Reach under the fly and attach all the Velcro ® tabs to the
poles. See fig.9.
• Connect the side release buckles on the fly to their mates
on the tent.
• Move to the rear of the tent. Use the yellow stakes to stake
out the web loop on the back vestibule, but do not adjust
the tension just yet. Go to the front of tent and stake out
the two web loops on the front vestibule.
9 Adjust the tension on the webs. Work your way around the
tent, tighten the web buckles until the fly/vestibule is taut.
See fig. 10.
10 Stake out the attached guy lines and adjust the sliders to
a proper tension.
See fig.11.
REV B 4.09
Fig.3
Fig.4
Fig.5
Fig.6
Fig.8
Fig.7
7 Stake the tent down. Your tent is now free standing.
Place it in the desired location and stake it down with
the aluminum skewers. See fig. 8.
5 Clip the fabric to the tent poles.
Working your way around the tent,
attach those carabineers and pole
clips that align with the poles. See
fig.4 and 5.
4 Raise the tent.
• At B, push the pole from B to A to create an arc. Insert
the locking post into the grommet on web to maintain
tension.
• Repeat with the second pole from C to D.
• Lift both poles over the center of the tent. Lift the
center carabineer on the tent fabric and capture both
poles with the carabineer. Make sure the carabineer is
locked in place. See fig.3.
Orange Brim
Rod
Fig.9
Fig.10
