Eureka N!ergy 1310 - Manual

Fly pole
Roof poles
Center roof
pole
Center
Wall poles
Corner
Wall poles
Component List:
1 Wired Tent Body with Guy Ropes, 6 Wall Poles, 3 Roof Poles, 1 Fly Pole, 1 Fly,
1 Divider Curtain, 1 Carry Bag, 1 Stake Bag/Stakes and 1 Pole Bag
2. Assemble the shock corded
poles and divide according to size
and shape. Take care; make sure
that each pole section is fully
seated into the next. Do not allow
the sections to snap together as
this can damage the ends.
See fig 2.

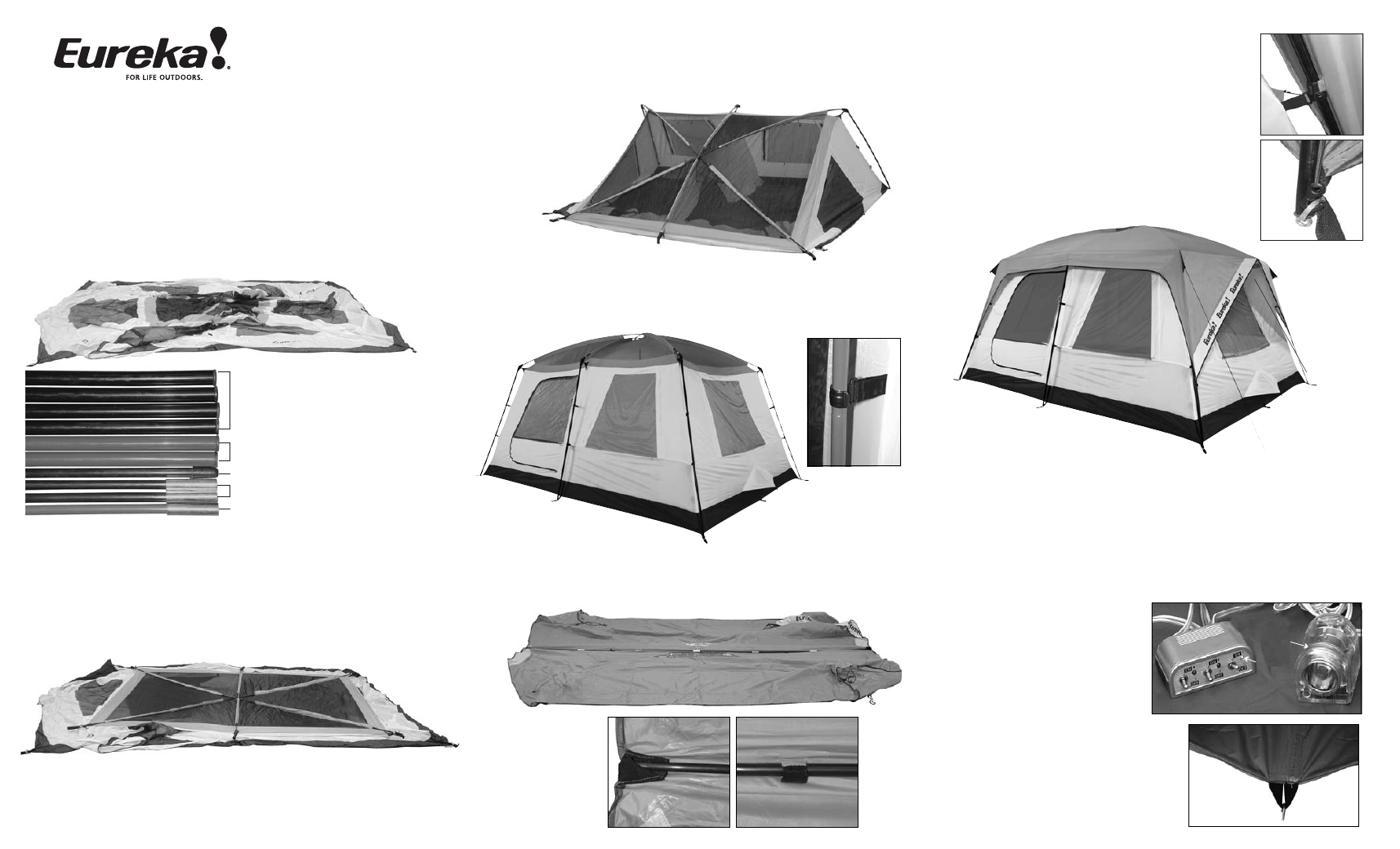

1. Remove from the carry bag and separate all the components. Unroll and unfold the
fabric top side up, on a clean, dry space and open the doors. If windy, stake down the
windward corner. See fig 1.
4. Raise the tent. Start on one side and insert black wall poles into the corner elbows. At
the bottom of each pole, insert the pin/ring (attached to the corner web) into the bottom
of each pole. Next, install a blue pole at the center. With the blues, it works best to insert
the ring/pin first and then fit the pole into the elbow. See fig 4.
Repeat on the other side until
the tent is at full height
and freestanding.
5. Attach all clips to the wall poles. See fig 5.
Stake the tent down through the corner web loops. Stake opposite corners while
applying tension to smooth the floor wrinkles. Next, align the center poles and stake
down. Do this before you add the fly
. See fig 6.
6. Attach the fly to the pole. Lay out the fly with the inside side up, on ground at the
front of the tent. Fit the fly pole into the pockets sewn to the hem. The pole runs from
side to side down the center of the fly. Secure the fly to the pole by wrapping the hook
& loop fasteners around the fly pole. See fig 7, 8 and 9.
7. Attach the fly to the tent. Turn the fly assembly over and align it
so that the pole ends point to the side windows. Grasp the corners
of the of the fly and drag them up and over the roof poles to
completely cover the roof. (This is much easier with two people.)
The end of the poles should point out over the windows.
At the corners of the tent, reach under the fly and attach the hook &
loop straps to the wall poles, securing the fly in place. See fig 10.
At the bottom/corners of the tent, attach the shockcorded J-hooks
to the nylon rings on the corner web loops. See fig 11.
8. Stake out the attached guy ropes and adjust tension with the
in-line sliders. Also, there is a vent beneath each of the side
windows. Attach the included cords and stake out. See fig 12.
Assembly Instructions
for the N!ergy 1310 Tent
YOUR TENT IS READY !
C
B
A E
F D
fig 2
fig 1
fig 5
fig 3
fig 6
fig 11
fig 12
fig 7
fig 8 fig 9
fig 10
3. Insert both black roof poles into the sleeves sewn on the tent body. They should run
corner to corner crossing in the center.
Fit one end of each into a nylon elbow attached to the roof corners at A and B. Move to
the opposite side, arch the poles and again fit into the nylon elbows at C and D.
Insert the blue roof pole, front to back, into the tan color coded sleeves from E to F.
See fig 3.
fig 4
REV. D 4.09
fig 14
green
blue
fig 13
E! Power System: To use, you will need a power source. Our E! Power Pak™ is sold
separately. Once connected to power, the control will display “green” at any switch that
is “ON” and the “ON” socket will glow blue. See fig 13.
E! Power Port: Open zipper and run extension cord through opening. Close zipper so that it
rests next to the extension cord. Make sure the zipper cover is not twisted or tucked. The
cover must lay flat against the outside of the tent to keep out rain.
Accessories: E! Power Fan/Light, E! Power Reading Light and an E! Power 12v
Adapter Cord.
Sweep Out: Inside, at the bottom of the
door is a sewn-in web loop. Pull this loop
to the outside and stake it down to
provide a ready exit for floor sweepings.
See fig 14.
Take Down: Pull up all stakes. Release the
fly’s hook & loop straps. Remove fly.
Remove fly poles. Remove clips from tent
poles and pull poles off of the pins.
Collapse all poles and stow. Fold the tent
onto itself then fold the fly and lay it on
tent. Roll up both towards the open door
and stow.
Read the important safety instructions
on the reverse side.
NOTE: Although it is possible to pitch this tent alone, it is faster/easier with two people.
• Do not drop tent bag or pole bag on its end. Do not bounce tent bag on its end to get the
tent out. These actions may cut the shockcord and/or damage the pole ends.
• The N!ergy series tents are pre-wired with three 12V outlets. Take care to keep them in
their sleeves and avoid stepping on the sockets and wires during assembly.
