Appendix

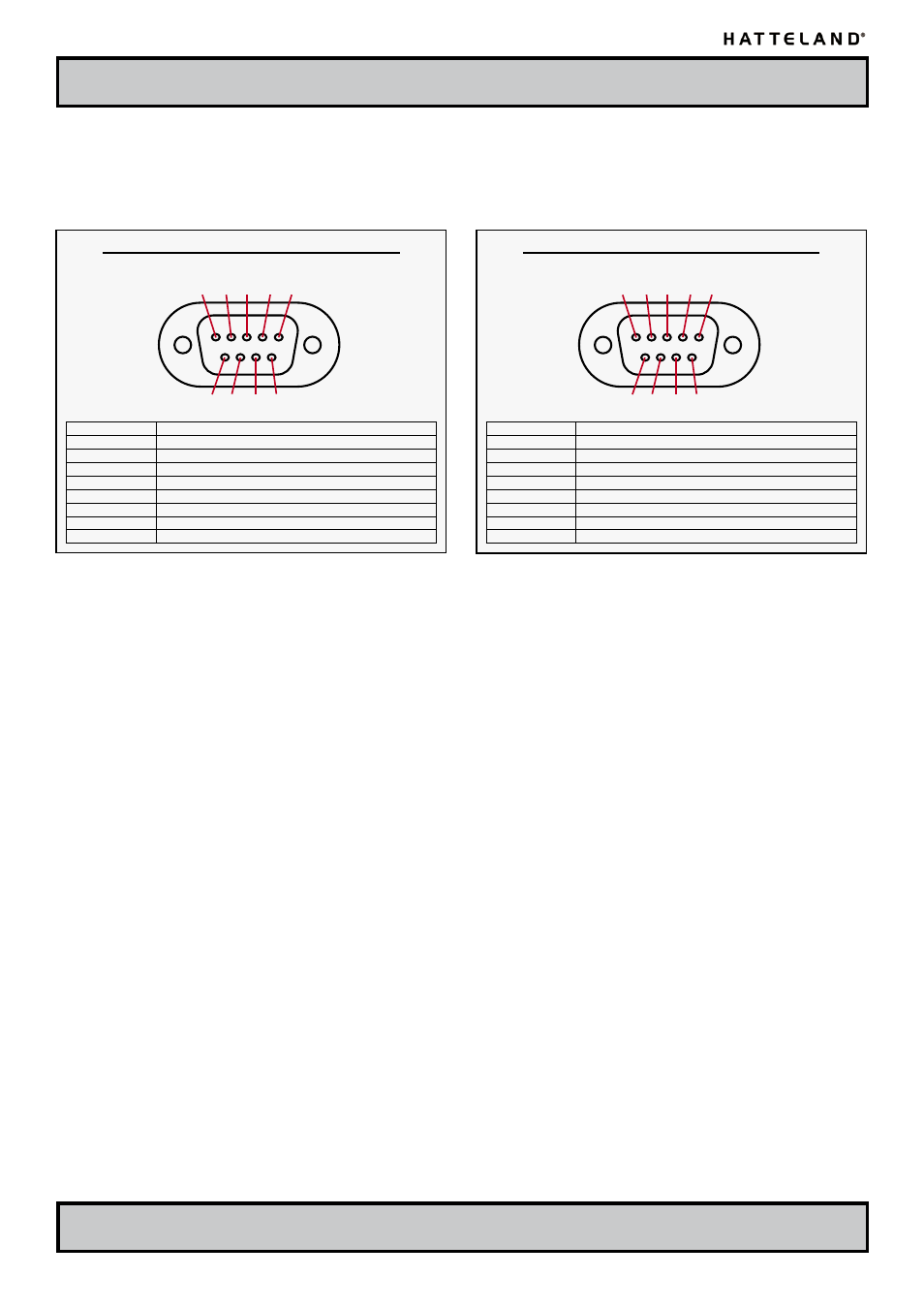

Pin Assignments - 9P Serial COM RS22
Pin 01 - N/C
Not Connected
Pin 02 - TX-
Transmit Data -
Pin 03 - RX+
Receive Data +
Pin 04 - N/C
Not Connected
Pin 05 - GND Ground
Pin 06 - N/C
Not Connected
Pin 07 - TX+
Transmit Data +
Pin 08 - RX-
Receive Data -
Pin 09 - N/C
Not Connected
5 2 1
9 7
Pin Assignments - Common Connectors (Additional)
Note: These pin assignments applies for products with customer specified COM ports (factory setup).
These COM ports are configurable on the motherboard located inside the product.
Panel Computers: Attempting to config these yourselves, could result in warranty void as the main cover would have
to be removed.
Pin Assignments - 9P Serial COM RS5
Pin 01 - N/C
Not Connected
Pin 02 - N/C
Not Connected
Pin 03 - DAT+ Data+
Pin 04 - N/C
Not Connected
Pin 05 - GND Ground
Pin 06 - N/C
Not Connected
Pin 07 - N/C
Not Connected
Pin 08 - DAT- Data-
Pin 09 - N/C
Not Connected
5 2 1
9 7
