General Installation Recommendations
Installation
- The impairment of read-out from a display screen by direct light from lamps or the sun must be
avoided. Rear windows must be blacked out by means of roller blinds or Venetian blinds.
- Disturbing reflections on the screen of a display caused by pilot lamps and illuminated signs must
be prevented by suitable measures (screening or relocating).
- When a product is being installed, the surface base or bulkhead must be checked to ensure that it
is flat in order to avoid twisting of the unit when the fixing screws are tightened, because such
twisting would impair mechanical functions. Any unevenness should be compensated for by
means of spacing-washers.
- The grounding screws of the units must be connected to the body of the ship (ground); the wire
used should have a cross sectional area of at least 6 mm
2
.
- Transportation damage, even if apparently insignificant at first glance, must immediately be
examined and be reported to the freight carrier. The moment of setting-to-work of the equipment
is too late, not only for reporting the damage but also for the supply of replacements.
Cables
Use only high quality shielded signal cables. For RGB/DVI cables use only cables with separate
coax for Red, Green and Blue. Jakob Hatteland Display can supply a varity of high quality RGB/
DVI, RS232, PARALLEL, LAN and USB cables intended for this use.

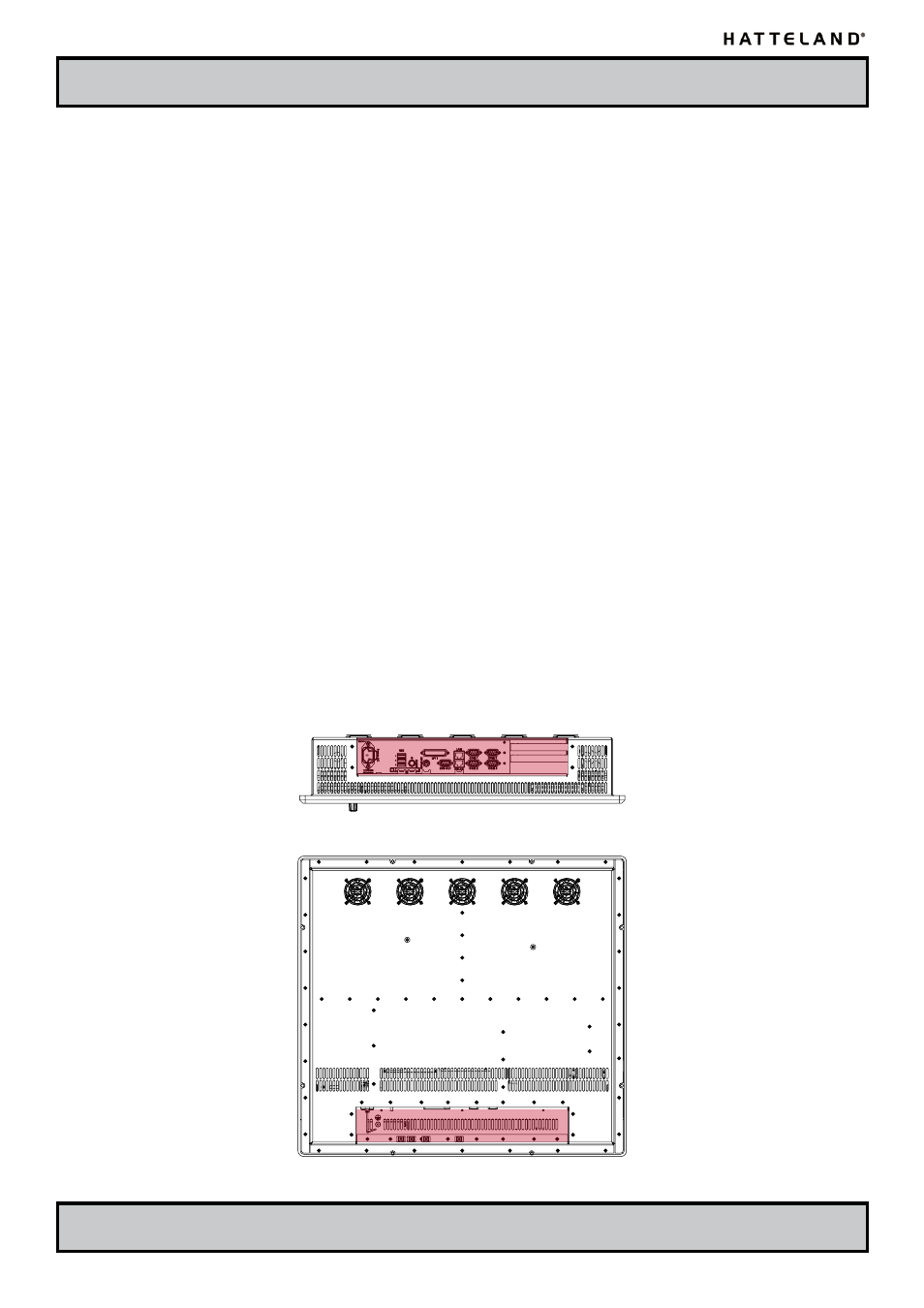

Cable Entries & Connectors (Marked area) - Illustration only
Bottom View
Back View
