24
ƒ Enable IPsec pass through on VPN connection: Place a check in this box to
enable the pass through of PPTP packets on a VPN connection.
ƒ Enable IPsec pass through on VPN connection: Place a check in this box to
enable the pass through of L2TP packets on a VPN connection.
ƒ Click on the Apply Changesto save the changes.

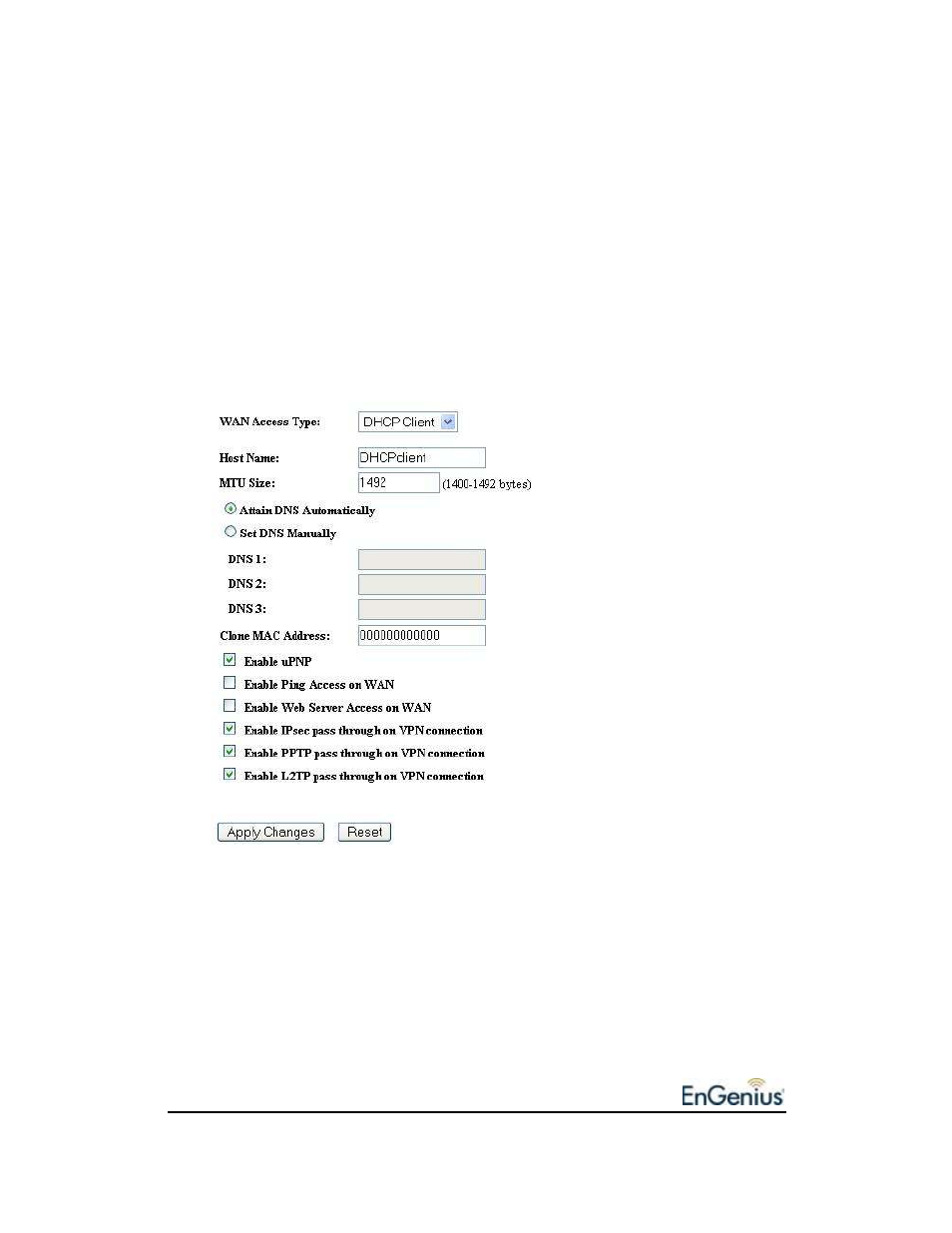

WAN Settings – DHCP Client
ƒ Click on the WAN link on the navigation drop-down menu. This feature allows you to
configure the WAN interface using a static IP address, DHCP Client, PPoE, or PPTP.
The DHCP Client feature allows the ISP to provide an IP address to the device. This
is also known as Dynamic IP.
ƒ WAN Access Type: Select DHCP Client from the drop-down list. This type of
connection is usually used when the ISP will supply the IP address and DNS settings.
This is also known as Dynamic IP.
ƒ Host Name: Specify a host name for this device.
ƒ DNS: The ISP usually automatically assigns the DNS IP address, in case you need
to assign it manually then click on the Set DNS Manually and fill in the fields.
ƒ MTU: You may adjust the Maximum Transmit Unit (MTU), however it is recommend
that this value is set to the default: 1500 bytes
ƒ DNS 1-3: Specify the IP address of the DNS server
ƒ Clone MAC Address: Specify a MAC address if you would like to use a different
MAC address on this device. (optional)
