EN
2
Installation Guide Installation Guide
IMPORTANT–Please Read and Follow!
• Please read all instructions thoroughly before installing the Built-In Microwave Hood. Two people are recommended to
install this product.
• If a new electrical outlet is required, its installation should be completed by a qualified electrician before the Built-In
Microwave Hood is installed. See ELECTRICAL GROUNDING INSTRUCTIONS on page 3.
Unpacking and Examining Your Oven
Open the bottom of the carton, bend the carton flaps back
and tilt the oven over to rest on plastic foam pad. Lift carton
off oven and remove all packing materials, Wall and Top
Cabinet Templates, Turntable and Turntable Support. SAVE
THE CARTON AS IT MAY MAKE INSTALLATION EASIER.
• Remove the feature sticker from the outside of the door,
if there is one.
• DO NOT REMOVE THE WAVEGUIDE COVER, which is
located on the right-side wall of the oven cavity. Check
to see that there is a Wall Template and Top Cabinet
Template. Read enclosures and SAVE the Use and Care
manual.
Check the oven for any damage, such as misaligned or bent
door, damaged door seals and sealing surfaces, broken or
loose door hinges and latches and dents inside the cavity
or on the door. If there is any damage, do not operate the
oven and contact your dealer or AUTHORIZED SERVICER.

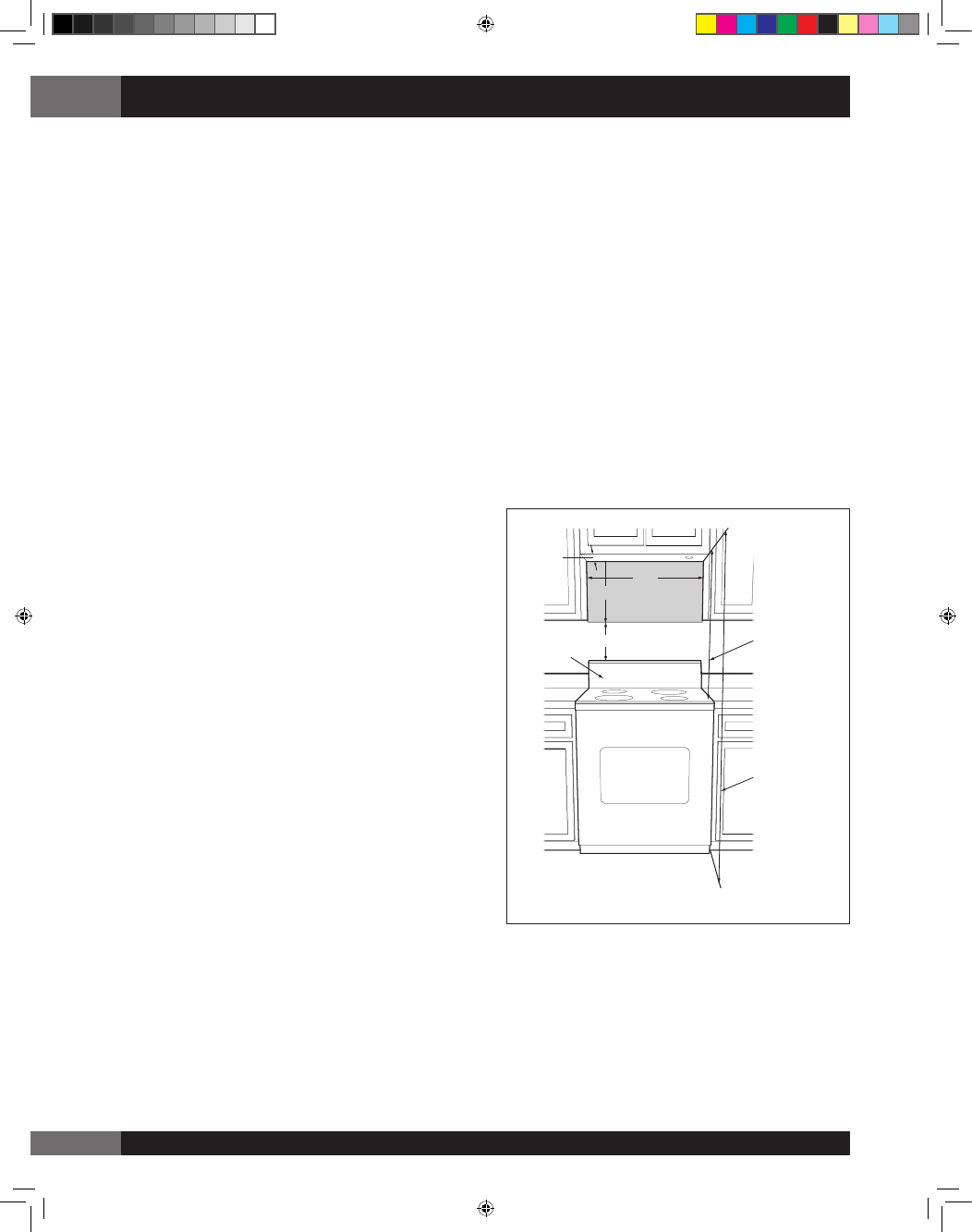

1. Mounting Space
This Built-In Microwave Hood requires a mounting space
on a wall as shown in Figure 1.
If the space between the wall cabinets is greater than
30-inches (36-inches or 42-inches) a Filler Panel may be
used to fill the gap between the Built-In Microwave Hood
and wall cabinets. The Filler Panel Kit should be installed
before the Built-In Microwave Hood is installed.
For proper installation and servicing, a 2-inch space is
necessary between the top of the range backsplash and
the bottom of the Built-In Microwave Hood.
Backsplash
At least 2"
16.3"
30"
12"
30" or more
from cooking
surface
66" or more
from floor
Figure 1
