XTRA Series • Operation
Operation, cont’d
3-12
XTRA Series
A
Appendix A
Reference
Specifications
Included Parts
Optional Accessories

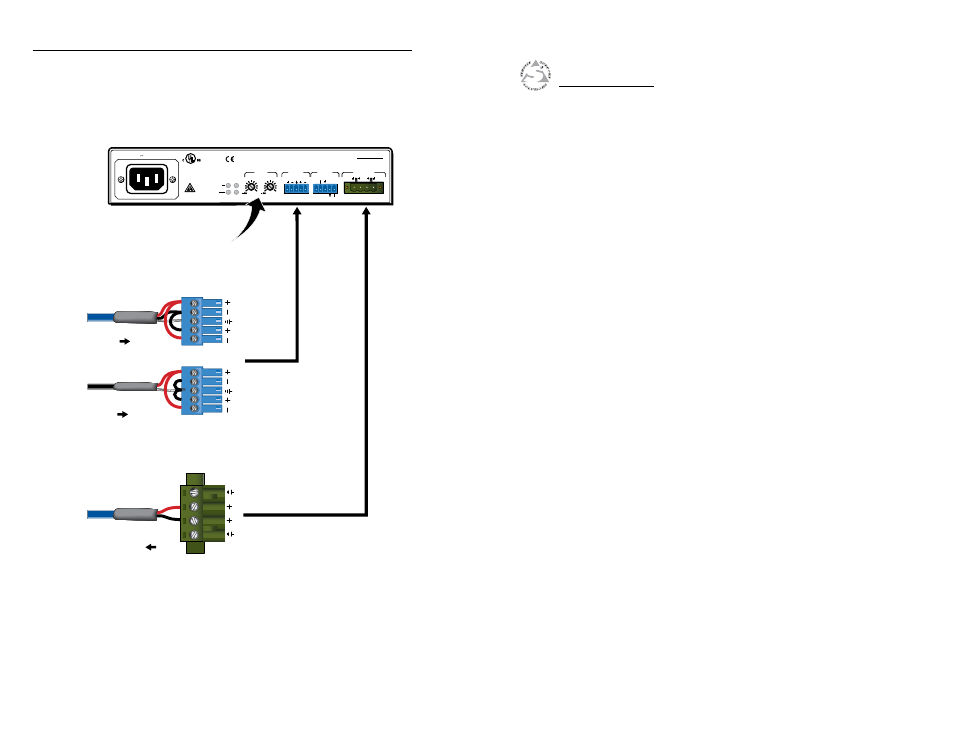

3 . Wire the input as shown in the following diagram.
4 . Adjust the input levels of channels 1 and 2 equally.
Refer to step d (level adjustment) of "Rear Panel Features
and Operation" in this chapter for more details.
100-240V 0.5A, 50-60Hz
VOL/MUTE
STANDBY CLASS 2 WIRING
1 2
LISTED 17TT
AUDIO/VIDEO
APPARATUS
XPA 1002
C US
LEVEL
1 1 2
1 2
LIMITER/
PROTECT
SIGNAL 2
INPUTS OUTPUT REMOTE
0 0
10V
1
2
1
2
1
2
Levels should be set
identically.
Input
Balanced Wiring
From
Mono
Source
From
Mono
Source
To 8/16 Ohm
Speaker Load
3.5 mm
Captive Screw
5 mm
Captive Screw
Un-Balanced Wiring
Amplified
Output
