Operator Interface Products
HM
i Operator Interface
Operator Interface

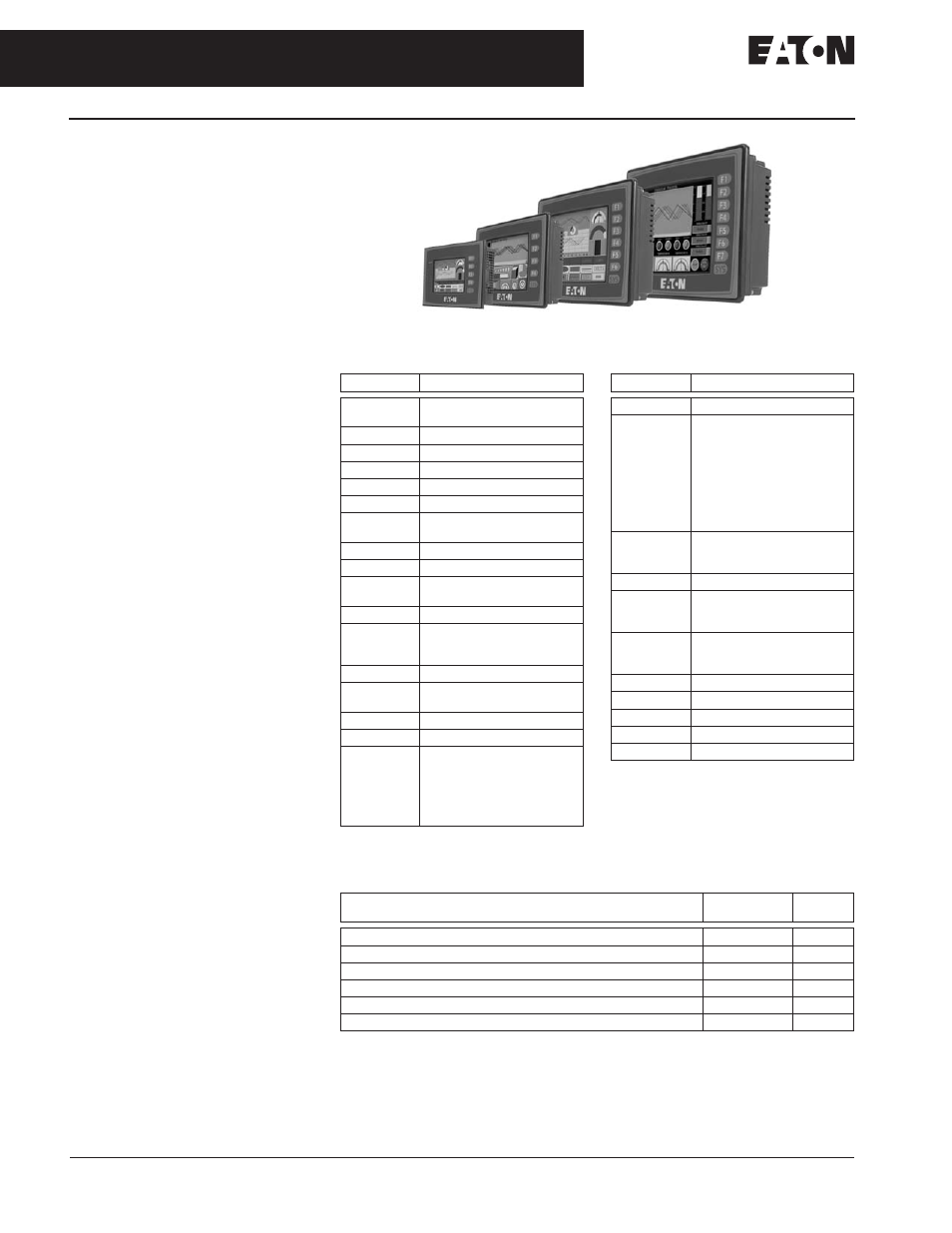

HM i Operator Interface
Product Description
Positioned between the ELC graphics
panels and the ePro series of operator
interfaces,
HM i is the work horse of the
industry. All units feature a touch-
screen and function keys to suit all
environments and applications. They
range in screen size and color to fit
available space and application needs.
All units offer RS-232, RS-485 and
RS-422 communications. The 6", 8"
and 10" units also offer Ethernet
communication with an accessory card.
Features
■ True analog touchscreen
■ Retentive internal data storage
■ Real time trending
■ Trend stored data
■ Alarming and alarm storage
■ Alarm frequency
■ Event storage (History)
■ USB programming
■ USB memory storage
■ USB printer
■ Add I/O
■ Macro programming
■ Multi-language
■ Recipe storage
■ Auto-scale application from 10 – 4"
■ On-line simulation
■ Off-line simulation
■ 8-level password protection
Protocols Supported
Table 7. Protocols Supported by HM i
Product Selection
Table 8. HM i Product Selection
Manufacturer Protocol
Allen Bradley Micro Logix
SLC 5
Danfoss VLT 2800 (FC Protocol)
Eaton ELC Series
Facon FB Series
Festo Festo PLC
GE Fanuc 90 Series SNP
Hust Hust CNC Controller
Hust CNC Controller v2
Jetter Nano Series
Keyence KV/KZ Series
Koyo DL/SU Series
K-Sequence
Lenze LECOM-A/B protocol
LG Master-K 120S/200S
Glofa GM6 CNET
Master-K CNET
Li Yan LYPLC EX
M2i M2i Master
M2i Slave
Matsushita FP Series
Mirle FAMA SC
Mitsubishi FX Series
FX2N
A Series/J71UC24
A2A/A2AS/A2USH
A1SH/A3N/A2ASH CPU Port
Q Series CPU Port
Manufacturer Protocol
MKS CT150
Modbus ASCII (Master)
984 RTU (Master)
RTU 2W (Master)
ASCII Hex Address (Master)
RTU Hex Address (Master)
ASCII nW (Master)
RTU nW (Master)
ASCII (Slave)
RTU (Slave)
Modicon TSX Micro (Uni-Telway)
NEZA (Uni-Telway)
TWINDO
NIKKI DENSO NCS-FI/FS Series
Omron C Series
CJ1 Series
TPM1A
SIEMENS S7 200
S7 300 (with PC Adapter)
S7 300 (without PC Adapter)
Taian TP02
Ti Ti435
Vigor M Series
VIPA S7 300 (with PC Adapter)
YOKOGAWA ACE
Description Catalog
Number Price
U.S. $
4" Blue Mode Touchscreen HMI04BU 336.
6" Blue Mode with Expansion Slot HMI06BE 473.
6" Gray Scale Mode with Expansion Slot HMI06GE 499.
6" Color Mode with Expansion Slot HMI06CE 730.
8" Color Mode with Expansion Slot HMI08CE 1,313.
10" Color Mode with Expansion Slot HMI10CE 1,885.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
