7. HOW TO DISPLAY
A. When displaying printed material.
1, Connect power of the unit. Blue back image appears on the monitor and then image of the
printed material will be displayed.
2. Put the printed material below the lens and operate Zoom switch watching TV monitor according
to the size of the material. ( if focus is out after zooming operation, push AUTO FOCUS switch
once. If the correct focus is not obtained yet, push Focus switch to adjust focusing manually.)

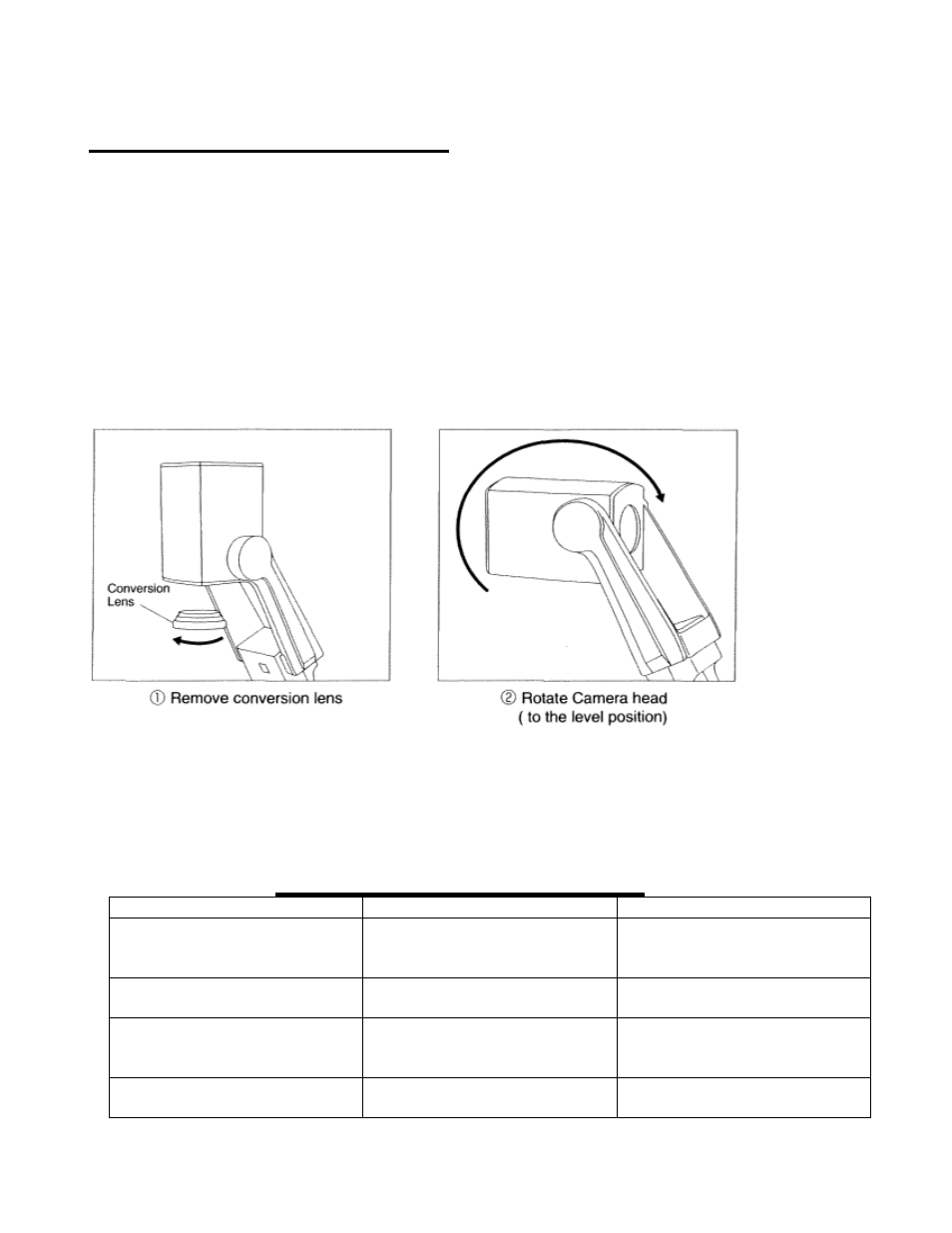

B. When displaying three-dimensional object.
Caution
When displaying shooting area without conversion lens focus may not work to get focus. When
displaying the shooting area, conversion lens is necessary to be installed.
8.
TROUBLESHOOTING
SYMPTOM CAUSE REMEDY
No Power Plug not connected to outlet
No good connection of AC
Adaptor Connect plug to outlet
Connect AC Adaptor right
No Image Power is OFF
Poor connection of video cable Connect plug to outlet
Connect video cable right
Focus is Out Subject is too close to lens Subject should not come up
more than 100mm above stage
surface
Dark Image No good Bright adjustment Adjust Brightness by remote
control
