Enerco | enerRadiant® XL Series Heater
Operating Instructions and Owner’s Manual

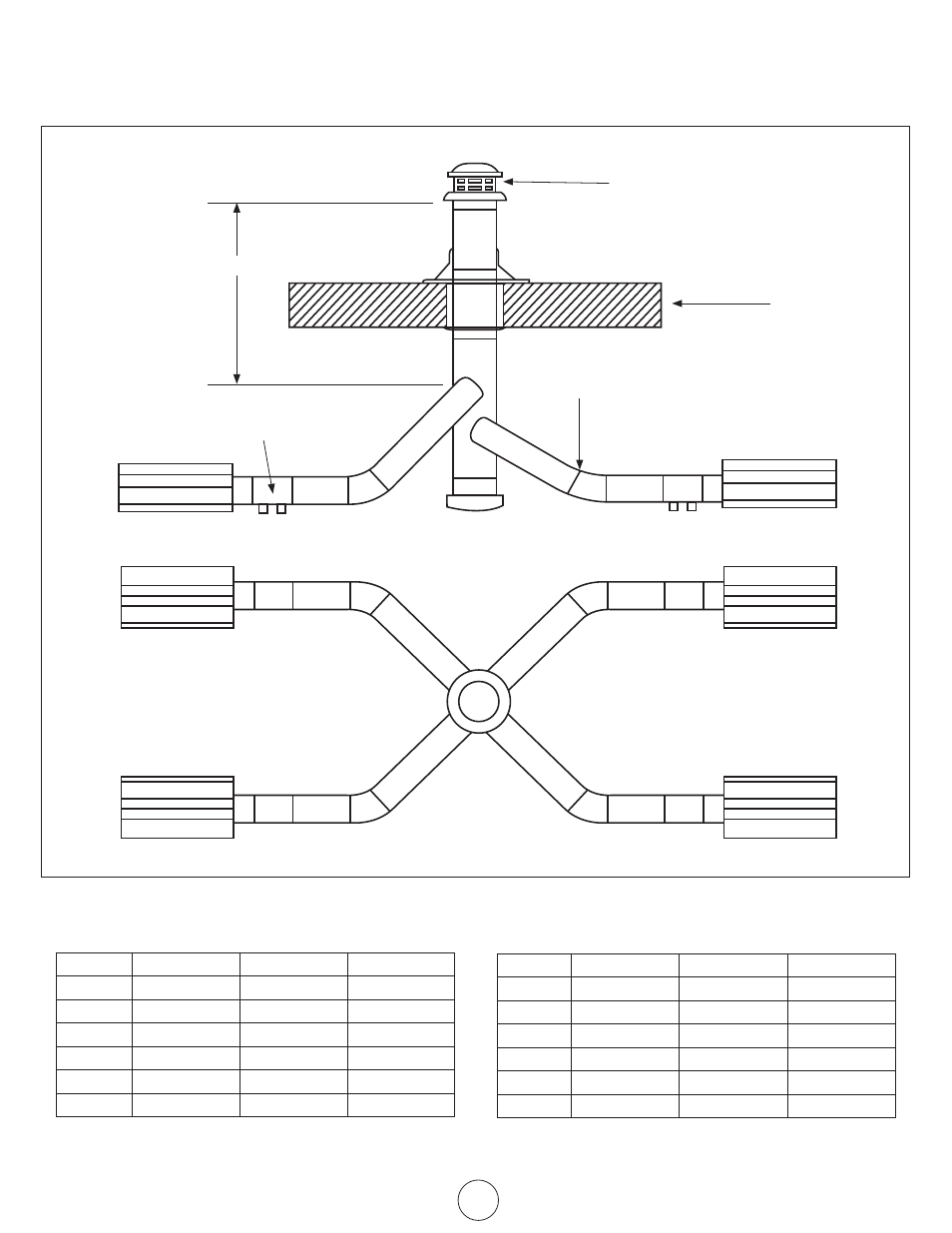

FIGURE 15: Common Roof Venting
COMMON VENTING - (2) Heaters
Model #
H = 6 ft.
H = 8 ft.
H = 15 ft.
ERXL-60
D = 7”
D = 6”
D = 6”
ERXL-80
D = 8”
D = 7”
D = 6”
ERXL-100
D = 8”
D = 8”
D = 7”
ERXL-125
D = 10”
D = 10”
D = 8”
ERXL-150
D = 10”
D = 10”
D = 8”
ERXL-175
D = 10”
D = 10”
D = 8”
COMMON VENTING - (4) Heaters
Model #
H = 6 ft.
H = 8 ft.
H = 15 ft.
ERXL-60
D = 10”
D = 10”
D = 8”
ERXL-80
D = 10”
D = 10”
D = 10”
ERXL-100
N/A
D = 12”
D = 10”
ERXL-125
N/A
D = 12”
D = 10”
ERXL-150
N/A
N/A
D = 12”
ERXL-175
N/A
N/A
D = 12”
Approved Vent Cap
Type "B" Vent required outdoors.
Roof
SIDE VIEW
Vent Adapter Stk. #19021
pLAN VIEW
At least 1/4" per foot rise or pitch
must be maintained on horizontal
runs from heater to vent.
Secure all joints with 3 (minimum) #8 x 3/8"
sheet metal screws and seal all joints.
H
