9 Installation Requirements

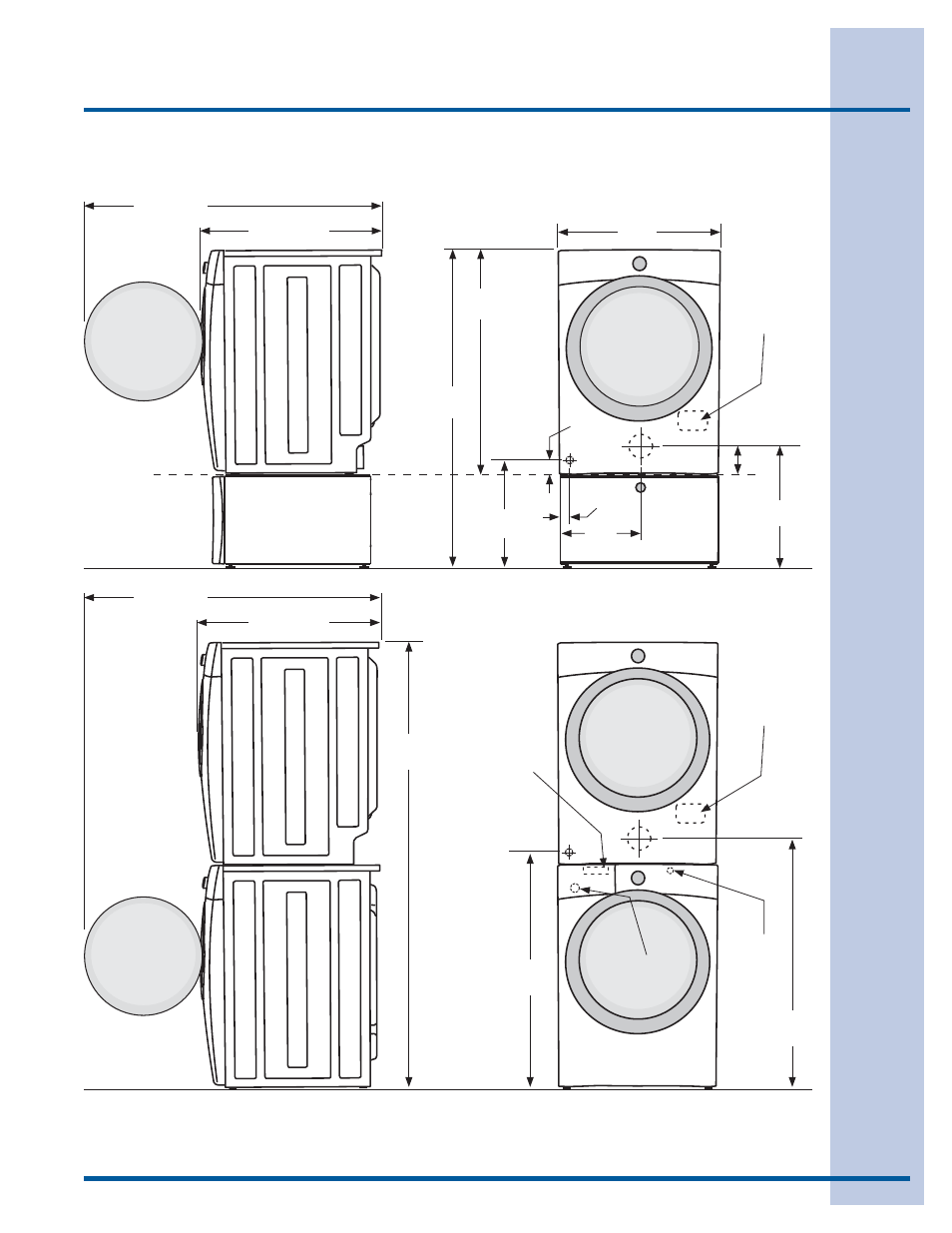

Dryer dimensions
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
1 Power supply cord length on gas dryer approximately 60 inches (152.5 cm).
2 Hot and cold inlet hose length on washer approximately 48.5 inches (123 cm).
3 Drain hose length on washer approximately 59 inches (150 cm).
4 Power supply cord length on washer approximately 60 inches (152.5 cm).
electrical
supply on
rear of unit
4
electrical
supply on
rear of unit
1
gas supply
pipe on rear
of gas unit
gas supply
pipe on rear
of gas unit
centerline
height for
rear vent
centerline
height for
rear vent
53.5” (136 cm)*
to clear open door
53.5” (136 cm)*
to clear open door
31.5” (79.5 cm)*
to front of closed door
31.5” (79.5 cm)*
to front of closed door
75.75”
(192.5 cm)
41.0”
(105 cm)
39.0”
(99 cm)
27.0”
(68.5 cm)
water supply
connection on
rear of unit
2
drain hose on
rear of unit
3
power cord on
rear of unit
4
fl oor line
fl oor line
fl oor line
13.5”
(34.5 cm)
to center of rear vent
3.75”
(9.5 cm)
freestand dryer
on fl oor
dryer mounted on
optional pedestal
38.0”
(96.5 cm)
53.25”
(135.5 cm)
19.0”
(48 cm) 17.0”
(43 cm)
1.5”
(4 cm)
3.7”
(9.5 cm)
