Electrolux Front-Load Gas & Electric Dryer 137382100 A (1106) - Manual (Page 13)

13
4-wire receptacle
(NEMA type 14-30R)
Installation Instructions

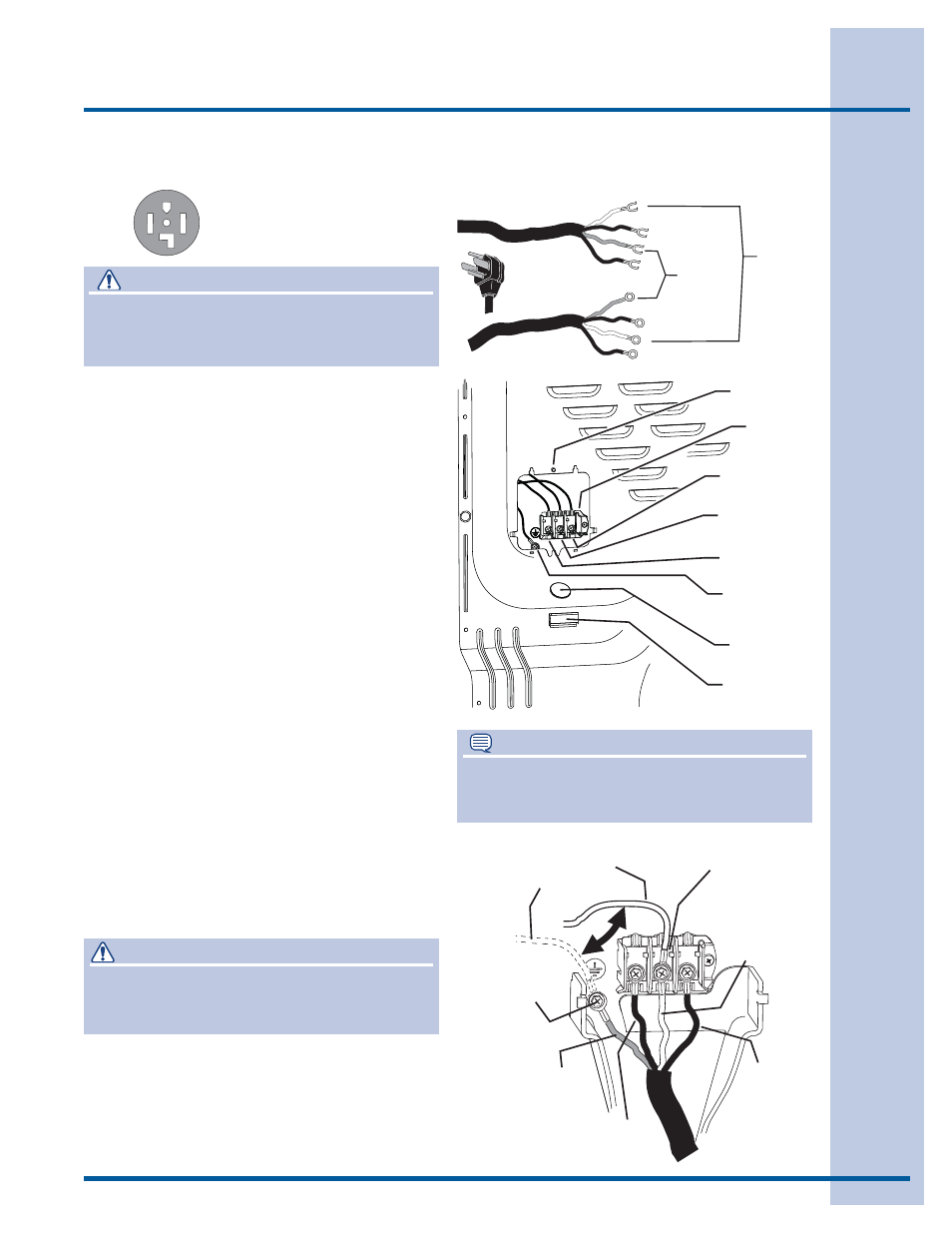

Electrical connection (non-Canada) - 4 wire cord
Turn off power supply to outlet. 1.
Remove the screw securing the terminal block 2.
access cover in the lower corner on the back of
the dryer.
Install a UL-approved strain relief according 3.
to the power cord/strain relief manufacturer’s
instructions in the power cord entry hole below
the access panel. At this time, the strain relief
should be loosely in place.
Thread an UNPLUGGED, UL-approved, 30 4.
amp. power cord, NEMA 14-30 type ST or
SRDT, through the strain relief.
Disconnect the internal (WHITE) dryer harness 5.
ground wire from the (GREEN) ground screw
next to the terminal block.
Attach the ground (GREEN) power cord wire 6.
to the cabinet with the ground (GREEN) screw.
Tighten the screw securely.
Move the internal dryer harness ground 7.
(WHITE) wire to the terminal block and attach
it along with the neutral (WHITE) power cord
wire conductor to the center, SILVER colored
terminal on the terminal block. Tighten the
screw securely.
Attach the RED and BLACK power cord 8.
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.
WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/
conductor at connections.
Internal ground Internal ground
(GREEN screw) (GREEN screw)
Install Install
UL-approved UL-approved
strain relief here strain relief here
Terminal screw Terminal screw
recovery slot recovery slot
Line 1 Line 1
(BRASS terminal) (BRASS terminal)
Neutral Neutral
(SILVER terminal) (SILVER terminal)
Line 2 Line 2
(BRASS terminal) (BRASS terminal)
Access cover Access cover
screw screw
Terminal Terminal
block block
Neutral Neutral
(WHITE wire) (WHITE wire)
30 AMP 30 AMP
NEMA 14-30 NEMA 14-30
Ground Ground
(GREEN wire) (GREEN wire)
NOTE
If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw recovery
slot below the access panel.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
Follow manufacturer’s guidelines for fi rmly 9.
securing the strain relief and power cord.
Reinstall the terminal block cover. 10.
Move internal ground (WHITE) Move internal ground (WHITE)
wire to neutral (SILVER) wire to neutral (SILVER)
terminal for 4-wire system. terminal for 4-wire system.
Neutral Neutral
terminal terminal
GREEN GREEN
ground screw ground screw
BLACK or BLACK or
RED power wire RED power wire
BLACK BLACK
or RED
or RED
power wire power wire
GREEN GREEN
ground wire ground wire
WHITE WHITE
neutral wire neutral wire
