ENVISION RESIDENTIAL INSTALLATION MANUAL

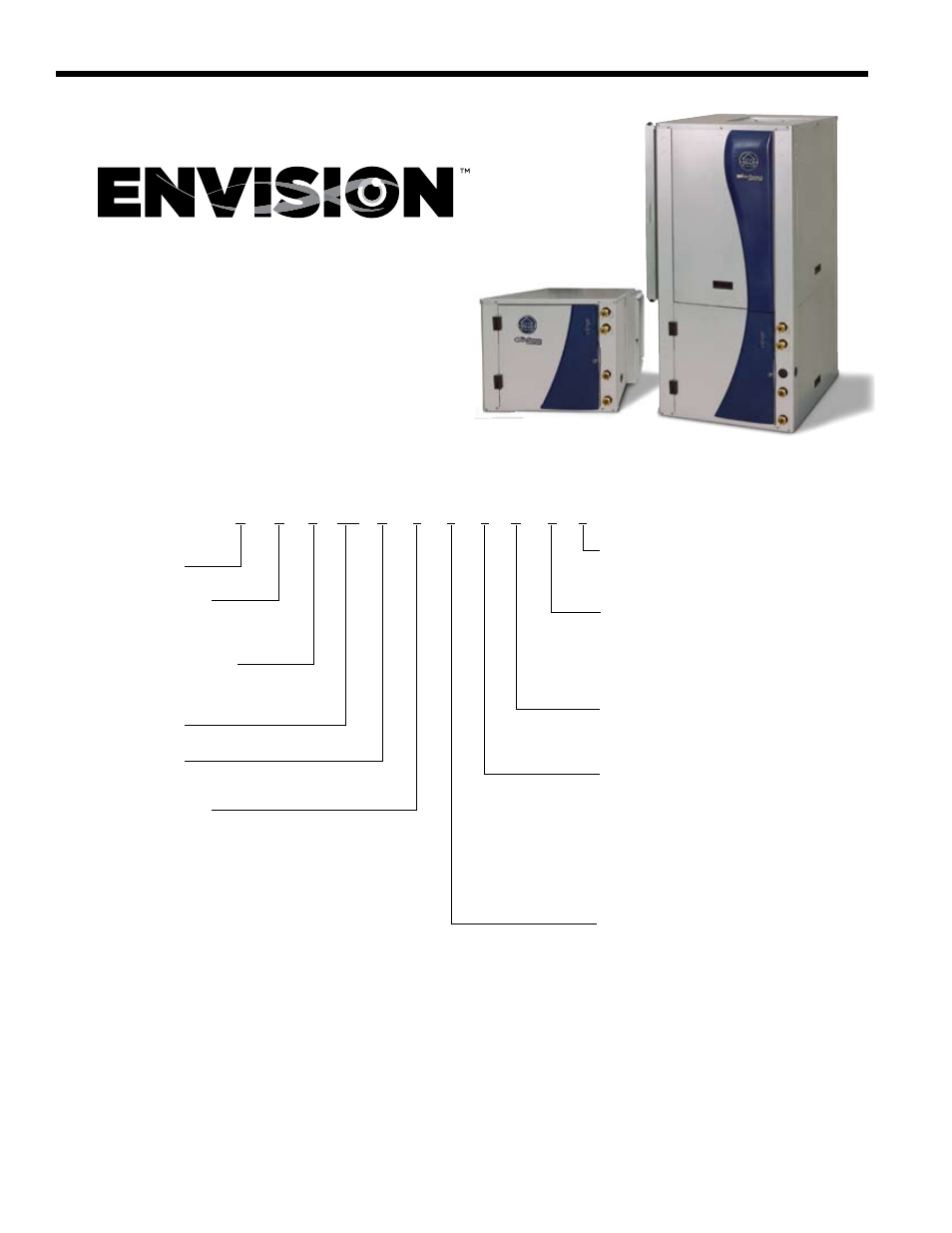

Model Nomenclature
N D V 049 A 1 1 1 C T L
Model Type Return Air Configuration
N= Envision L= Left
R= Right
Compressor Type
D= Dual Capacity
Discharge Air Configuration
S= Single Speed B= Bottom
T= Top
Cabinet Configuration S= Side
V= Vertical E= End
H= Horizontal
Coax Options
Unit Capacity C= Copper
N= Cupronickel
Vintage
A=
Current
Fan Option
0=
PSC
Voltage
1= ECM
1= 208-230/60/1
2= Oversized ECM Blower Option
(036,038,042,048,049)
3= Oversized PSC Blower Option
(022,030,036,042,048)
Hot Water Option
0=
None
1= Hot Water Generation with
factory installed pump
Notes: PSC Motor - Single Speed Only
