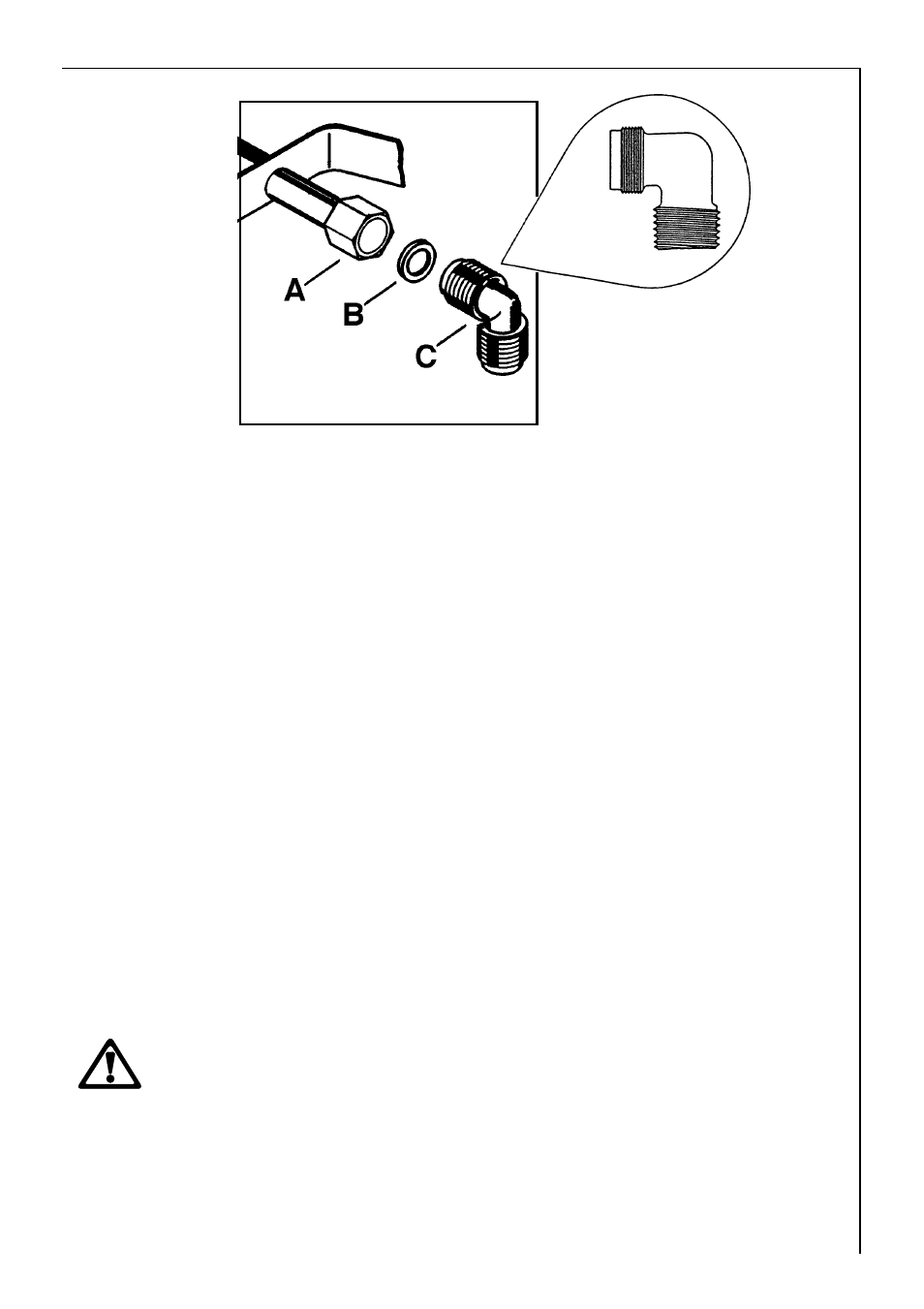

A) End of shaft with nut
B) Washer
C) Elbow
FO 0814
FO 0264
On the end of the shaft, which includes the G 1/2" threaded elbow, adjustment is fixed so that the
washer is fitted between the components as shown in the diagram. Screw the parts together
without using excessive force.
It is important to install the elbow correctly, with the shoulder on the end of the thread,
fitted to the hob connecting pipe.
Failure to ensure the correct assembly will cause leakage of gas.
Gas Connection
Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or copper.
The connection should be suitable for connecting to R 1/2 (1/2 BSP male thread).
When the final connection has been made, it is essential that a thorough leak test is carried out
on the hob and installation.
Ensure that the main connection pipe does not exert any strain on the hob.
