English - 24 -

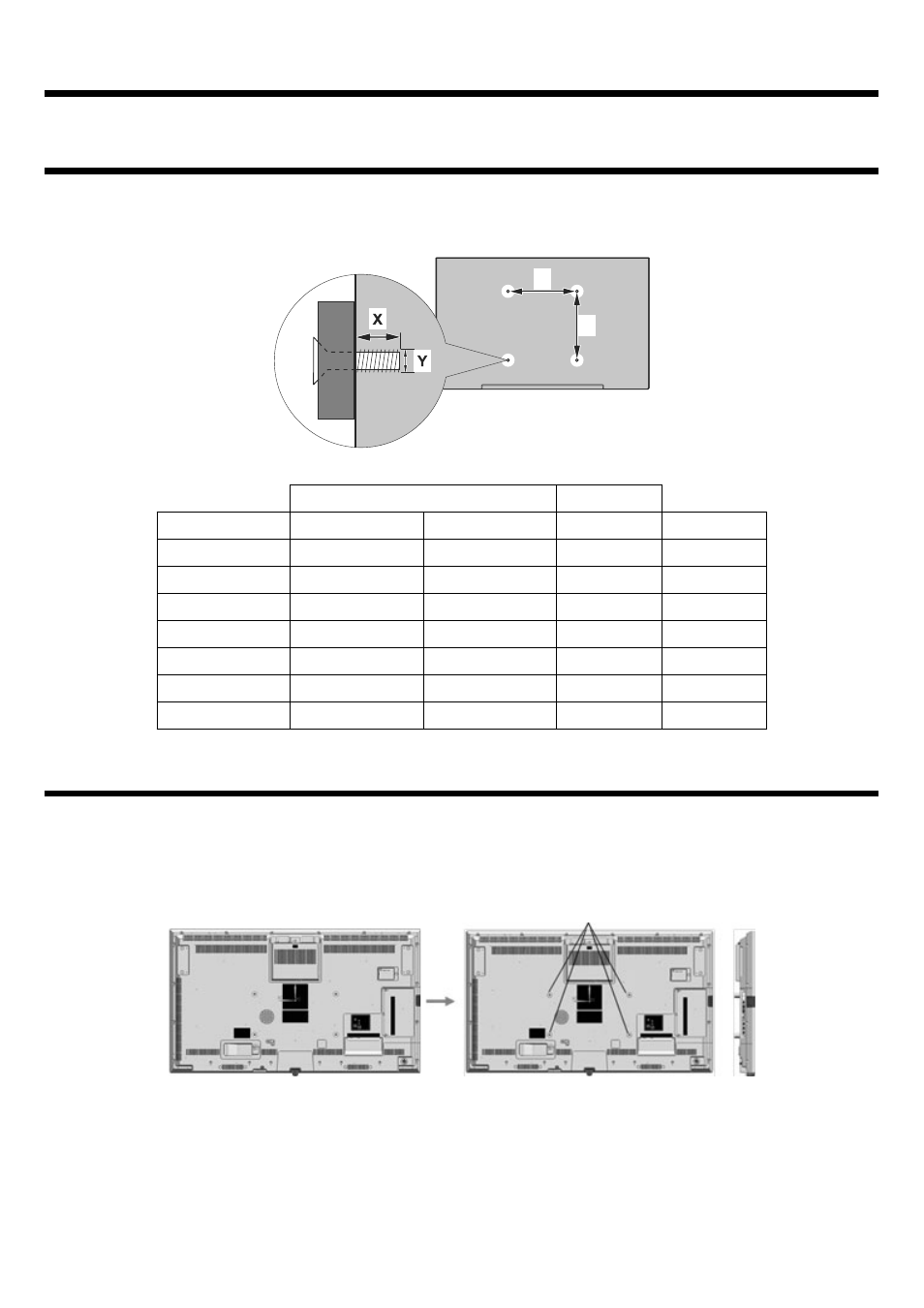

Mounting the display
VESA Wall Mount Measurements
,ŽůĞWĂƩĞƌŶ^ŝnjĞƐ;ŵŵͿ ^ĐƌĞǁ^ŝnjĞƐ
/ŶĐŚ W H ŵĂdž͘;ŵŵͿ dŚƌĞĂĚ;zͿ
98" 800 400 12 M8
86" 600 400 12 M8
75" 600 400 10 M8
65" 400 400 10 M6
55" 400 200 13 M6
49" 200 200 12 M6
43" 200 200 9 M6
Cautions when attaching wall mount and stand
For 55SQE1,49SQE1,43SQE1
There is convex shape near VESA holes on back cover. When attaching wall mount or stand, insert the spacers between them.
Convex Shape Spacer
Note : For detailed dimensions, please refer to the CAD drawings on Panasonic website.
