Introduction
Installation and Site Specifications
Part No. 7B6090 Operator’s Guide
Version 2.0 VITROS ECi/ECiQ Immunodiagnostic System
1-5
Site Drawing

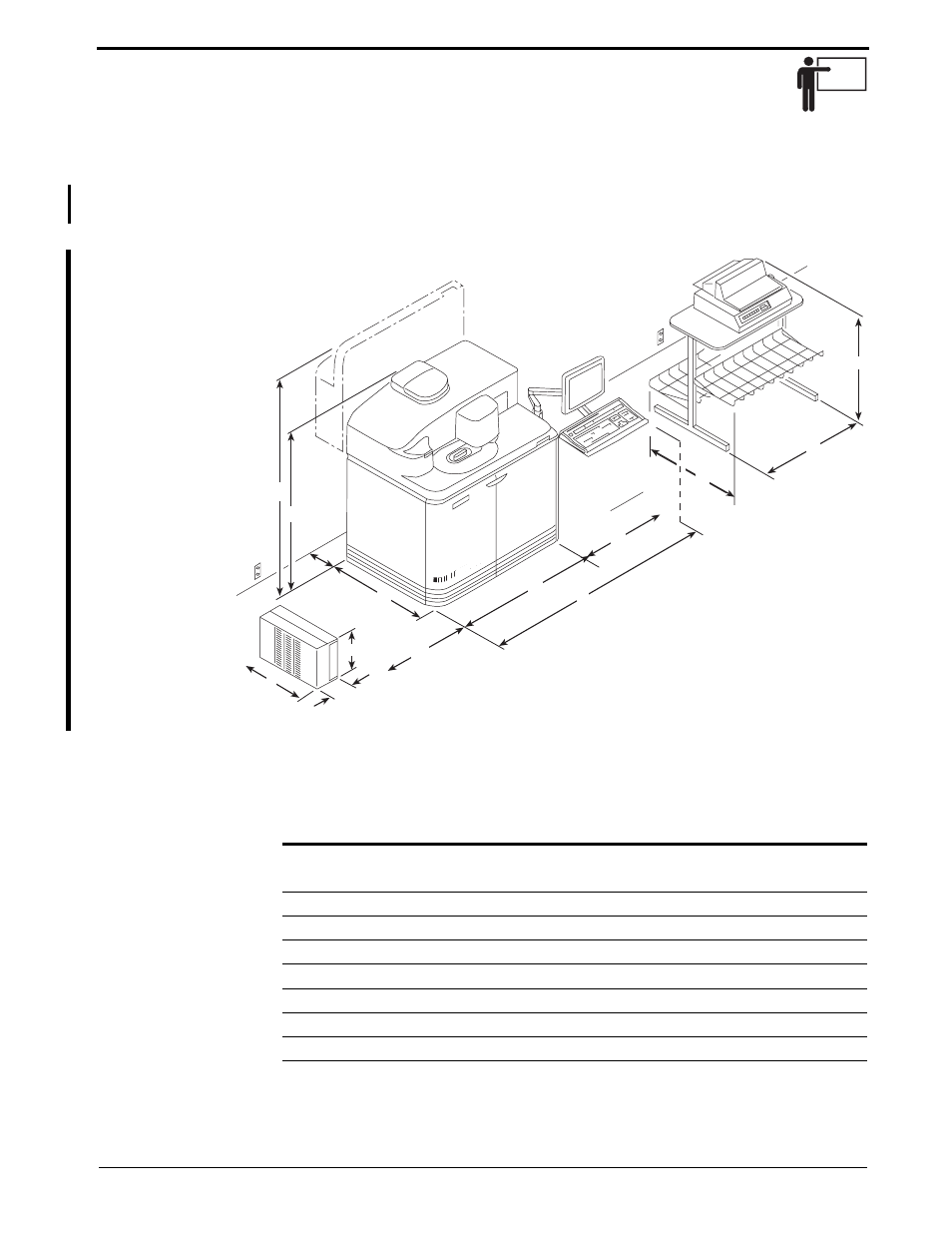

The site drawing in figure 1-1 provides the physical dimensions of the
system. The system weighs approximately 800 pounds (366 kilograms).
Figure 1-1. Physical Dimensions
The system and printer dimensions are described below:
D
C
F
E
I
J
G
A
B
H
L
M
N
K
Reference Dimension
System Dimensions:
A 111.8 cm (44 in.)
B 162.6 cm (64 in.)
C 130.2 cm (51.25 in.)
D 179.1 cm (70.5 in.)
E 73.7 cm (29 in.)
F 61 cm (24 in.)
G 59.7 cm (23.5 in.) - Left side door clearance
H 66 cm (26 in.)
