The D-Lite RX ONE units are updated for operation on 90 – 260V/50 - 60 Hz. Before connecting
for the first time, check to make sure that your Modelling Lamp coincides with the voltage. They
must always be connected to an earthed ( grounded) mains supply.
D-Lite RX ONE units have a
bayonet mount and locking ring fitting, for fixing all Elinchrom and Prolinca accessories.
The Reflector Bayonet supports Reflectors and Softboxes up to 1.5 kg, e.g. Rotalux 100 x 100 cm .
Mount the unit securely to a suitable stand or support.
Remove the black protective cover. DO NOT operate the unit without first removing the black
protective cover.
1.Check that the modelling lamp voltage is correct.
2.Check that the mains switch (2) is in the position OFF ("O" position).
3.Insert the mains cable into the MAINS INLET (1) and connect this to a FULLY EARTHED OUTLET
4.Using the mains SWITCH (2), switch the unit ON ("I" position).
6.Select the power with the touch pad (10)
Operating instructions D-Lite RX ONE

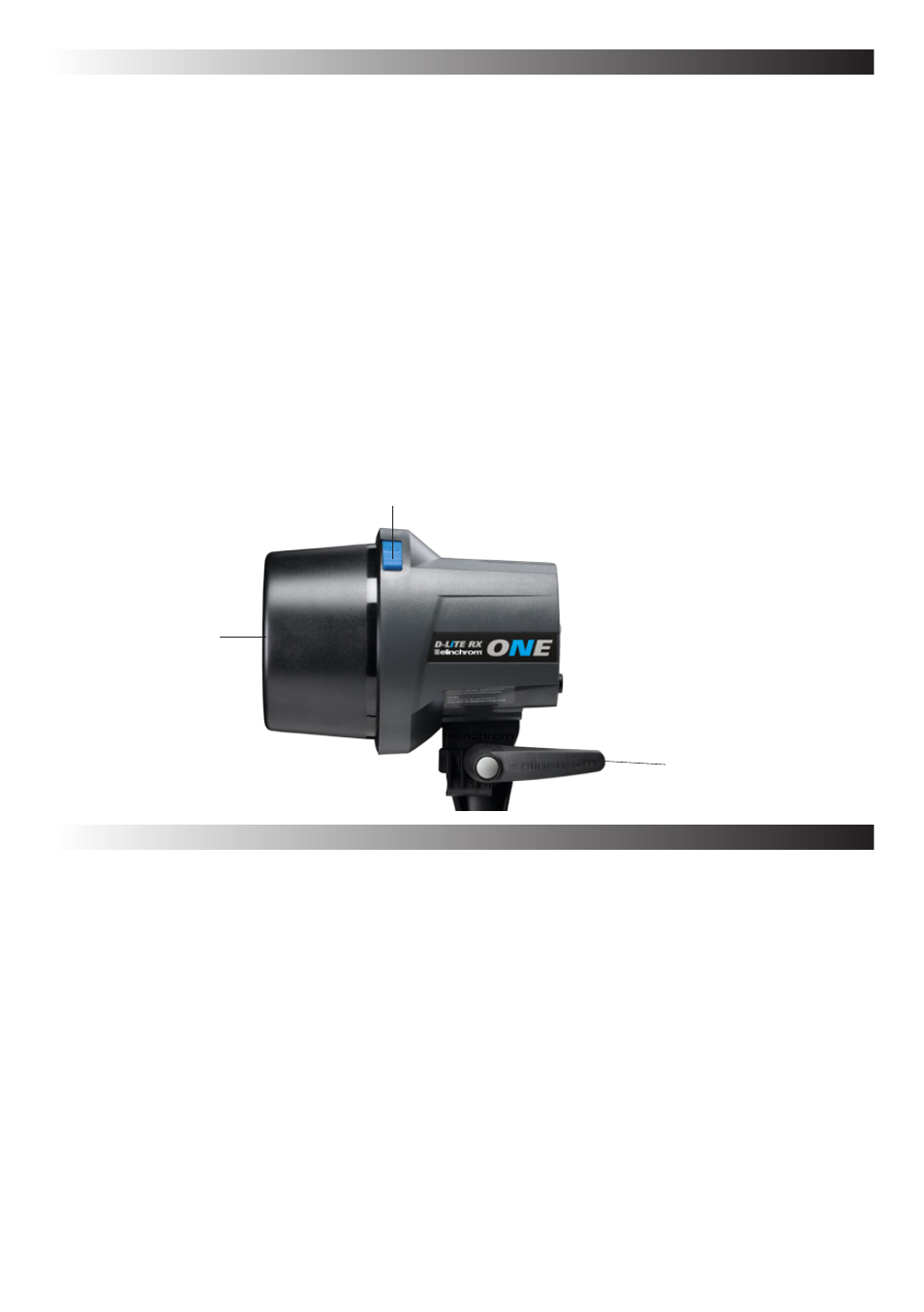

(A) Locking ring
(C) Tilthead with locking
umbrella holder
(B) Protective cover
(26124)
Before you start ! English
Switch and fuse
Mains supply
Fuse for modelling light
Use only the Elinchrom mains cord. Switch off the unit before the mains cord is connected to
the mains plug.
Fast type 5 x 20mm, 2.5AT
Switch off the unit and replace the blown fuse with a new one of the correct value.
The fastblow fuse will protect the triac of the modelling lamp circuit, the lamp and therefore
the flash tube.
