11
Fig. 17
Fig. 18
DUST PORT

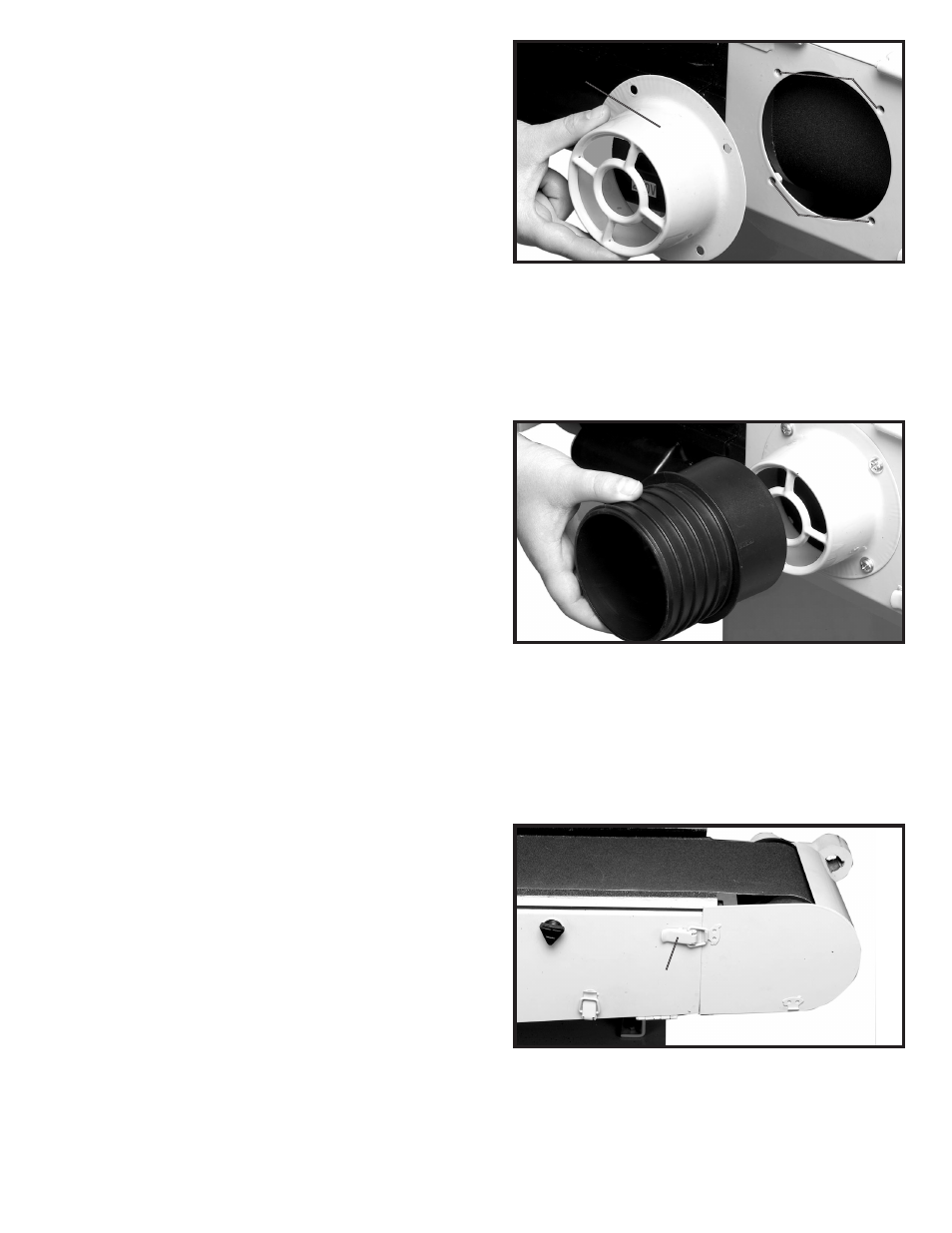

1. Align the four holes on the dust port (A) Fig. 17, with
the four tapped holes (B) on the side of the belt sander.
2. Place a 17/64" flat washer on a 1/4-20x3/8" round
head screw, insert the screw through the hole in the dust
port, and thread the screw into the tapped hole on the
side of the belt sander. Repeat this process for the three
remaining holes in the dust port and belt sander. Tighten
all four screws securely.
3. NOTE: If this machine is to be used with a dust
collection system, slide the 4" O.D. hose connector
over the dust port as shown in Fig. 18.
Fig. 19
SANDING SPINDLE
1. Release latch lever (A) Fig. 19 on the belt guard.
A
A B
B
