4

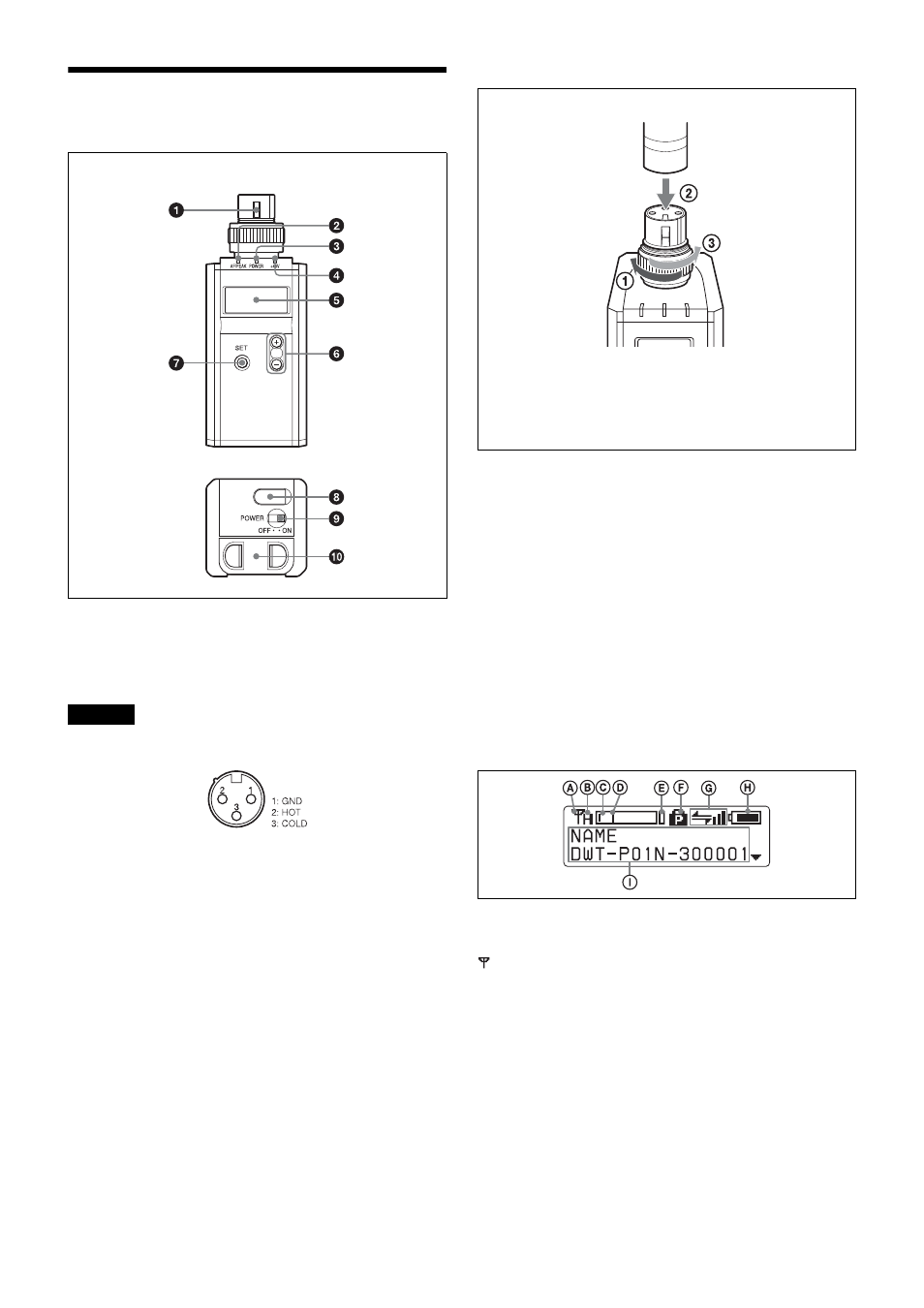

Parts Identification
a Audio input connector (XLR-3-11C)
Connects a microphone with an XLR-3-12C-type output
connector or an audio cable with an XLR-3-12C-type
connector.
Be sure that the transmitter is turned off before connecting
a microphone or cable to the transmitter.
To connect a microphone or a cable
b AF (audio input level) /PEAK indicator
Lights up green when the signal input is stronger than the
reference level.
Lights up red when the signal input is 3 dB below the level
at which distortion begins.
c POWER indicator
Lights up green when the transmitter is turned on. When
the battery is exhausted, the indicator starts flashing.
d +48V indicator
Lights up when INPUT LEVEL is set to MIC and +48 V
power is being supplied to a connected microphone or
other device.
e Display section
A RF (radio frequency) transmission indication
Indicates the current transmission status.
: Currently transmitting
— : Transmission stopped
B RF (radio frequency) transmission power
indication
Indicates the current transmission power setting. You can
change the setting with the RF POWER function.
H: Transmitting at 50 mW
M: Transmitting at 10 mW
L: Transmitting at 1 mW
C Audio input level meter
Indicates the input signal level.
Caution
Front
Bottom
Microphone or a cable (optional)
Turn the connector ring clockwise ( 1 )
and insert the microphone or cable
connector into the audio input connector
until it is fully engaged (
2 ). Then turn the
connector ring counterclockwise to
secure the latch (
3 ).
