Installation
Connecting to Video Equipment
SD
KB3BC

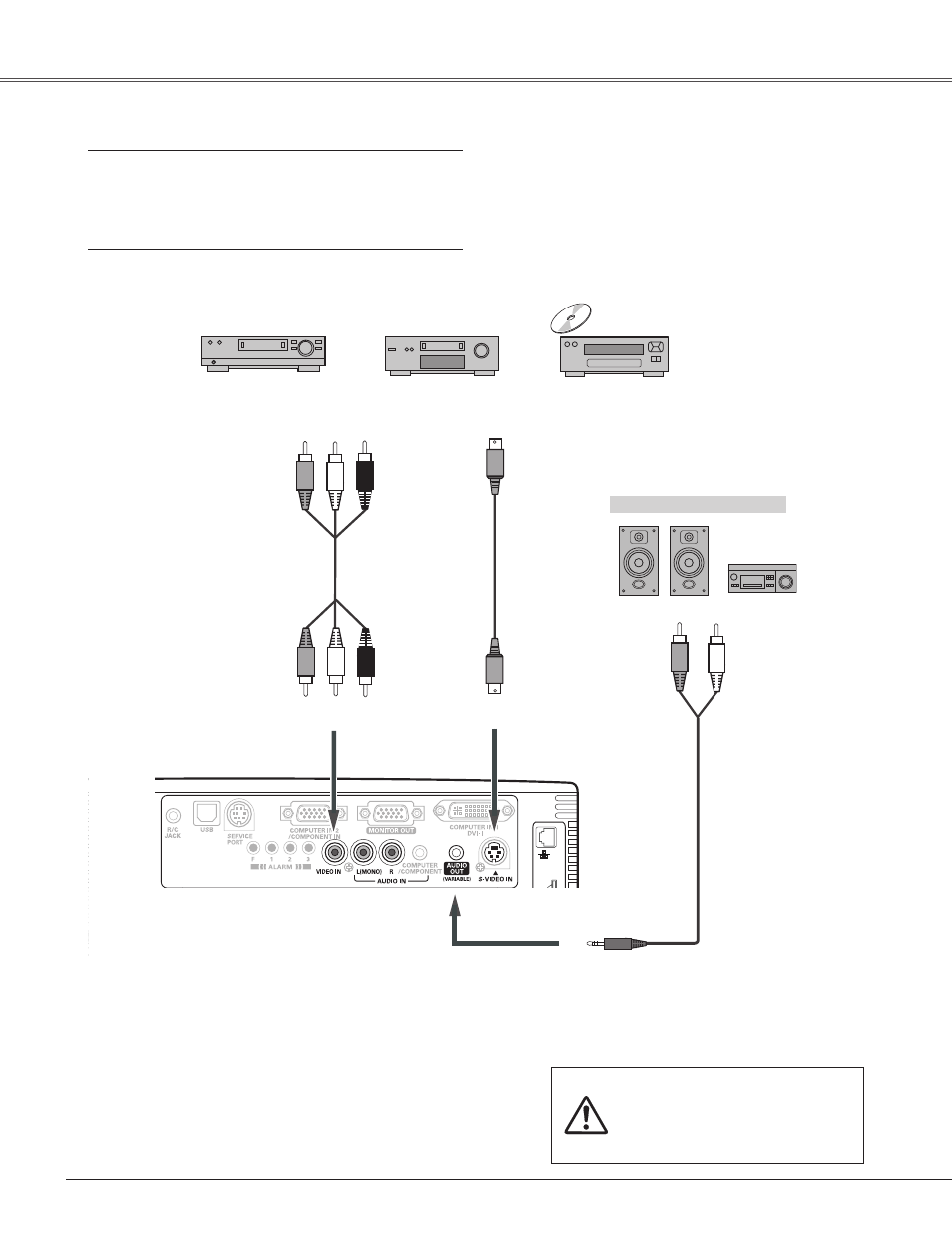

Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable
(Cables are not supplied with the projector. )
External Audio Equipment
Audio cable
(stereo)
VIDEO S-VIDEO
S-video cable Video and audio cable
Composite Video and Audio Output S-video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L) (Video)
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
✔ Notes:
• When the AUDIO OUT is plugged-in, the projector's
built-in speaker is not available.
• The S-VIDEO jack connection overrides the VIDEO
jack connection when selecting AUTO in the Input Menu
(p.40).
