Positioning the Projector

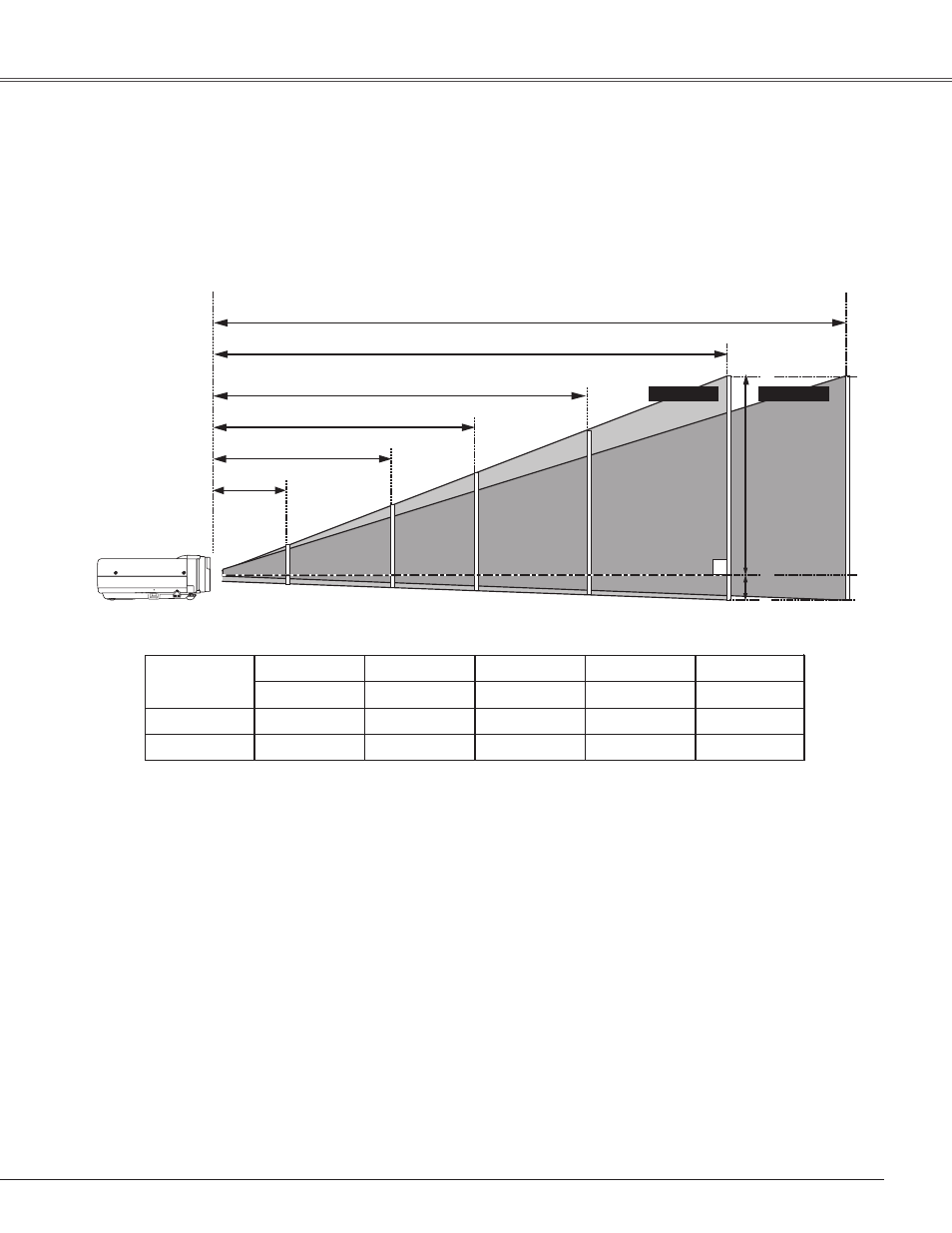

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
✔ Notes:
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient
lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
Installation
SQ@
A
B
100"
150"
200"
189
127
95
63
300"(wide)
40"
300"(tele )
39.7'(12.1m)
25.2'(7.7m)
16.7'(5.1m)
12.5'(3.8m)
Max. Zoom Min. Zoom
A : B = 49 : 1
(Inch Diagonal)
8.2'(2.5m)
(Center)
3.3'(1.0m)
Screen Size
(W x H) mm
16 : 10 aspect ratio
Zoom (min)
40”
Zoom (max)
862 x 538
5.2'(1.6m)
3.3'(1.0m)
100”
2154 x 1346
13.1'(4.0m)
8.2'(2.5m)
150”
3231 x 2019
19.7'(6.0m)
12.5'(3.8m)
200”
4308 x 2692
26.86(8.1m)
16.7'(5.1m)
300”
6462 x 4039
39.7'(12.1m)
25.2'(7.7m)
