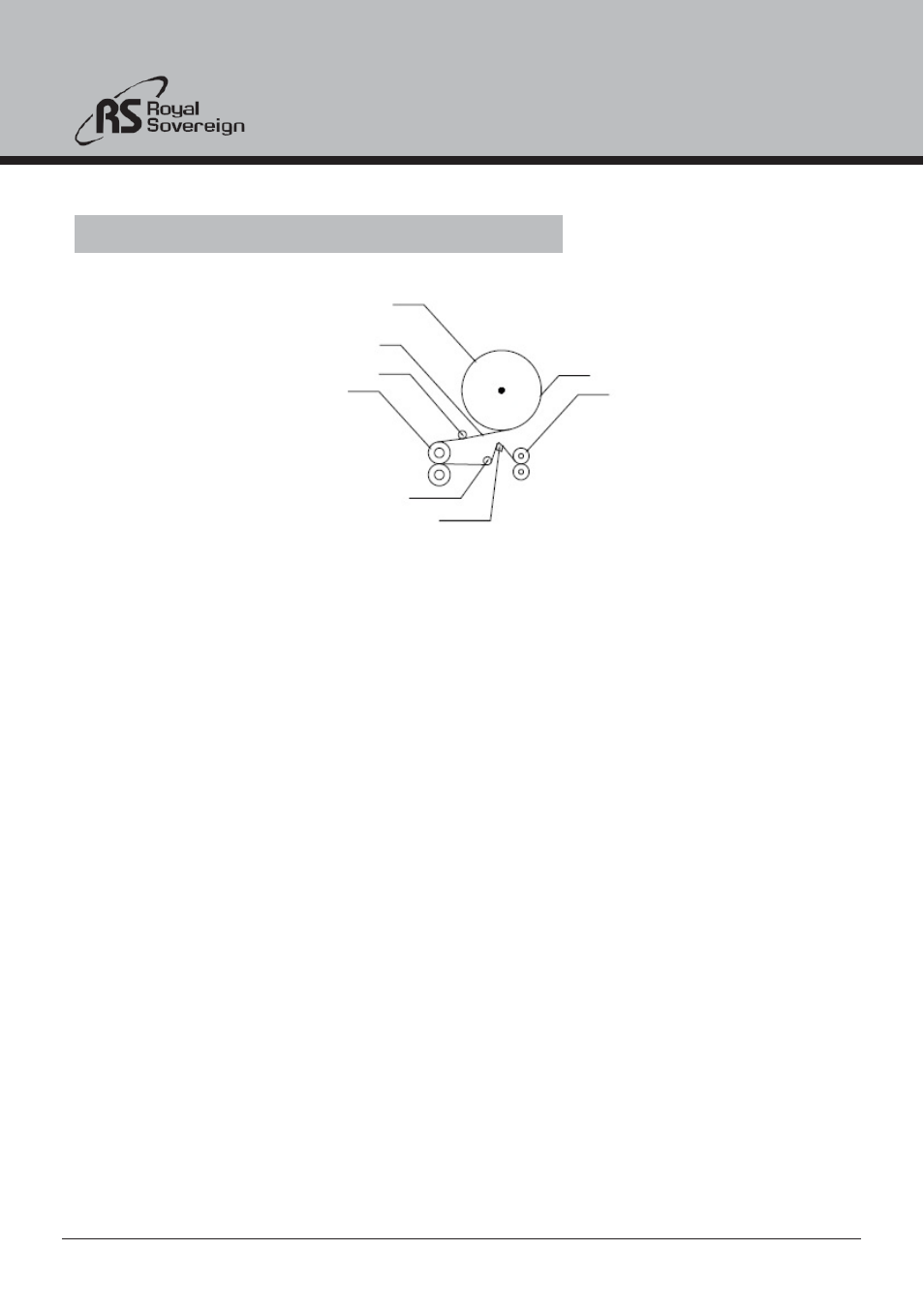

6.2. HOT FILM SINGLE SIDED LAMINATING

ROLL FILM

ADHESIVE SIDE

IDLE BAR

LAMINATING HOT ROLLERS

GLOSSY SIDE

PULL ROLLERS

IDLE BAR

SHAFT DE-CURLING BAR

1. Turn the power switch on("I" position). Power switch is located in the rear of the unit on the left side.

2. Follow the steps in the "Loading Film" procedure by loading the upper shaft with OPP Film.

3. Set the temperature and speed as shown as the recommended in page 13.

4. Center the OPP film.

5. Thread the film under the Upper Idle Bar and underneath the Safety Cover until the film rests on

the upper hot roller.

6. Pull a sheet of A3 paper into the laminating roller and pass under the idle-bar

and over the shaft-decurling bar. Make sure the idle-bar being in the lower location while laminating.

7. Link the paper to the film.

8. Adjust the nip setting to "Laminating" mode.

9. Press the run button and adjust the supply roll tension knobs by rotating clockwise or counterclockwise.

Turn it until the supply roll films have some resistance(the tension varies depending on the film thickness:

the thicker the film the more tensions is required) (Picture 6).

1 0 . St o p t h e l a m i n at o r wh e n al l of t h e laminated i t e m s h a v e c o mp l et e l y e xi t e d t h e

r e a r of t h e machine.
