Environment

Operating

Temperature: -25 ~ 75 Degree C
Relative Humidity: 0 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 Degree C
Relative Humidity: 5 ~ 95% (non-condensing)

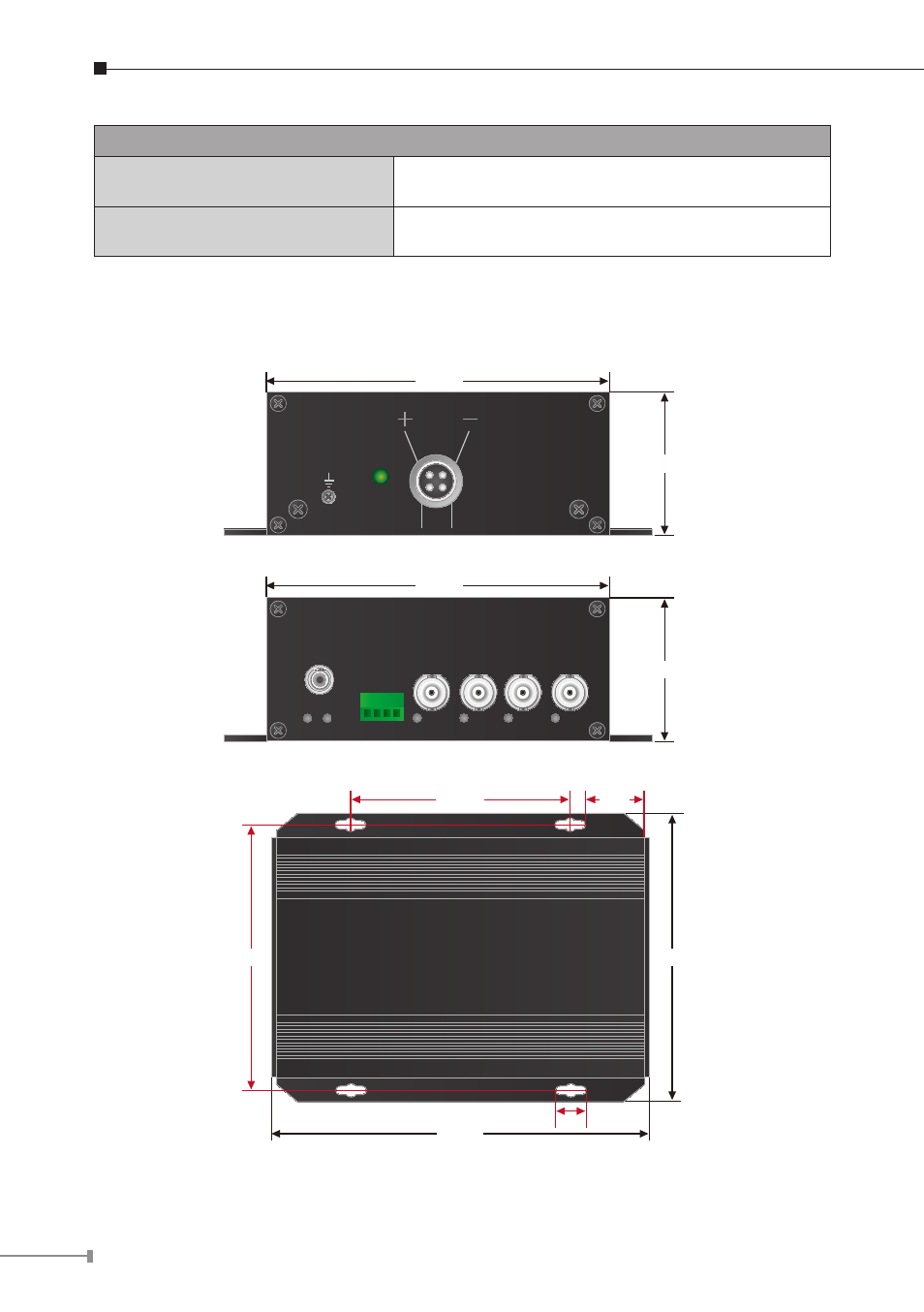

1.6 Dimension of Installing

POWER

GND

V1

LNK

PWR

OPT

P1

V2

V3

V4

110mm

47mm

47mm

110mm

133mm

174mm

27mm

102mm

14mm

122mm
