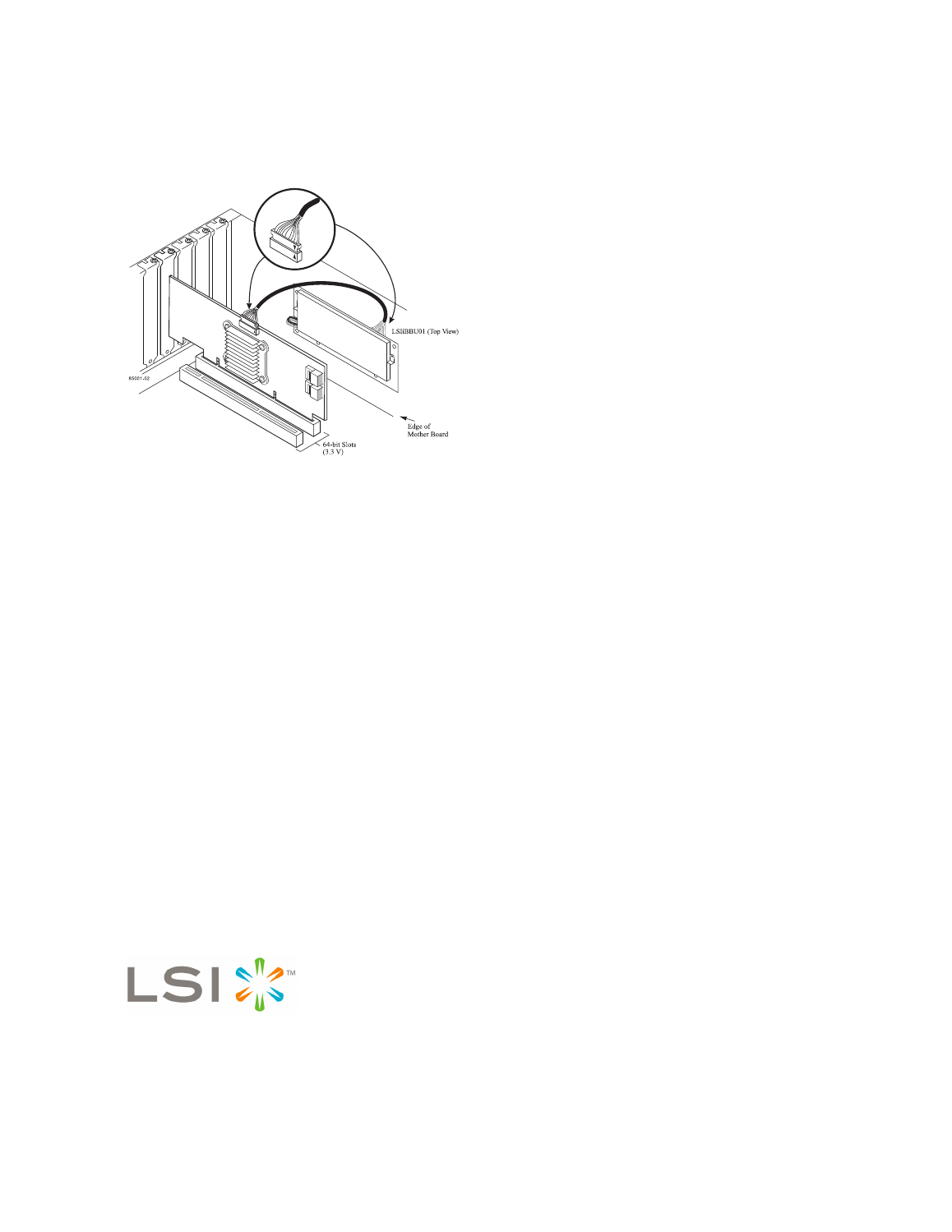

Figure 4 Connecting the LSIiBBU01 on the
MegaRAID SATA 300 Controller
Step 2
Replace the computer cover and reattach the
power cord(s).
L S I i B B U 0 1 H a r d w a r e S p e c i f i c a t i o n s
• Supports DDR1 memory technology.
• Can be used with models 300-8X and 300-4X of the
MegaRAID SATA 300 controller.
• Battery capacity is 4.22 Wh.
• Reference retention time is 72 hours for 128 MB standard
cache on the MegaRAID SATA 300 controller, using
256Mb x 16 DDR1 memory chips.
• LSI recommends that you replace the LSIiBBU01 after
one year of service.
T E C H N I C A L S U P P O R T
For assistance in installing, configuring, or running your SAS
RAID controller, contact LSI Customer and Technical
Support.
Phone Support:
1-800-633-4545 (North America)
Web Site:
